Correa A-20/44 Milling Machine

Show in original language

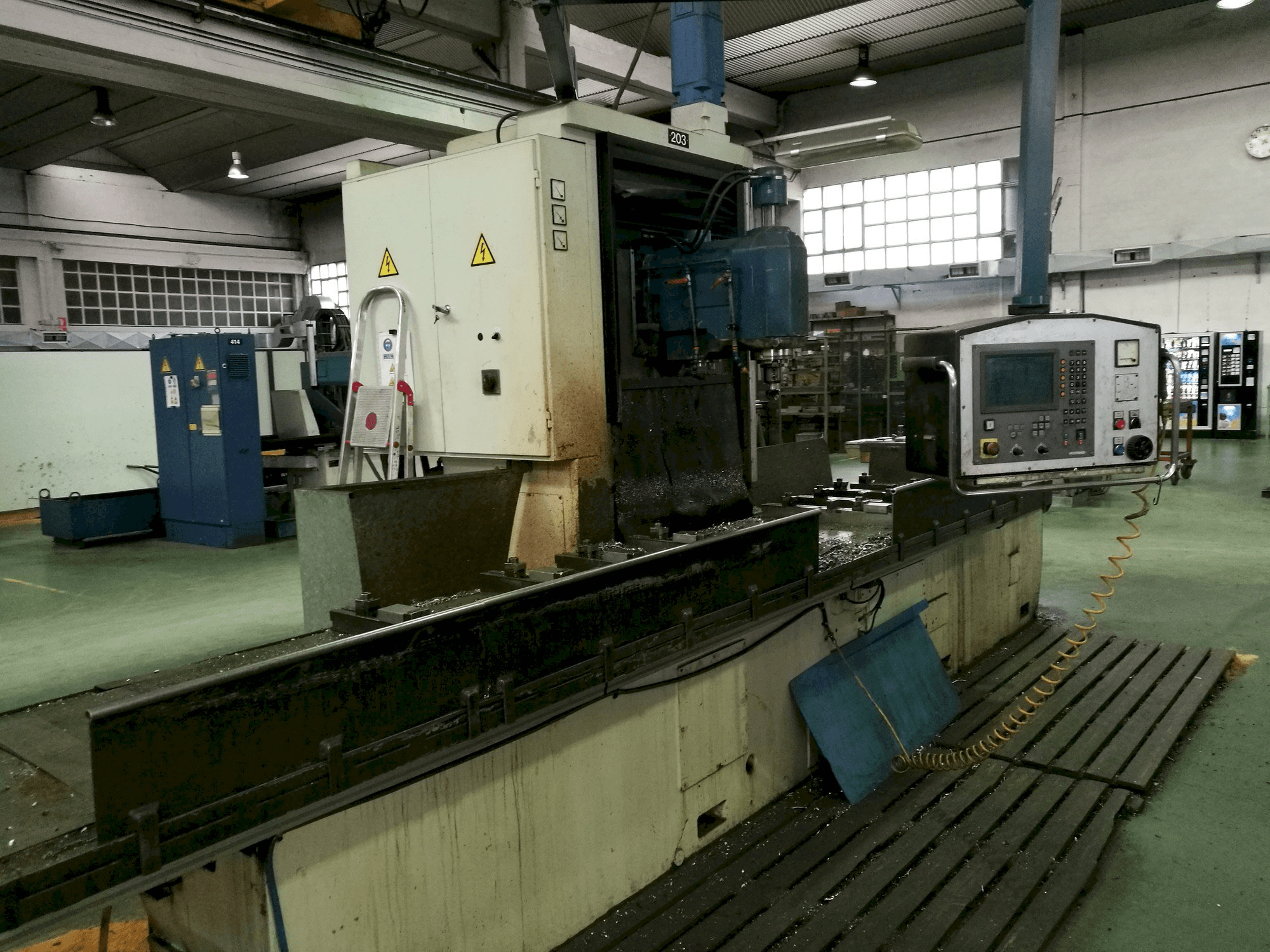

This Correa A-20/44 Milling Machine was manufactured in Spain in 1983 and has been operative for 60000 hours since then. Equipped with a Heidenhain 310 Control unit, this double spindled machine can operate with a speed up to 2000 rpm. It stands out for its wide range of movements and a well maintained status.

Overview

brand: Correa
year: 1983
MODEL: A-20/44
production hours: 60000
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa A-20/44

General Data

Measurements width: 5000 mm
Measurements depth: 2200 mm
Measurements height: 2750 mm
Machine weight: 12500 kg

Control Unit

Model: 310
CNC main language: spanish
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 40/2000 rpm 1/MIN

Movement

X-AXIS Movement: 4100 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece x: 4100 mm
Workpiece y: 1000 mm
Workpiece z: 1000 mm

Table

Outer length: 4400 mm
Outer width: 800 mm
Number of tslots: 7
Distance between: 122 mm

Tools

Type of tool holder: ISO 50

Media

Main electronic connection: 10.5 V

Additional Information

Machine history

End product: Blades

Machine Benefits

Technical Machine Benefits:
- - 2 spindles
- - Wide range of movements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
