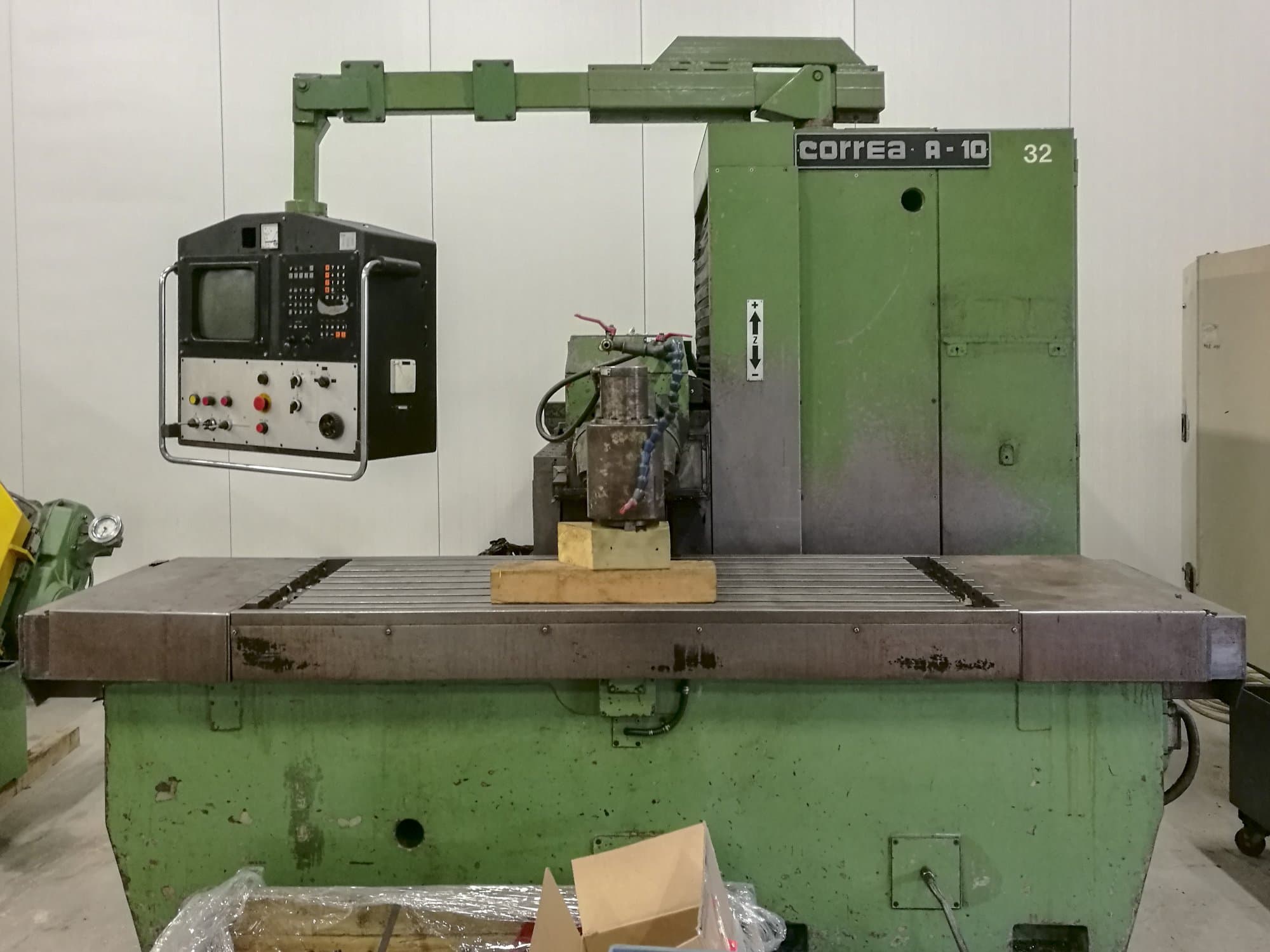

➤ Used Correa A-10 | Milling Machine For Sale

Show in original language

This Correa A-10 Milling Machine was manufactured in 1988 in Spain and has been productive for approximately 25000 hours since then. This machine comes in a good condition considering its age and includes an 10x tool holder as additional equipment.

Overview

brand: Correa
year: 1988
MODEL: A-10
production hours: 25000
application type: Milling
Location: Netherlands
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa A-10

General Data

Measurements width: 3870 mm
Measurements depth: 2177 mm
Measurements height: 2629 mm
Machine weight: 6800 kg

Control Unit

Brand: HEIDENHAIN
Model: 155

Main drive

Number of spindles: 1
Spindle speed range: 3150 1/min

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 630 mm

Workpiece

Workpiece weight: 3000 kg

Table

Outer length: 1700 mm
Outer width: 630 mm

Tools

Max tool diameter: 75 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 50 kVA

Additional equipment

- 10x Toolholder ISO50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
