- Correa A-10 Milling Machine

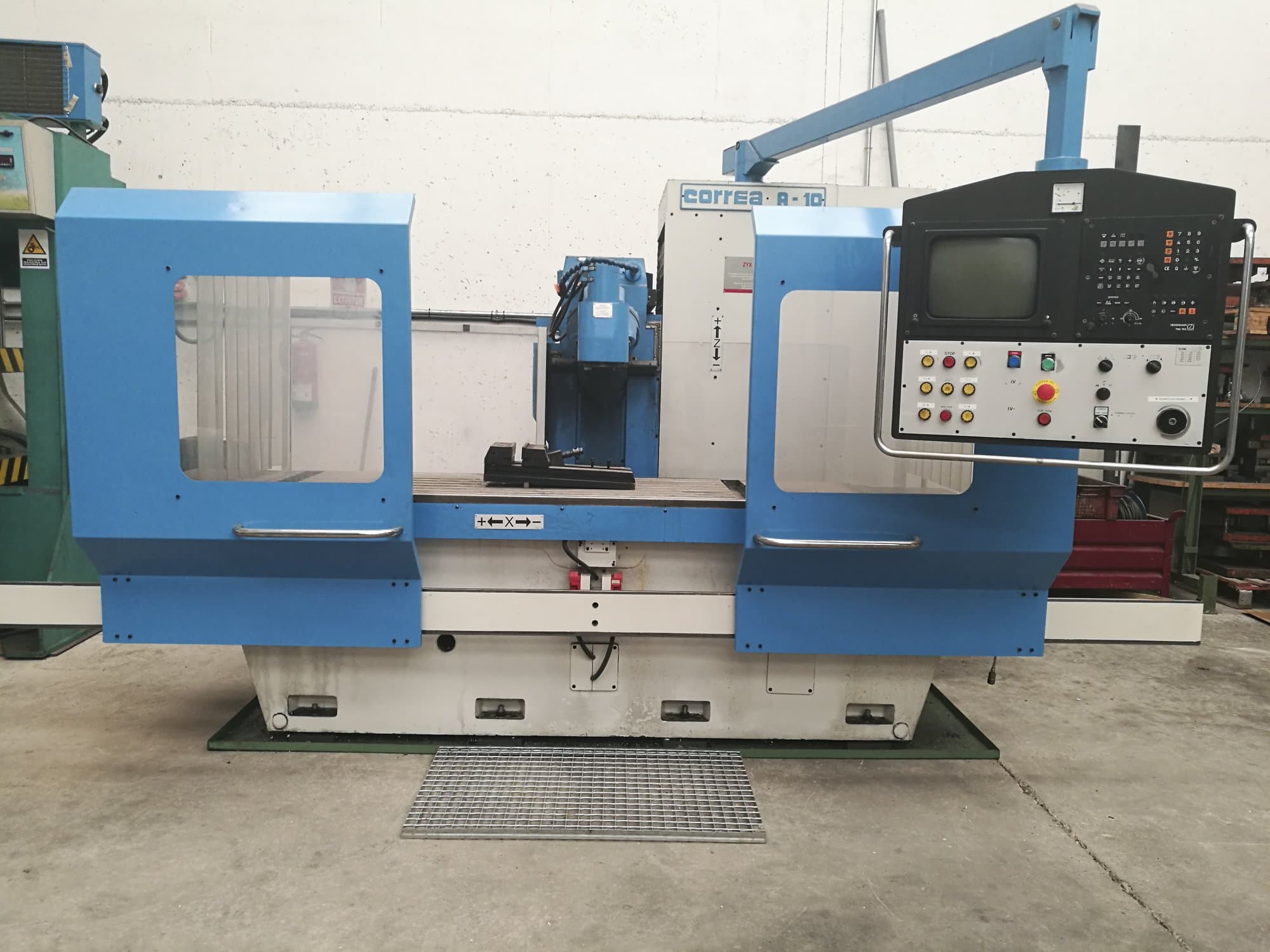

This Correa A-10 Milling Machine was manufactured in 1987, but received a retrofitting recently and has been productive for only 50 hours since then. During its retrofitting, this robust machine has received new guards all around and a new security certificate as well, and its tempered guides, for which this machine already stood out, have been hardened as well. As additional equipment, the Correa includes tools, cones and a gag.
Overview
- brand: Correa
- year: 1987
- MODEL: A-10
- production hours: 50
- application type: Milling
- Location: Spain
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Correa A-10
General Data
- Measurements width: 3886 mm
- Measurements depth: 2485 mm
- Measurements height: 2175 mm
- Machine weight: 6500 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 155
Movement
- X-AXIS Movement: 1300 mm
- X-AXIS Working Feed: 5000 mm/min
- X-AXIS Rapid traverse: 8000 mm/min
- Y-AXIS Movement: 630 mm
- Y-AXIS Working Feed: 5000 mm/min
- Y-AXIS Rapid traverse: 8000 mm/min
- Z-AXIS Movement: 630 mm
Workpiece
- Workpiece weight: 3000 kg
Table
- Outer length: 1500 mm
- Outer width: 630 mm
- TSlots size: 18 mm
- Number of tslots: 8
- Distance between: 71 mm
Additional equipment
- - Tools, gag and cones
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
