CME F4 CMC Milling Machine

Show in original language

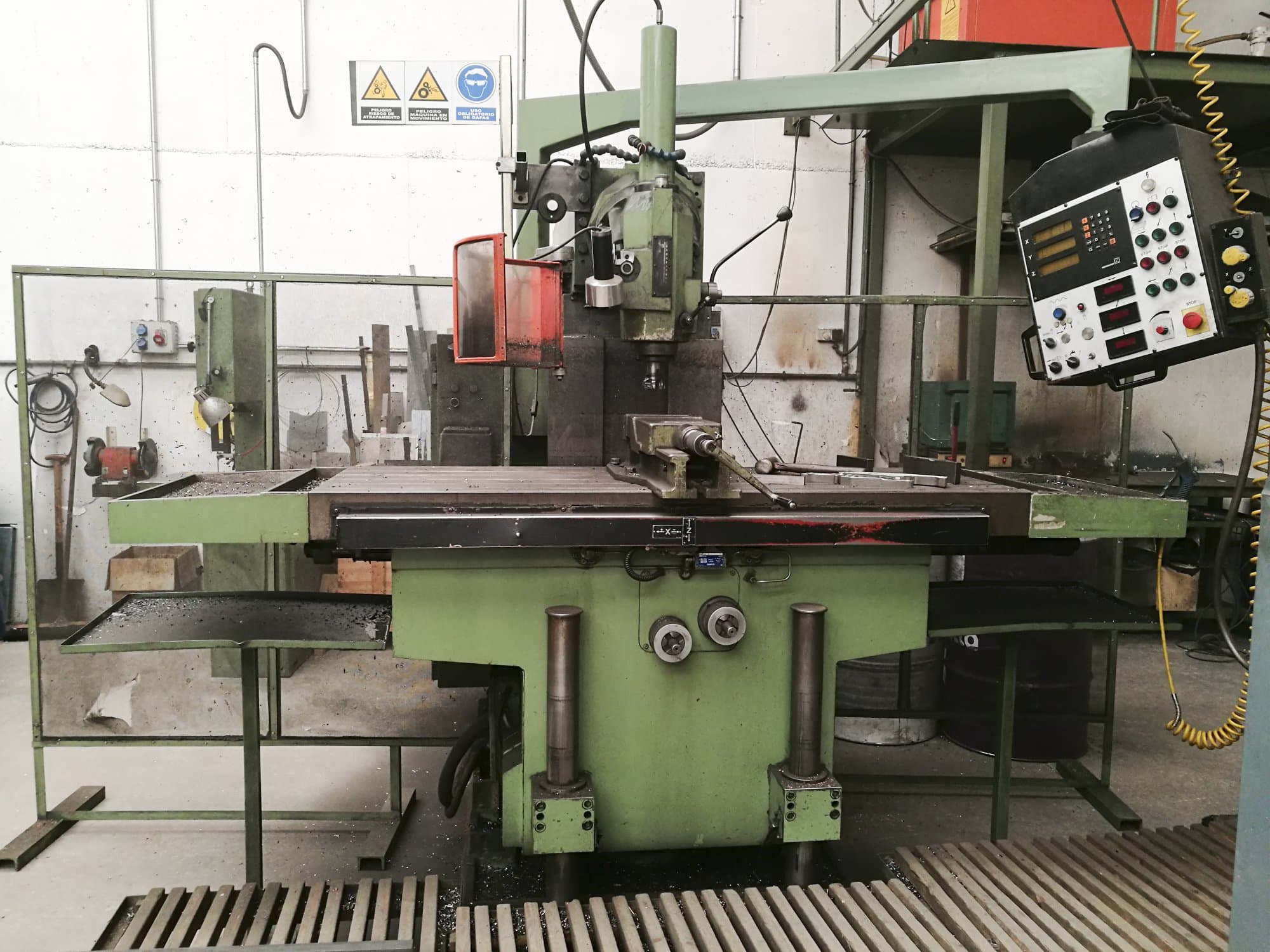

This CME F4 CMC Milling Machine was manufactured in 1989 and has been running for about 20000 production hours ever since. Operated through a HEIDENHAIN control unit, this robust machine includes tools, cones and a gag as additional equipment.

Overview

brand: CME
year: 1989
MODEL: F4 CMC
production hours: 20000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CME F4 CMC

General Data

Measurements width: 2540 mm
Measurements depth: 2930 mm
Measurements height: 2500 mm
Machine weight: 5500 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 1800 1/min
Spindle motor power: 9 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 1200 mm
X-AXIS Working Feed: 4000 mm/min
X-AXIS Accuracy: 6000 mm/min
Y-AXIS Movement: 700 mm
Y-AXIS Working Feed: 4000 mm/min
Y-AXIS Accuracy: 6000 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Working Feed: 2000 mm/min
Z-AXIS Accuracy: 3000 mm/min

Table

Outer length: 1700 mm
Outer width: 600 mm
Number of tslots: 6
Distance between: 100 mm

Additional equipment

- Tools, gag and cones

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
