CMA TRD28CNC 4500

Show in original language

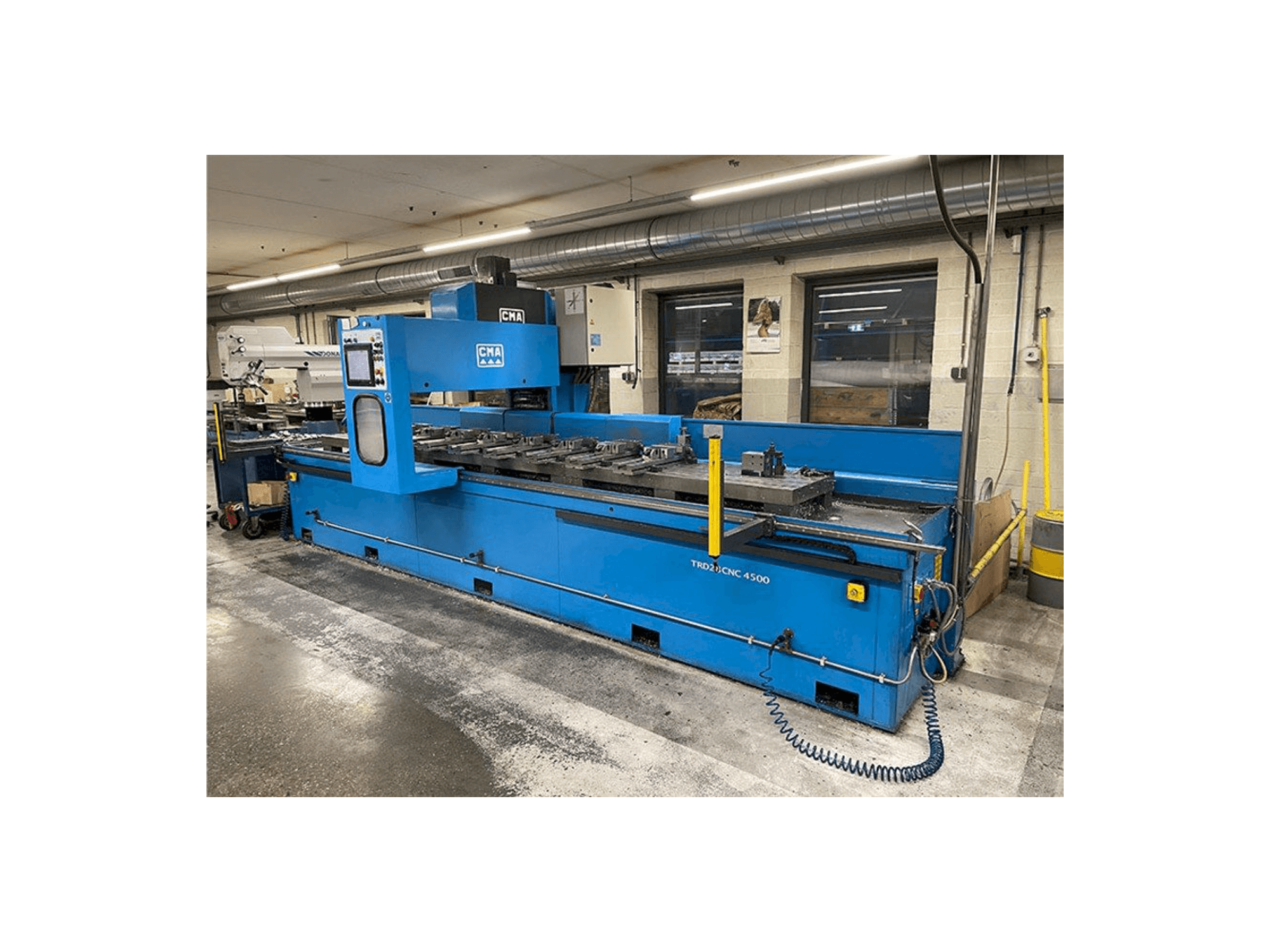

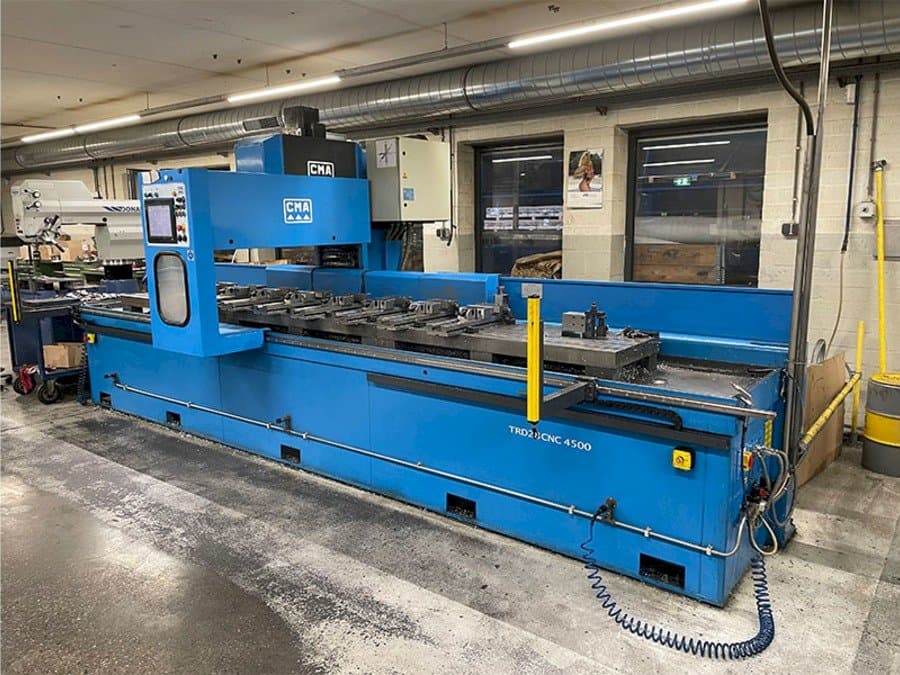

This CMA TRD28CNC 4500 Drilling Machine was made in Spain in the year 2014. It has a record of 7000 production hours. This machine is equipped with a Omron control unit with 12 " touch screen. It works through a multi-clamping system ms3-100. This machine presents a protective cover around drilling unit and an automatic touch probe cycle.

Overview

brand: CMA
year: 2014
MODEL: TRD28CNC 4500
production hours: 7000
application type: Other Machine Tools
Location: Netherlands
machine type: Drilling Machine (Metal)
availability: Sold

Technical Information - CMA TRD28CNC 4500

General Data

Measurements width: 2800 MM
Measurements depth: 6000 MM
Measurements height: 2000 MM
Machine weight: 4800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece dimensions length 4500 mm x 580 mm
- - Xyz controlled incl 3 axis interpolation
- - Protective cover around drilling unit
- - Automatic tool changer 10pcs
- - Security fencing; flowdrilling; light milling
- - Rj45 ethernet
- - Automatic touch probe cycle / touch probe.
- - Cooling through spindle
- - Microdosing system ; multi-clamping system ms3-100
- - Oil spray system hcs250

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
