Cincinnati - Milacron Sabre 1250LT-MIL-CIN-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

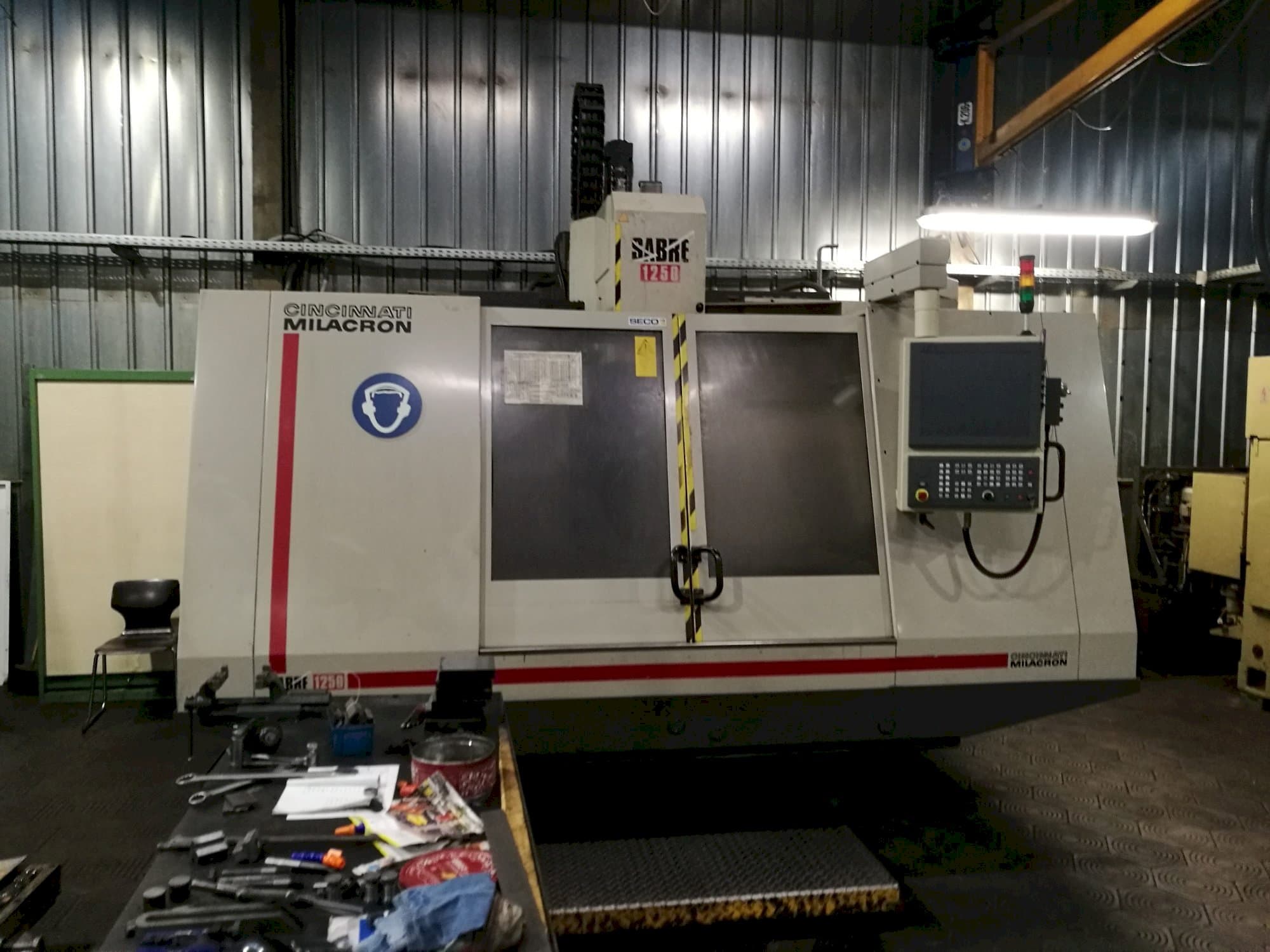

Cincinnati Milacron Sabre 1250 Vertical Machining Center

Show in original language

This Cincinnati Milacron Sabre 1250 Vertical Machining Center was produced in 1996 in the United Kingdom and has a production history of 15000 hours since then. Operated through a NCT / ACRANATIC 2100E Control unit, this machine can work with a spindle speed up to 1000 rpm. A chip conveyor is included additionally.

Overview

brand: Cincinnati
year: 1996
MODEL: Milacron Sabre 1250
production hours: 15000
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Cincinnati Milacron Sabre 1250

General Data

Measurements width: 4618 mm
Measurements depth: 3700 mm
Measurements height: 3600 mm
Machine weight: 8800 kg

Control Unit

CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 1000 rpm 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 762 mm
Z-AXIS Movement: 820 mm

Table

Outer length: 1370 mm
Outer width: 765 mm
Number of tslots: 21

Tools

Slots in storage: 21
Max weight: 6.8 kg
Max tool diameter: 80 / 160 mm
Max tool length: 385 mm

Media

Main electronic connection: 110 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- chip conveyor

Additional Information

Machine history

Material type: Steel, aluminium

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
