Chiron Mill-800 FA Machining Center

Show in original language

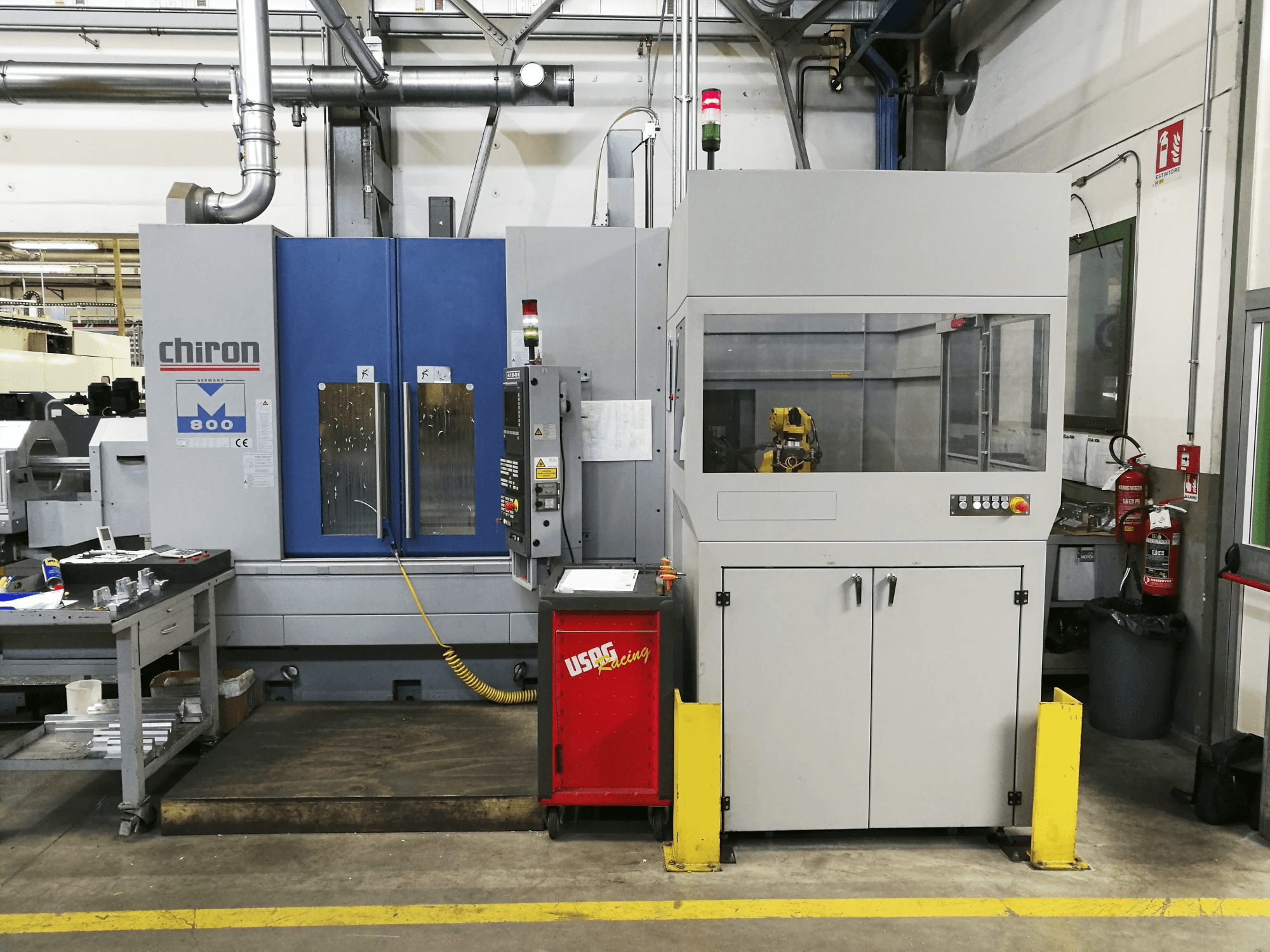

This Chiron Mill-800 FA Machining Center was manufactured in the year 2012 in Germany and has a production history of 8593 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the equipment benefits from a working table of 500 mm of outer width. As additional equipment, this machine includes a hold and locking device and a Fanuc robot for positioning and unloading of the pieces.

Overview

brand: CHIRON
year: 2012
MODEL: Mill-800 FA
production hours: 8593
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON Mill-800 FA

General Data

Measurements width: 8325 mm
Measurements depth: 6875 mm
Measurements height: 3171 mm
Machine weight: 9100 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Spindle speed range: 20-12000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 480 mm
Z-AXIS Movement: 630 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer width: 500 mm

Tools

Max weight: 4 kg
Max tool diameter: 75 mm
Max tool length: 320 mm

Media

Main electronic connection: 400 V / 750-60 Hz
Power consumption: 66 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Bar holding device with locking system and vise
- Fanuc unload and positioning robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
