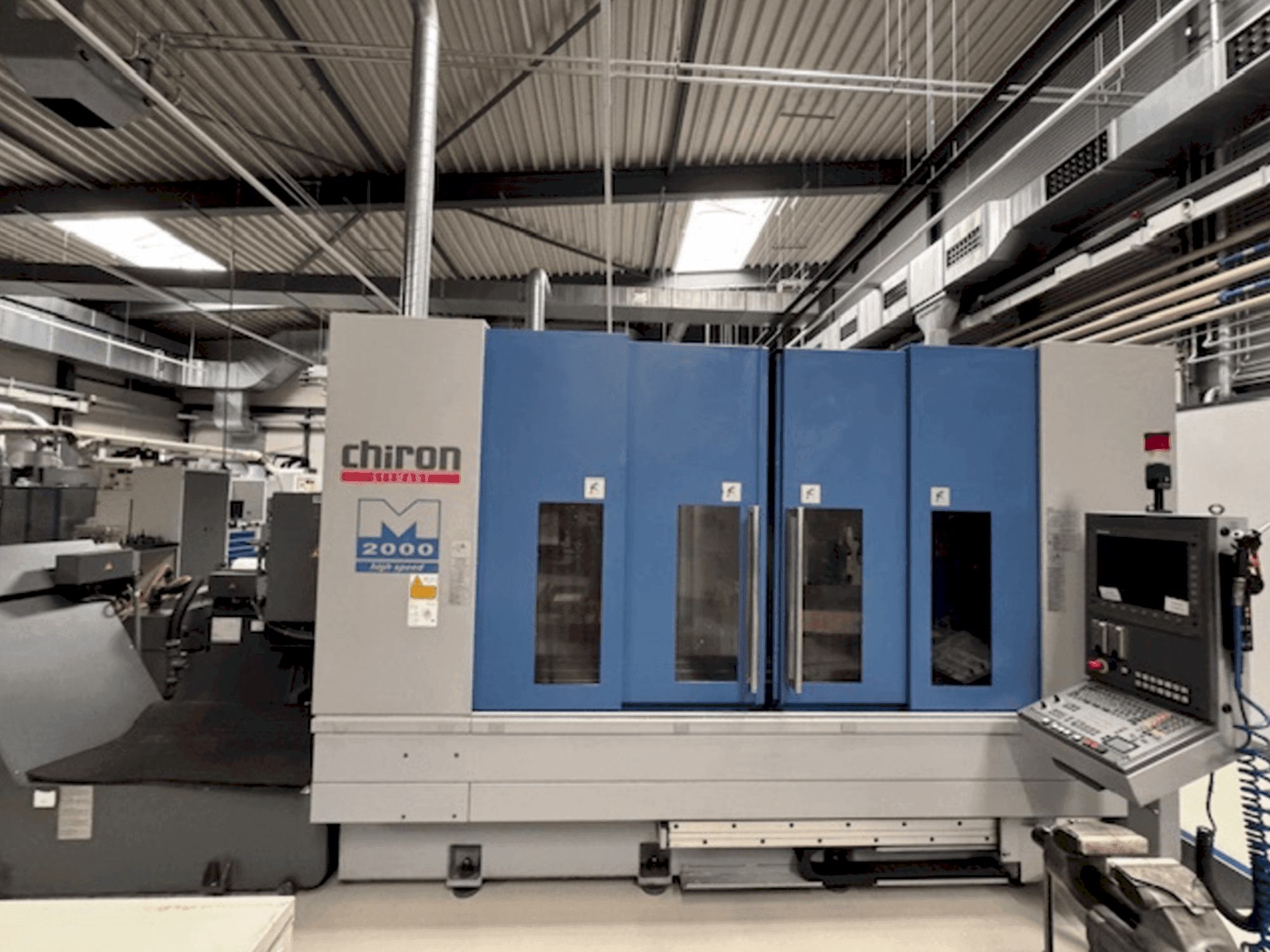

➤ Used CHIRON Mill 2000 | Vertical Machining Centre

Show in original language

This 3-axis CHIRON Mill 2000 was manufactured in 2007. It features a Heidenhain iTNC 530 control, a spindle speed of 12,000 rpm, and a tool capacity of 40 with a maximum tool length of 320mm. The machine includes a chip conveyor, Knoll cooling systems, and a manual control bar. Note: the spindle is broken. For more information about this vertical machining center, please reach out to us.

Overview

brand: CHIRON
year: 2007
MODEL: Mill 2000
production hours: 14530
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - CHIRON Mill 2000

General Data

Machine weight: 10000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 RPM 1/MIN
Spindle motor power: 7.5 / 22.5 kW
Tool taper: HSK-A 63
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 550 mm

Tools

Max tool diameter: 75 mm
Max tool length: 320 mm

Media

Chip conveyor: Yes

Additional equipment

- Knoll PF50 / FKA 900 cooling lubricant system
- Drill breakage control (Blum)
- Operating instructions
- Circuit diagram
- Manual control bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse: 60 m/min, distance measuring system: glass scales xyz
- - Tool diameter with free secondary positions: 160 mm
- - Spray gun: 2x
- - Important: broken spindle

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
