- ➤ Used CHIRON FZ 15KS five axis high speed | Machining

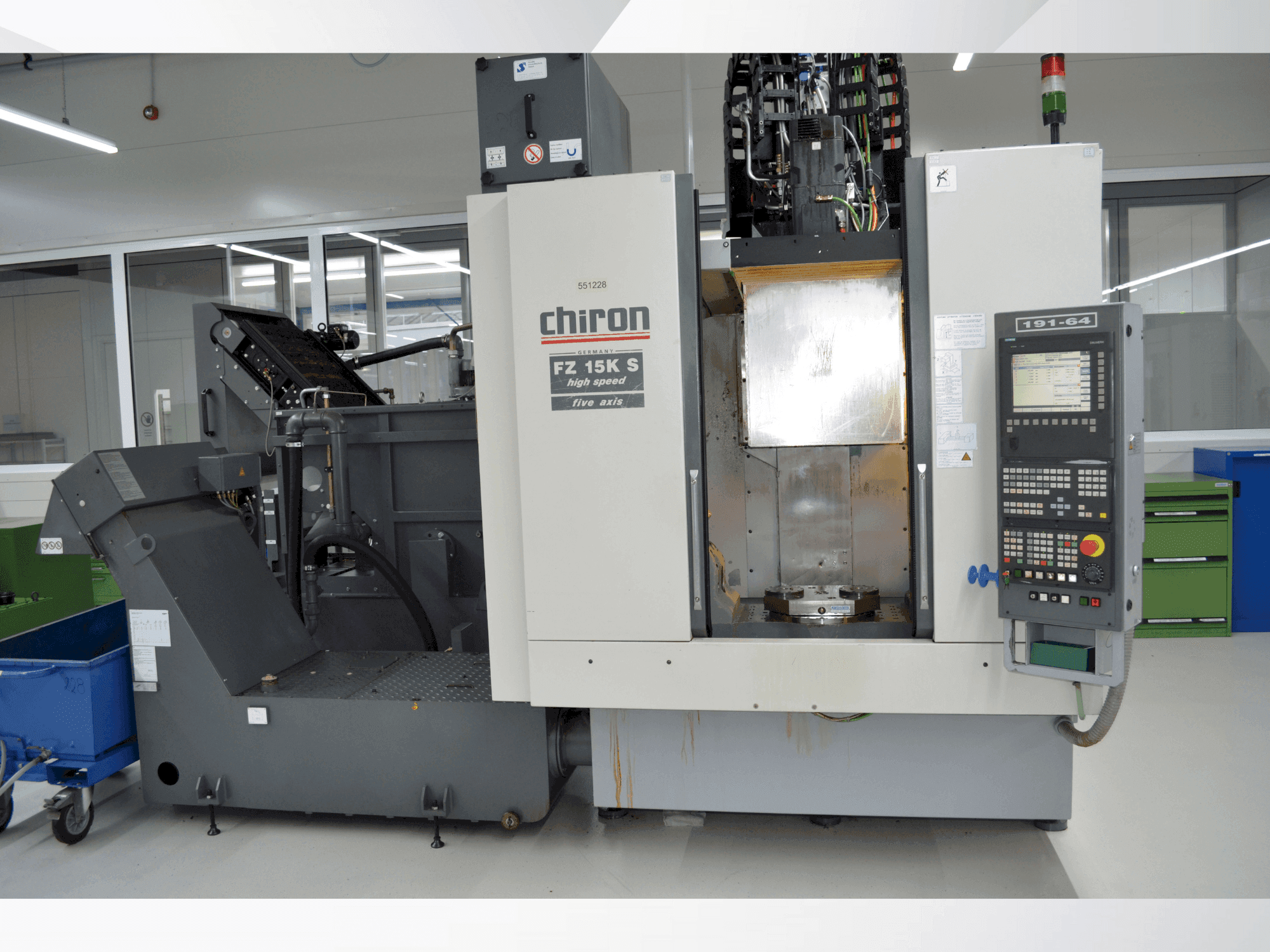

This 5-axis CHIRON FZ 15KS five axis high speed was manufactured in 2008. It features a main spindle drive with up to 14 kW power, a 48-tool magazine with HSK A63 tooling, and a rapid traverse rate of 60m/min. Travel distances are X 550mm, Y 400mm, Z 360mm. Currently operates as a 4-axis due to a deselected C-axis. If you are looking to get high quality milling capabilities consider the CHIRON FZ 15KS machine we have for sale. Contact us for more information.
Overview
- brand: CHIRON
- year: 2008
- MODEL: FZ 15KS five axis high speed
- production hours: 55000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 15KS five axis high speed
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D
Main drive
- Main motor power: 9.5 kW (100% ED), 14 kW (15% ED)
- Number of axis: 5
Movement
- X-AXIS Movement: 550 mm
- X-AXIS Feed Force: 0.5g
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Feed Force: 1.0g
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 360 mm
- Z-AXIS Feed Force: 1.2g
- Z-AXIS Rapid traverse: 60 m/min
Turret
- Tool taper: HSK A63
Tools
- Slots in storage: 48
- Max weight: 5 kg
- Max tool diameter: 82 mm
- Max tool length: 125 mm
Media
- Chip conveyor: Yes
Additional equipment
- - Coolant system HL 450 / 900
- - Internal cooling package with suction unit
Additional Information
- Technical Machine Benefits:
- - Main spindle drive ac motor
- - Drilling capacity in st 60: diameter 30mm
- - Thread cutting: m 24
- - Milling capacity in st 60: 300 cm³/min
- - 2-axis swivel device zas 280 - swivel angle: ±110° partial accuracy: ±6'' max. Transmittable torque: 1100 nm max. Speed: 30 min^-1 holding torque: 3800 nm
- - Nc round disk face plate - diameter: 280mm max. Transport load: 320kg max. Transmittable torque: 700 nm holding torque: 2800 nm max. Speed: 45 min^-1
- - Chiron lasercontrol single f500 transmitter-receiver distance: 1000mm
- - Min. Tool diameter: >1mm
- - Ejection height: 1050mm
- - Container capacity: 150l
- Qualitative Machine Benefits:
- - C-axis is defective and has been deselected
- - Machine is ready for use and is used in 4-axis operation
- - Without base plate on the c-axis
- - Lifting pump max. : 300l/min at 1. 3 bar
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
