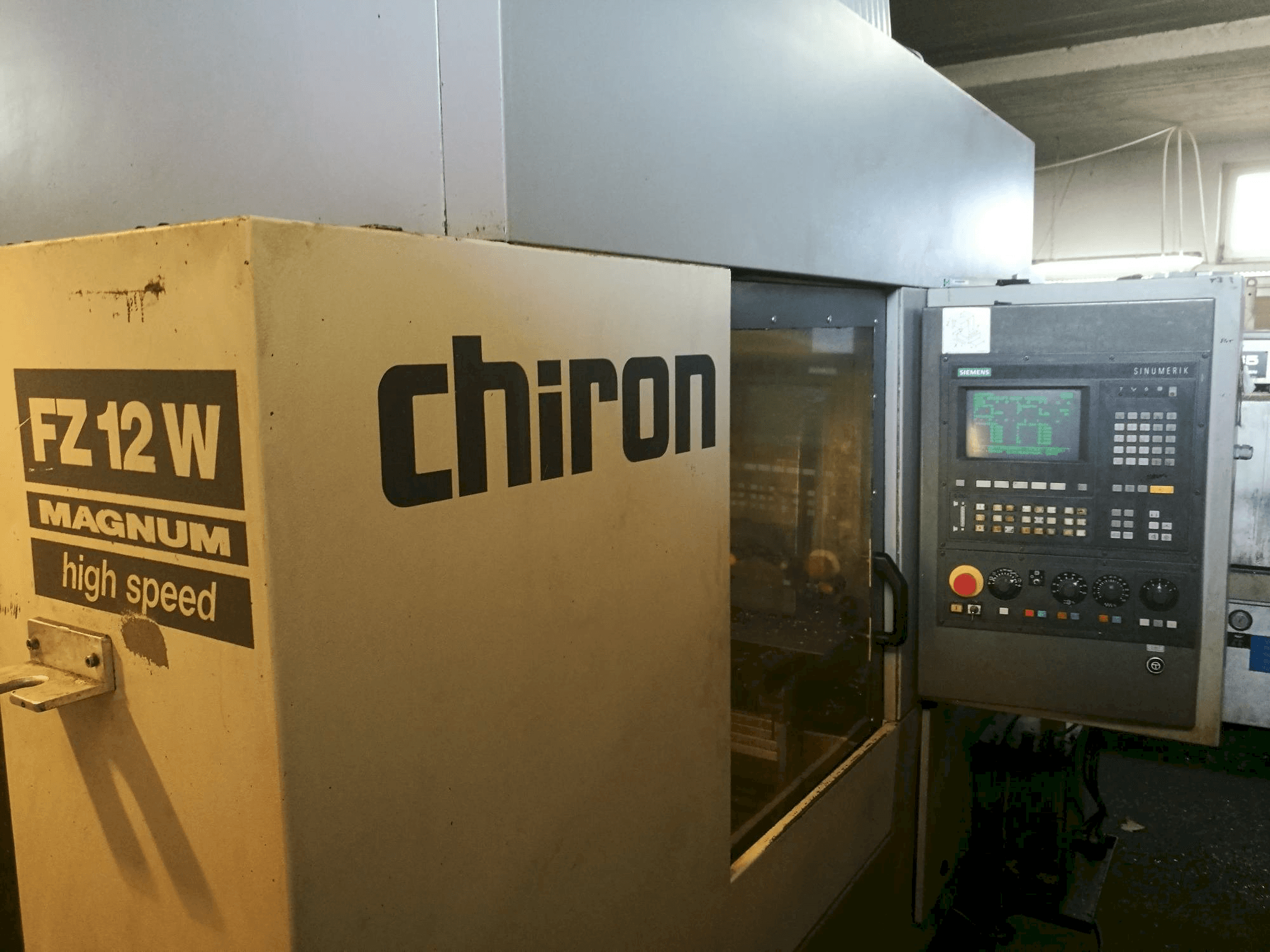

Chiron FZ 12 W Magnum Vertical Machining Center

Show in original language

This Chiron FZ 12 W Magnum Vertical Machining Center was made in Germany in 1996 and is operated through a Siemens Sinumerik 810 M control unit. This model comes with a chip conveyor KNOLL, a filter KNOLL and a 2 x 4th axis Peiseler RT 160 with hydraulic brake.

Overview

brand: CHIRON
year: 1996
MODEL: FZ 12 W Magnum
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W Magnum

General Data

Measurements width: 2240 mm
Measurements depth: 3550 mm
Measurements height: 2450 mm
Machine weight: 4000 kg

Control Unit

Model: Sinumerik 810 M
Brand: SIEMENS

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 300 mm
Outer width: 660 mm

Media

Main electronic connection: 3 x 400V 50/60Hz
Power consumption: 19 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Chip conveyor KNOLL
- Filter KNOLL
- 2 x 4th axis Peiseler RT 160 with hydraulic brake

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
