CHIRON - FZ 12 KW HIGH-SPEEDDE-MIL-CHI-2005-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 12 KW HIGH-SPEED For sale | gindumac.com

Show in original language

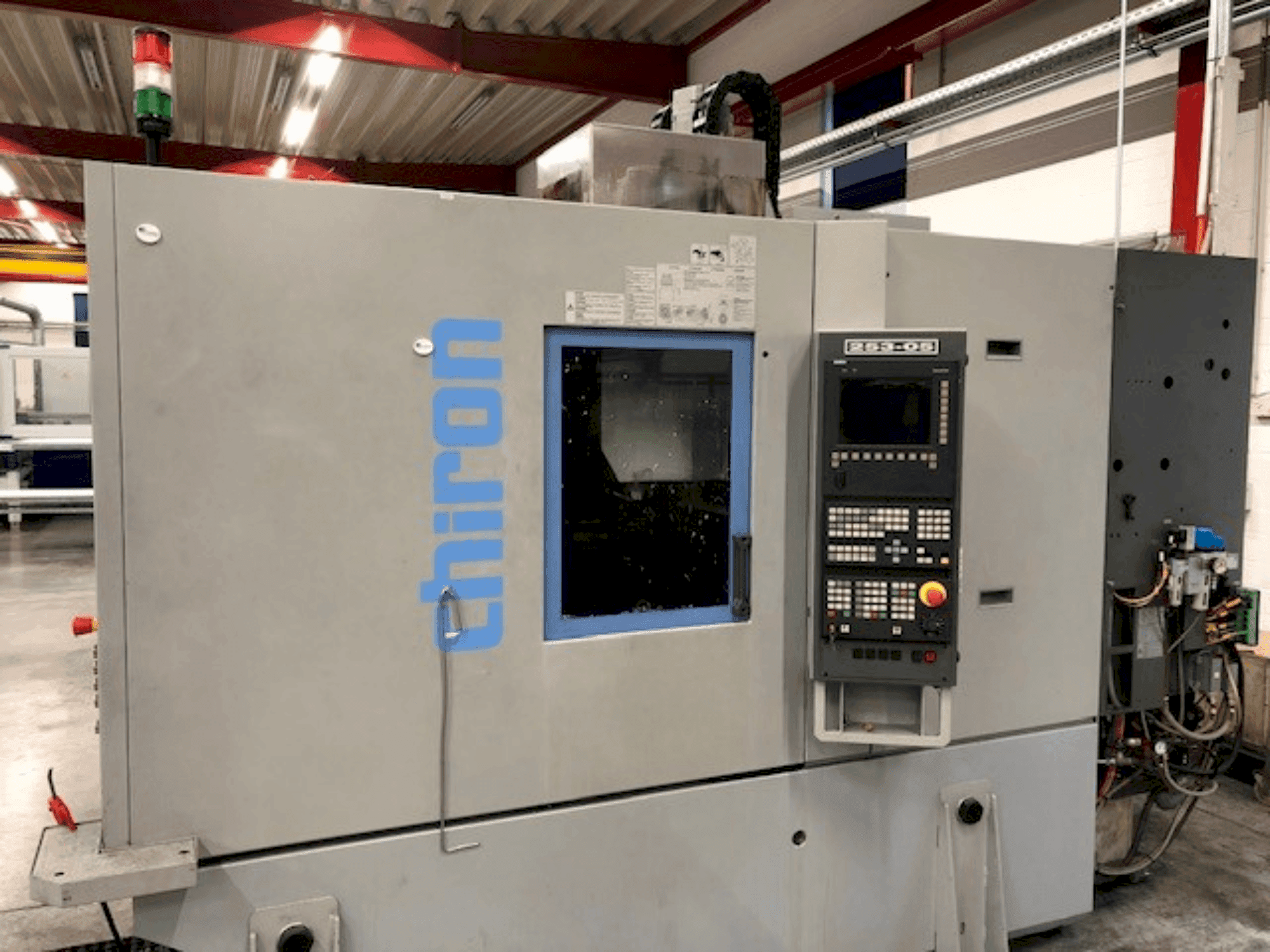

This 5-axis CHIRON FZ 12 KW HIGH-SPEED vertical machining center was manufactured in 2005. It features a Siemens 840D control system, a travel range of X-axis 550mm, Y-axis 320mm, Z-axis 360mm, and a reinforced spindle drive of 24.5KW up to 15000min/1. Equipped with a 24-place automatic tool changer and a rotary table package for enhanced flexibility. Ideal for precision machining. Contact us for more information about this vertical machining center.

Overview

brand: CHIRON
year: 2005
MODEL: FZ 12 KW HIGH-SPEED
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 KW HIGH-SPEED

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 24.5 kw
Tool taper: HSK-A 50

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 360 mm

Tools

Slots in storage: 24

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Automatic tool changer: 24 places, HSK-A 50
- Workpiece changing device: 0/180°
- Rotary table package: 4th + 5th NC axis

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robust spindle power (24. 5 kw) integrated 4th and 5th nc axis
Qualitative Machine Benefits:
- - High precision with siemens 840d control unit
- - Enhanced performance with new main spindle (replaced in 09. 2019) and new tool magazine (replaced in 02. 2021)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
