➤ Used CHIRON FZ 08 W | Vertical Machining Center

Show in original language

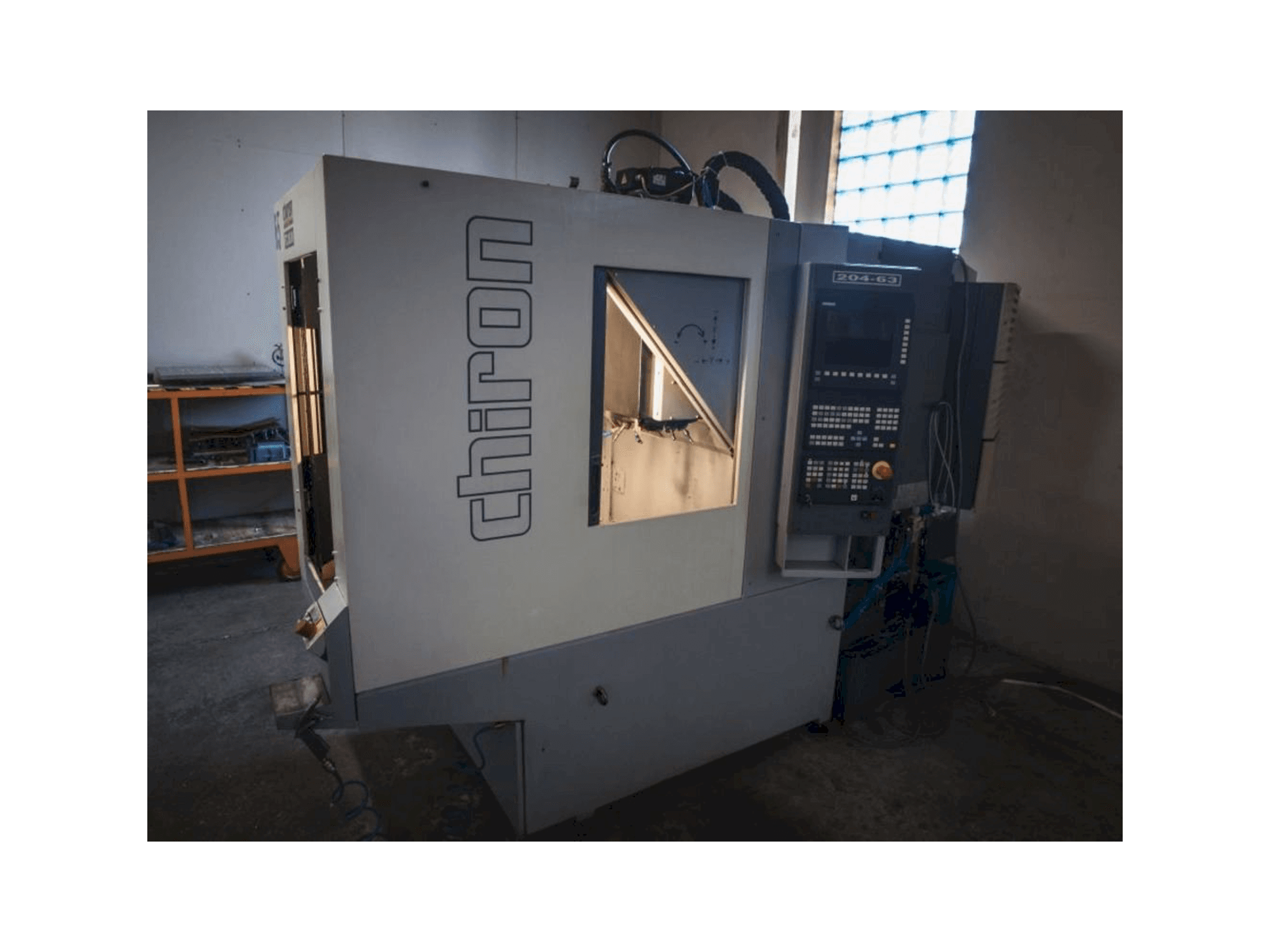

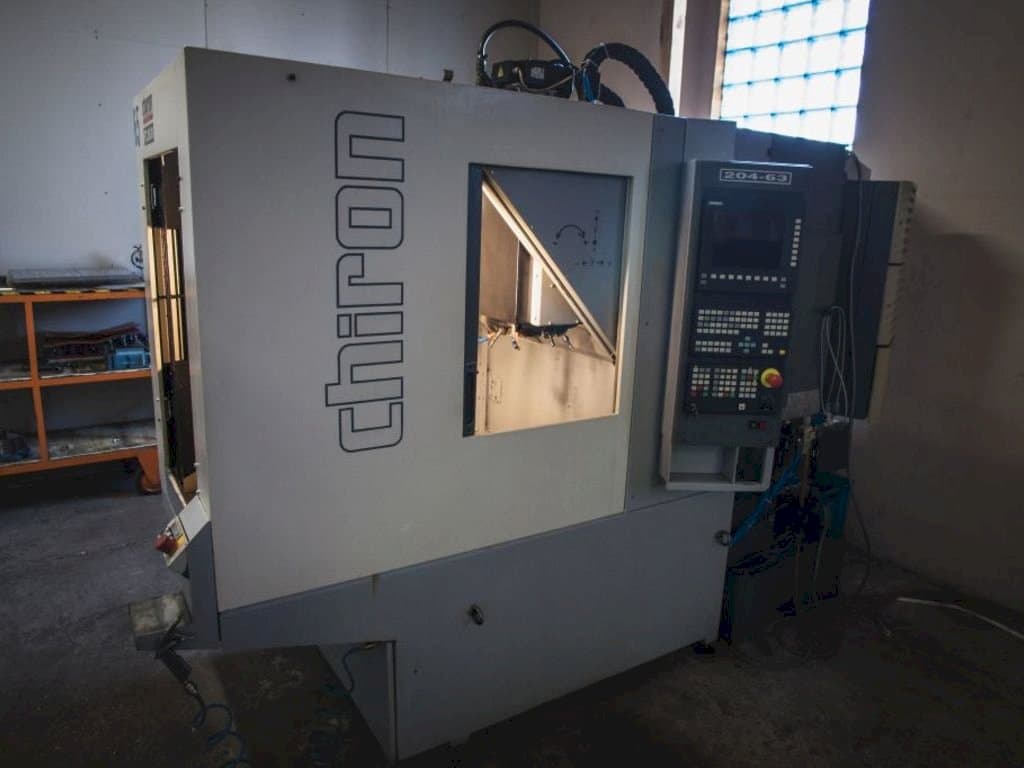

This Chiron FZ 08 W Vertical Machining Center was made in Germany in 2001 and is operated through a siemens control unit. This model counts with an internal cooling and 3 axis.

Overview

brand: CHIRON
year: 2001
MODEL: FZ 08 W
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 08 W

General Data

Measurements width: 1400 mm
Measurements depth: 2500 mm
Measurements height: 2250 mm
Machine weight: 2200 kg

Control Unit

Brand: SIEMENS

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Table

Outer length: 550 mm
Outer width: 300 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 12 kVA
Internal cooling: Yes

Additional Information

Machine history

Material thickness: Mm

Machine Benefits

Technical Machine Benefits:
- - Compact, siemens control unit

Extra information

- Video is not available at the moment

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
