➤ Used CHIRON DZ 18 W For Sale | gindumac.com

Show in original language

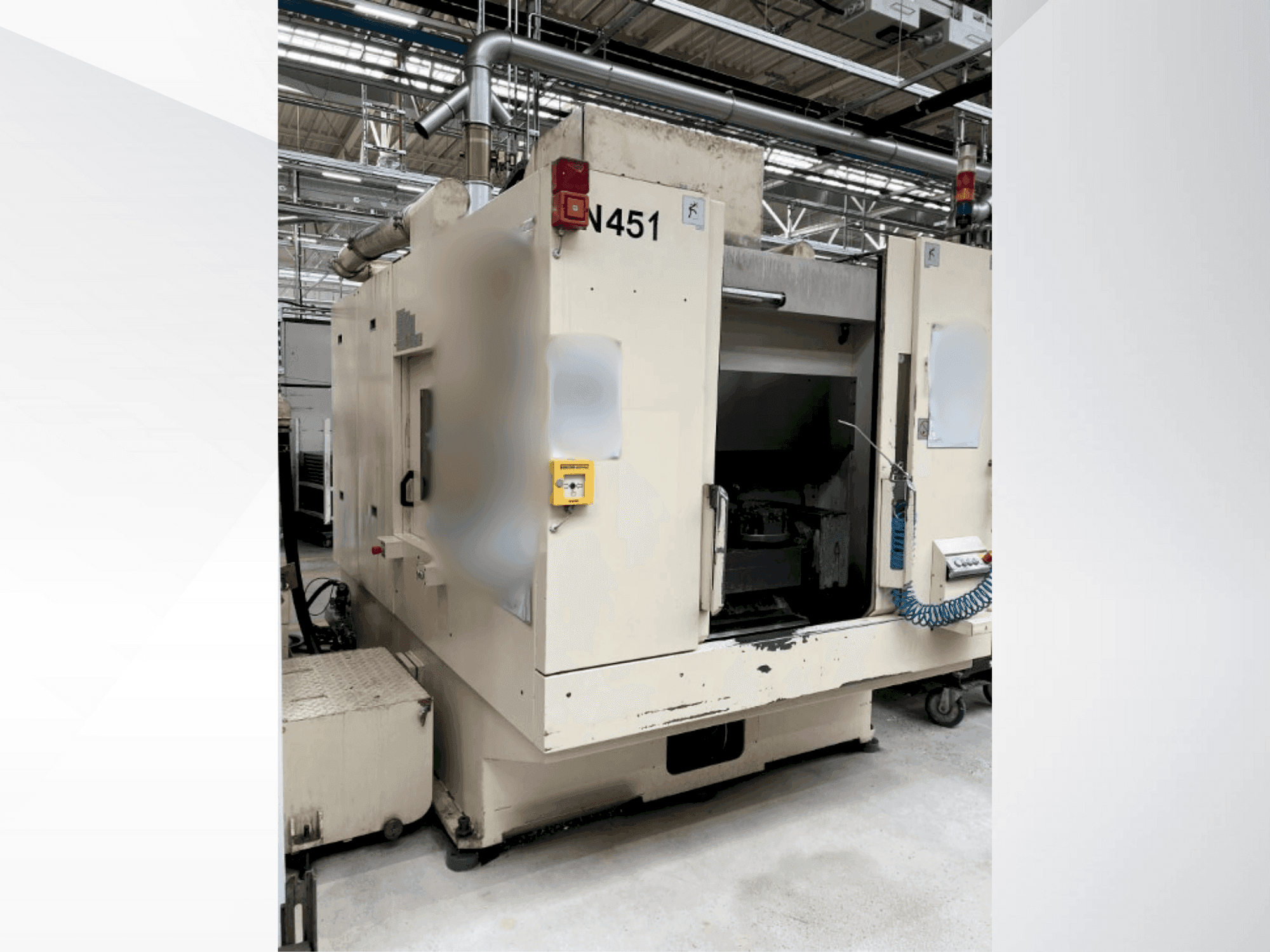

This 4-axis CHIRON DZ 18 W milling machine was manufactured in 2008. It features a robust Siemens 840D Powerline control, a rapid traverse rate of 60 m/min in all axes, and a maximum spindle speed of 10,500 rpm. The dual spindle setup and a 4-axis NC rotary table enhance its versatility. Ideal for precision milling, the CHIRON DZ 18 W also includes a chip conveyor and a coolant system with IKZ at 70 bar. Reach out for more information about this milling machine.

Overview

brand: CHIRON
year: 2008
MODEL: DZ 18 W
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: Siemens

Technical Information - CHIRON DZ 18 W

Control Unit

Brand: Siemens
Model: 840D Powerline

Main drive

Spindle speed range: 10500 1/MIN
Spindle motor power: 33 kW
Tool taper: SK 40
Number of axis: 4

Movement

X-AXIS Movement: 400 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 630 mm
Z-AXIS Rapid traverse: 60 m/min

Tools

Slots in storage: 2 x 12

Media

Chip conveyor: Yes

Additional equipment

- NC rotary table / 4 axis
- Coolant system
- Hydraulic unit with clamping logic
- Controllable lines per table side
- Blum measuring probe
- Laser drill breakage control
- CO² extinguishing system
- Table workpiece changing device

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface: 2 x 940 x 470 mm²
- - Advanced control system with siemens 840d powerline for precise operations
Qualitative Machine Benefits:
- - Comprehensive equipment setup for versatile machining operations
- - High precision with blum measuring probe and laser drill breakage control

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
