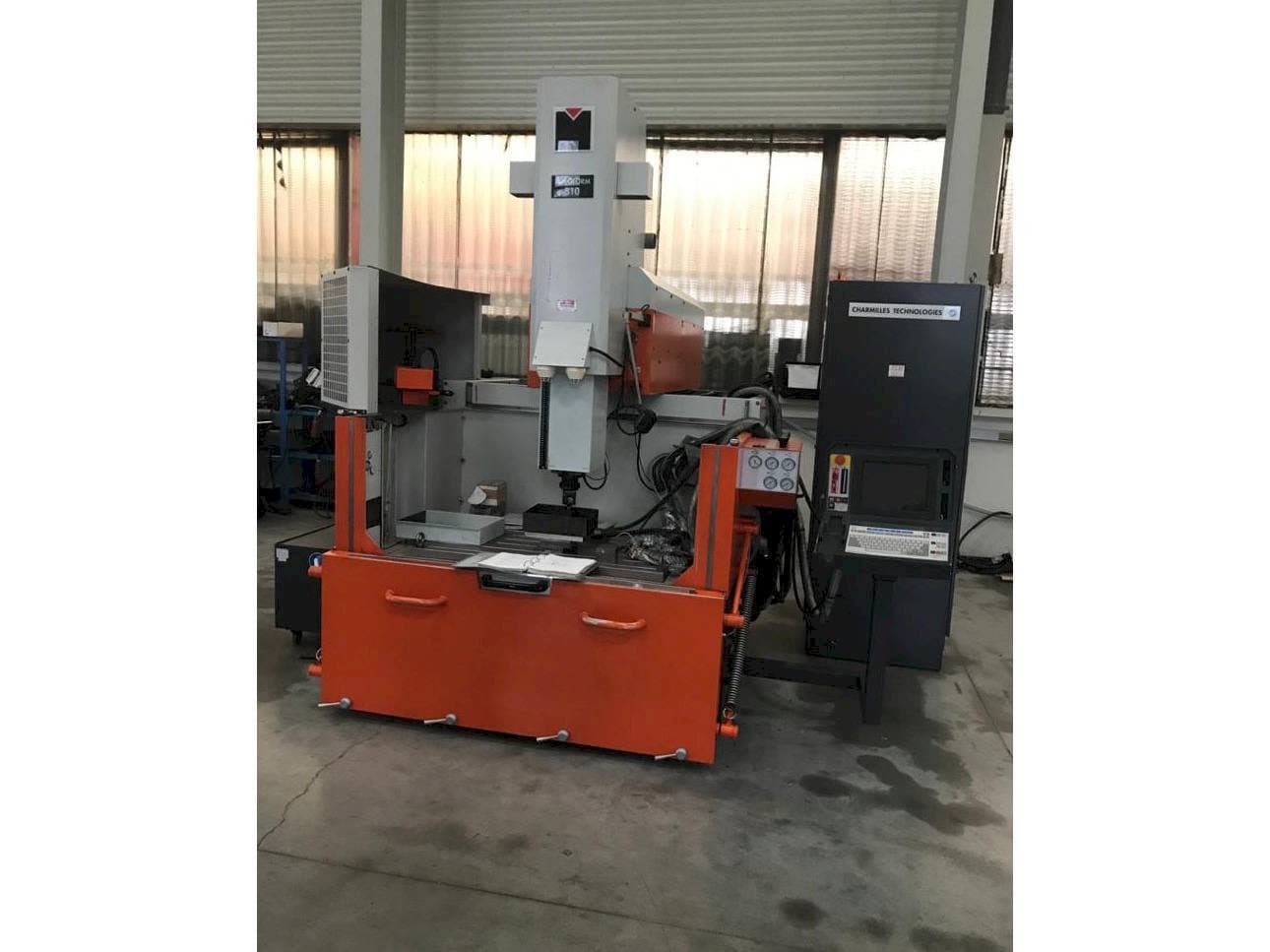

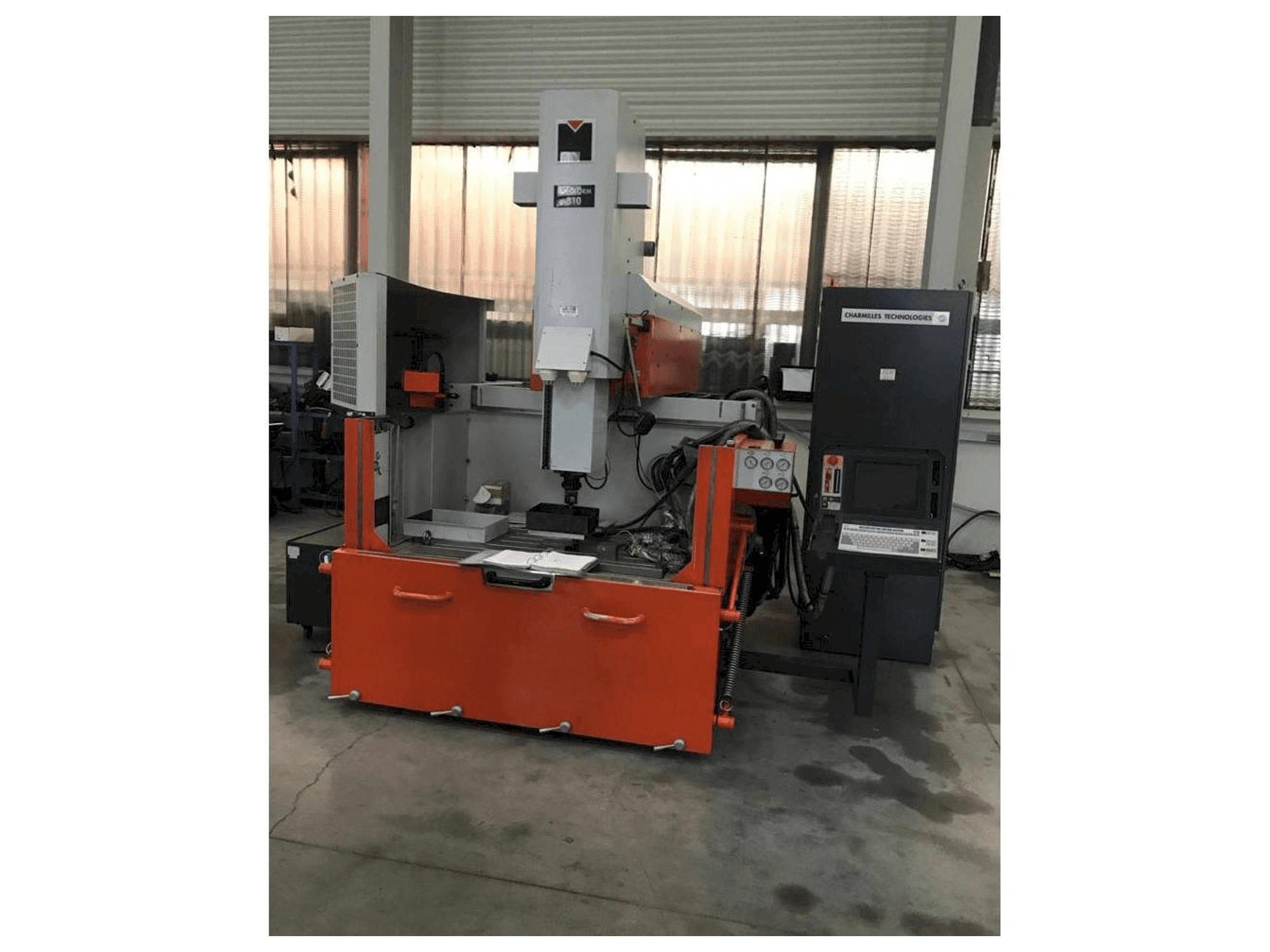

CHARMILLES ROBOFORM 810 Erosion machine

Show in original language

This CHARMILLES ROBOFORM 810 Erosion machine was made in 1998 and was refurbished. It is equipped with a CHARMILLES control unit and has 4 axis. The machine has a travel axis (x, y, z) of 800 x 600 x 500mm and is in excellent condition.

Overview

brand: CHARMILLES
year: 1998
MODEL: ROBOFORM 810
application type: EDM
Location: Portugal
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFORM 810

General Data

Measurements width: 3950 mm
Measurements depth: 3550 mm
Measurements height: 2960 mm
Machine weight: 5300 kg

Control Unit

Brand: CHARMILLES

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Part dimension: 1500 x 1000 x 500 mm
- - Max. Weight part: 4200 kg
- - Dielectric volume: 1600 l
- - C-axis: yes
- - Tool changer: 24
- - Chuck: 3 r
Qualitative Machine Benefits:
- - Machine in excellent condition
- - Refurbished

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
