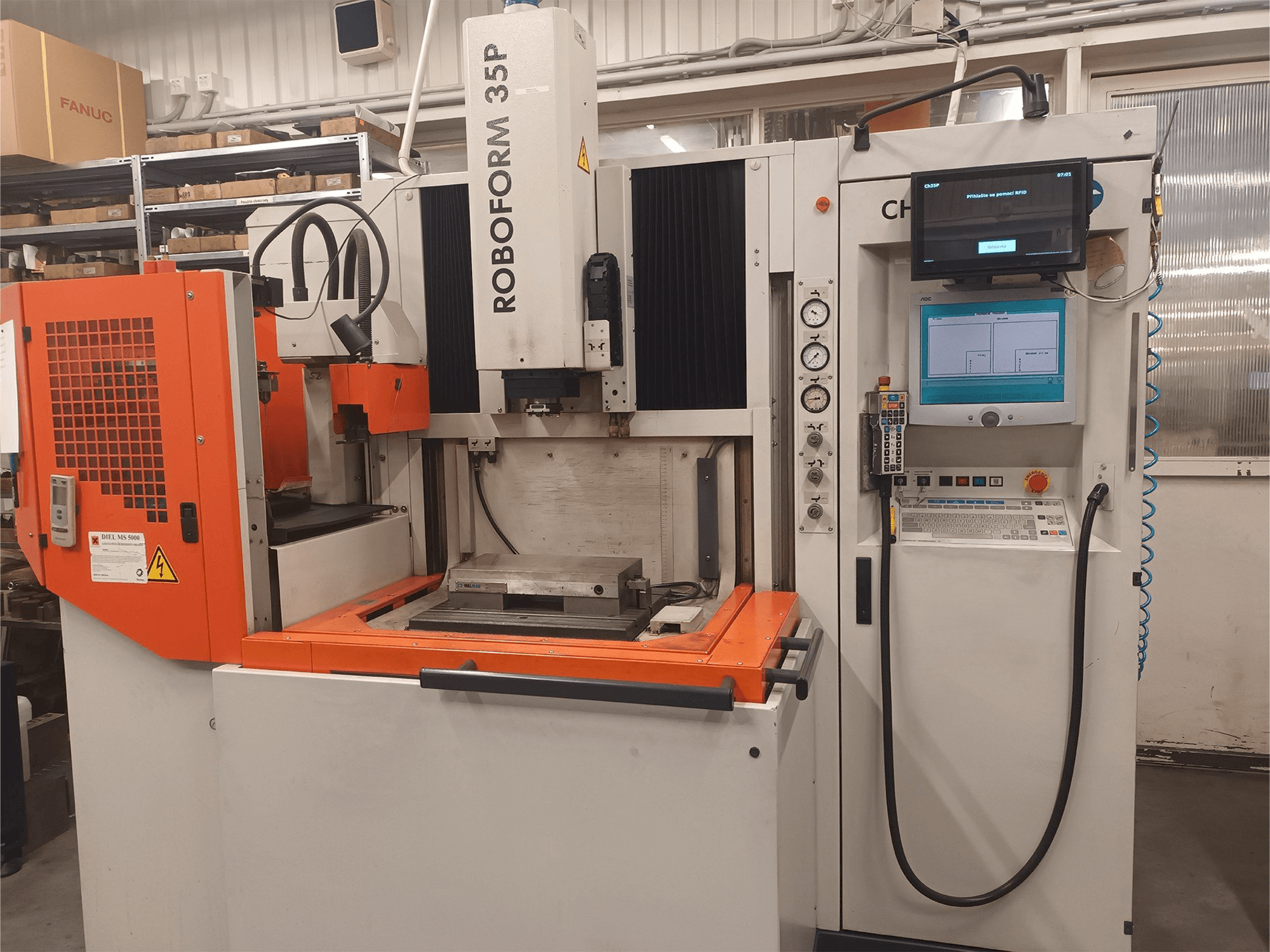

CHARMILLES ROBOFORM 35P EDM machine

Show in original language

This CHARMILLES ROBOFORM 35P EDM machine was made in Switzerland in 2001. It has been working for 37328 hours. It operates with a table dimensions of 500 x 400 mm. It comes with an electrode clamping EROWA ITS50 and electrode magazine of 20 positions.

Overview

brand: CHARMILLES
year: 2001
MODEL: ROBOFORM 35P
production hours: 37328
application type: EDM
Location: Czech Republic
machine type: Die-Sinking EDM Machine
availability: Sold

Technical Information - CHARMILLES ROBOFORM 35P

General Data

Machine weight: 2500 KG

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece x: 780 mm
Workpiece y: 530 mm
Workpiece z: 300 mm
Workpiece weight: 800 KG

Table

Outer length: 500 mm
Outer width: 400 mm

Media

Main electronic connection: 3 x 380V / 50Hz
Power consumption: 5 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrode clamping erowa its50
- - Electrode magazine: 20 positions
- - Dialectric tank volume: 800 litres
- - Tank dimensions: 780 x 500 mm
- - Distance between chuck and table min/max : 140/450 mm
- - Die sinking edm machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
