➤ Used CHARMILLES ROBOFORM 35P For Sale | gindumac.com

Show in original language

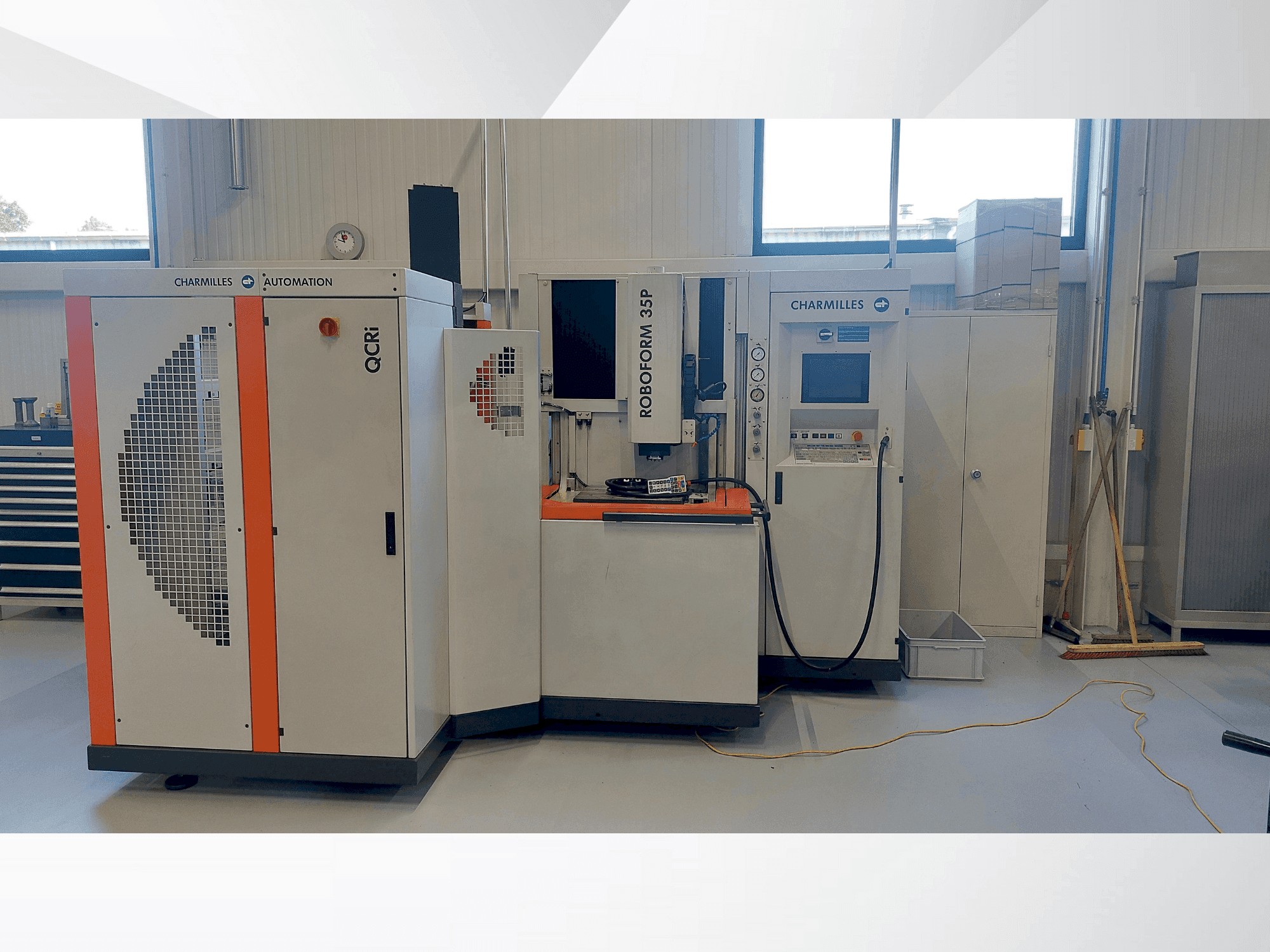

This 3-axis CHARMILLES ROBOFORM 35P was manufactured in 2001. A robust die-sinking EDM machine, it features a worktank size of 800x550x370 mm and a table size of 800x550 mm. It can handle workpieces up to 780x530x300 mm and 500 kg. With a max machining current of 64 A, it's ideal for precise metal shaping. Consider the CHARMILLES ROBOFORM 35P machine we have for sale. Contact us for further details regarding this die-sinking EDM machine.

Overview

brand: CHARMILLES
year: 2001
MODEL: ROBOFORM 35P
application type: EDM
Location: Belgium
machine type: Die-Sinking EDM Machine
availability: Immediately

Technical Information - CHARMILLES ROBOFORM 35P

General Data

Measurements width: 1690 MM
Measurements depth: 1900 MM
Measurements height: 2400 MM
Machine weight: 2500 KG

Main drive

Working current: 64 A

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece x: 780 mm
Workpiece y: 530 mm
Workpiece z: 300 mm
Workpiece weight: 500 kg

Table

Outer length: 800 mm
Outer width: 550 mm

Additional equipment

- QCRi

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Worktank length: 800 mm
- - Worktank width: 550 mm
- - Worktank height: 370 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
