CHARMILLES - Robofil 290 PPL-EDM-CHA-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

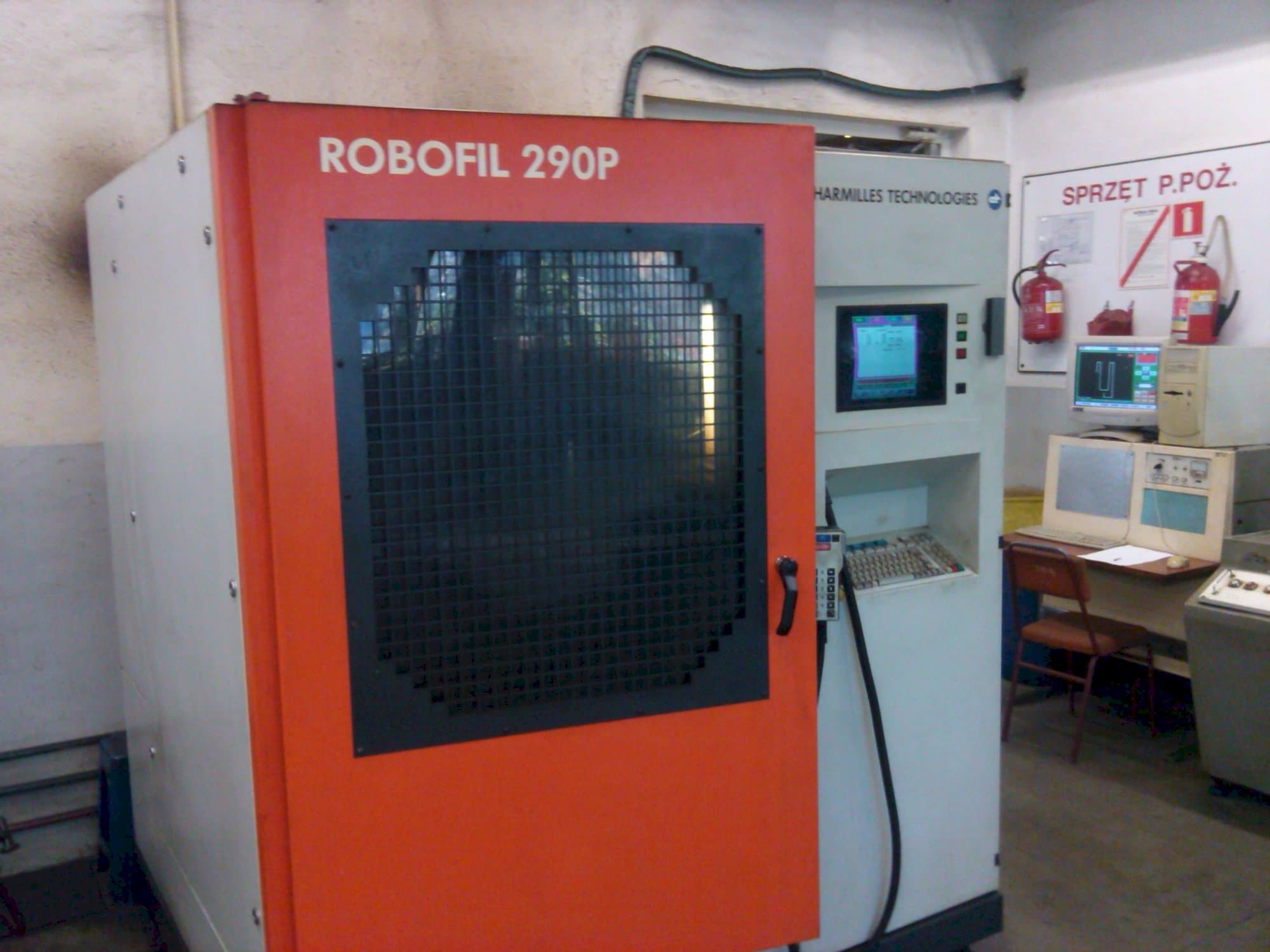

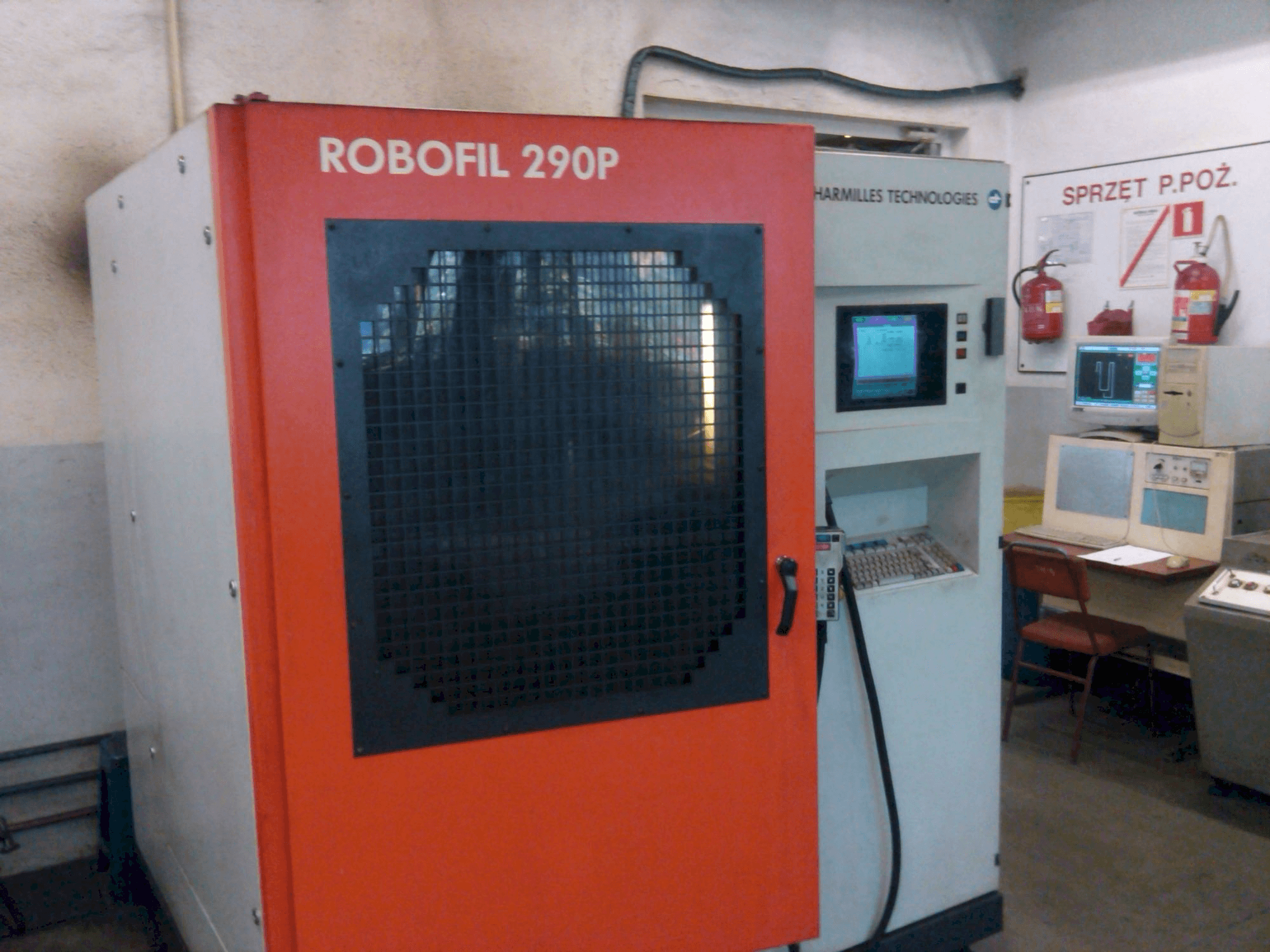

Charmilles Robofil 290 P EDM

Show in original language

This Charmilles Robofil 290 P Erosion Machines was manufactured in 2000 in Switzerland. This 5 axis machine has been working for only 50000 hours. It operates through a Charmilles control unit. It has a max cutting angle of 30 degrees.

Overview

brand: CHARMILLES
year: 2000
MODEL: Robofil 290 P
production hours: 50000
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold

Technical Information - CHARMILLES Robofil 290 P

General Data

Measurements width: 1800 mm
Measurements depth: 1600 mm
Measurements height: 2180 mm
Machine weight: 2500 kg

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 200 mm
V-Axis Movement: 250 mm
U-Axis Movement: 400 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 850 mm
Outer width: 500 mm

Media

Main electronic connection: 3x380V / 50Hz
Power consumption: 10 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Work piece dimension: (x x y x z): 850 x 500 x 200mm
- - Max cutting angle: 30 degrees
Qualitative Machine Benefits:
- - Machine ready for tests.
- - There is polish documentation available.

Extra information

- There is no additional tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
