➤ Used CHARMILLES Robofil 2020 SI - Erosion Machine

Show in original language

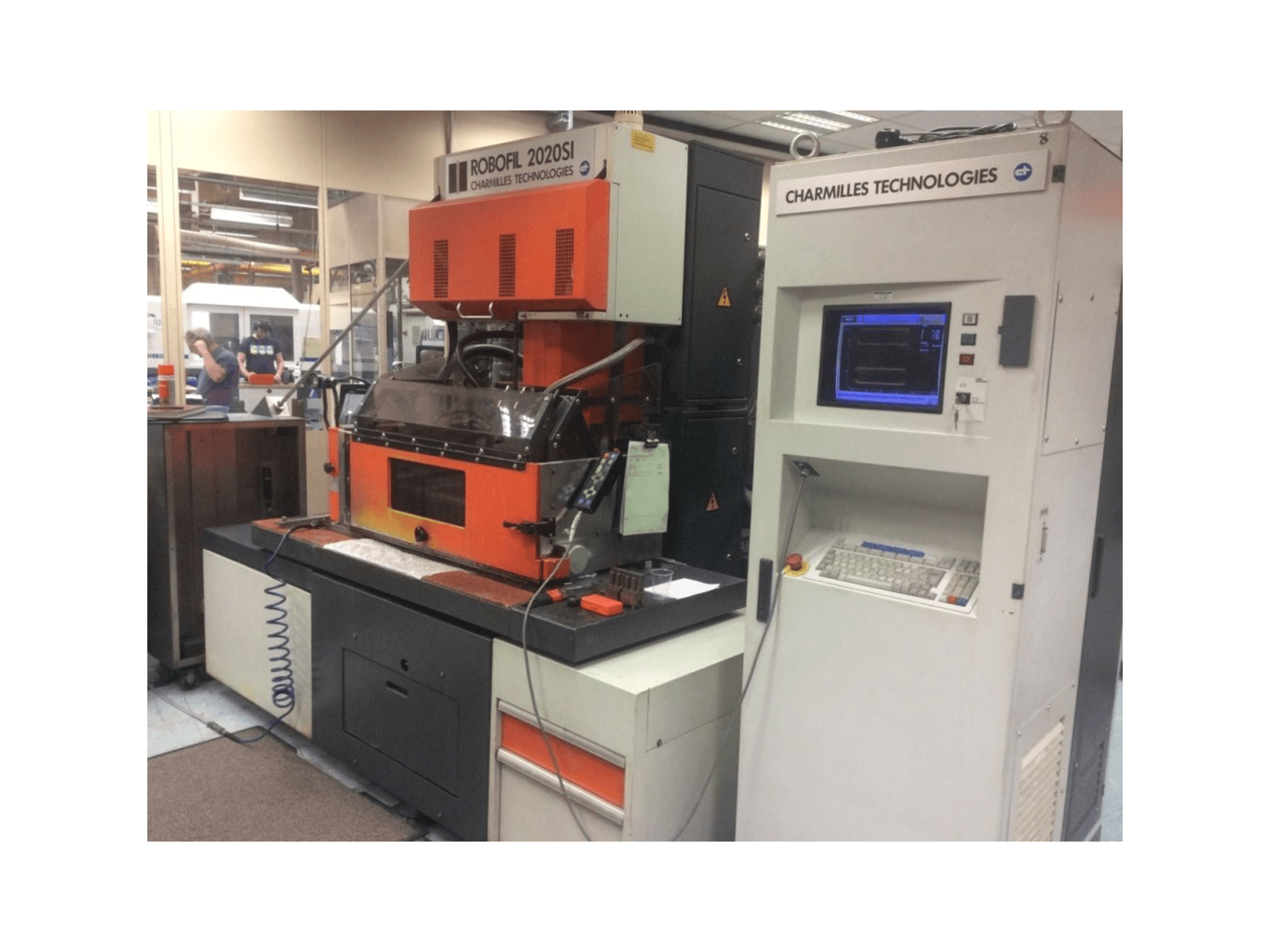

This CHARMILLES Robofil 2020 SI Erosion Machine was manufactured in 1998 in Switzerland. It has been working for approximately 32000 hours. It is equipped with a control unit of the same brand. This machine incorporates a wire diameter of 0.1 to 0.3 mm. It presents good conditions, as it has been regularly serviced.

Overview

brand: CHARMILLES
year: 1998
MODEL: Robofil 2020 SI
production hours: 32000
application type: EDM
Location: Ireland
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES Robofil 2020 SI

General Data

Measurements width: 2620 mm
Measurements depth: 2500 mm
Measurements height: 2300 mm
Machine weight: 2200 kg

Control Unit

Model: Charmilles CNC
Brand: CHARMILLES

Main drive

Wire diameter: 0.1 to 0.3 mm

Movement

X-AXIS Movement: 320 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 116 mm

Workpiece

Workpiece x: 990 mm
Workpiece y: 505 mm
Workpiece z: 150 mm
Workpiece weight: 500 kg

Table

Outer length: 600 mm
Outer width: 420 mm

Media

Main electronic connection: 400 V
Power consumption: 12 kVA

Additional equipment

- Auto Wire Feed
- Dielectric Filtration and Tank
- 900L Di-Elecetric Tank

Additional Information

Machine history

Industries: Medical device

Machine Benefits

Qualitative Machine Benefits:
- - Well serviced and looked after machine
- - Used for high precision medical device components

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
