➤ Used CHARMILLES FI 440 CC For Sale | gindumac.com

Show in original language

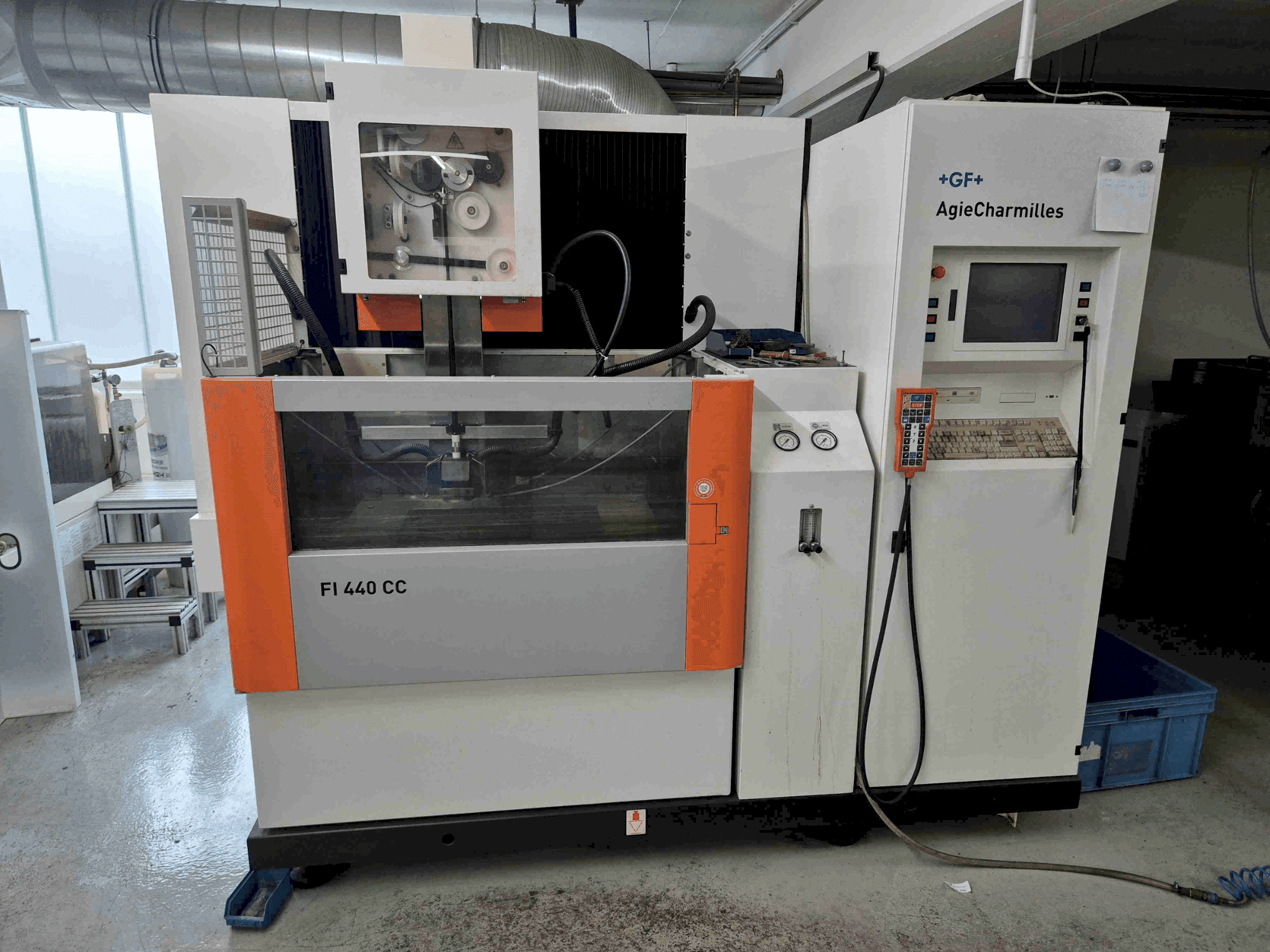

This 5-axis CHARMILLES FI 440 CC wire EDM machine was manufactured in 2008. It features a large workpiece capacity up to 1200x700x400mm and a maximum weight of 1500kg. The machine dimensions are 2600x2810x2080 mm, and it includes a CleanCut high-speed generator with a cutting speed of 400mm²/min. If you are looking to get high-quality EDM capabilities, consider the CHARMILLES FI 440 CC machine we have for sale. Contact us for more information about this machine.

Overview

brand: CHARMILLES
year: 2008
MODEL: FI 440 CC
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Immediately

Technical Information - CHARMILLES FI 440 CC

General Data

Measurements width: 2810 MM
Measurements depth: 2600 MM
Measurements height: 2080 MM
Machine weight: 4450 KG

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 400 mm
V-Axis Movement: 350 mm
U-Axis Movement: 550 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 700 mm
Workpiece z: 400 mm
Workpiece weight: 1500 kg

Injection Unit

Stroke volume: 1200 CM³

Additional equipment

- CleanCut High-Speed Generator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. /max. Dielectric distance: 0/435 mm
- - Filter cartridges: 4
- - Total volume of deionising resin: 20 l
- - Cutting speed: 400 mm²/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
