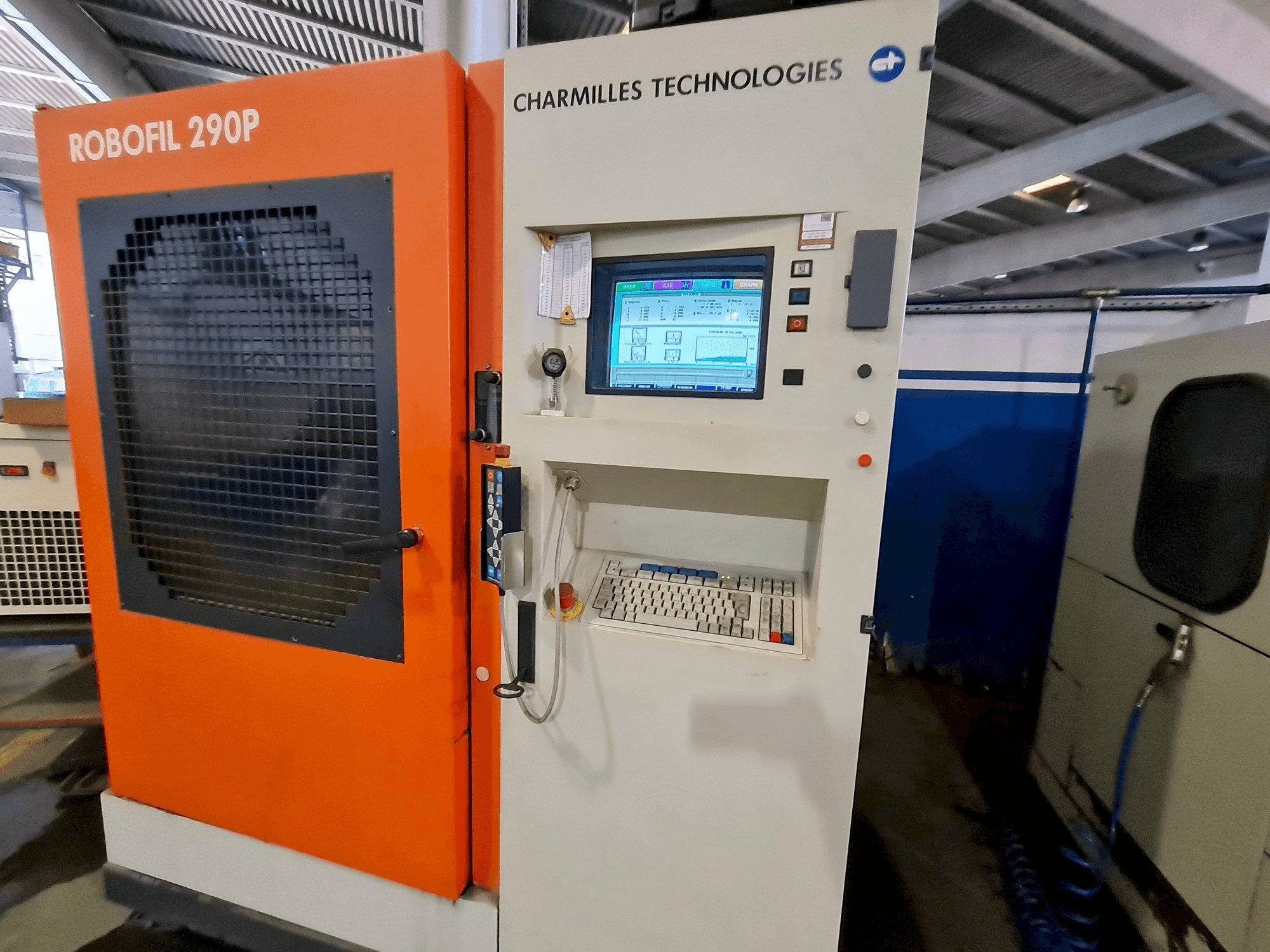

CHARMILLES 290P Erosion machine

Show in original language

This CHARMILLES 290P Erosion machine was made in Switzerland in 1999. It has 6000 hours. It is equipped with a control unit of the same brand. This 5 axis machine has a table dimensions 850 x 500 mm. It comes with protection against collisions in their axes. Includes various accessories.

Overview

brand: CHARMILLES
year: 1999
MODEL: 290P
production hours: 6000
application type: EDM
Location: Portugal
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES 290P

General Data

Measurements width: 1800 mm
Measurements depth: 1600 mm
Measurements height: 2130 mm
Machine weight: 2200 KG

Control Unit

Model: CONSOLE 2 (5 axis)
Brand: CHARMILLES

Main drive

Wire diameter: 0.25 mm
Number of axis: 5

Movement

X-AXIS Movement: 400 MM
Y-AXIS Movement: 250 MM
Z-AXIS Movement: 200 MM
V-Axis Movement: 250 MM
U-Axis Movement: 400 MM

Workpiece

Workpiece weight: 500 KG

Table

Outer length: 850 MM
Outer width: 500 MM

Media

Main electronic connection: 3 x 380V / 50Hz
Power consumption: 10 kVA

Additional equipment

- Various accessories

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tilt angle - height: +30/200 º/ min
- - Axis protection against collisions: x, y, u, v, z
- - Part max. Dimensions: 850 x 500 x 200 mm
- - Part max. Weight: 500 kg
- - X x y x z strokes: 400 x 250 x 400 mm
- - U x v stroke: 400 x 250 mm
- - Tank capacity: 300 l
- - Generator: 10 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
