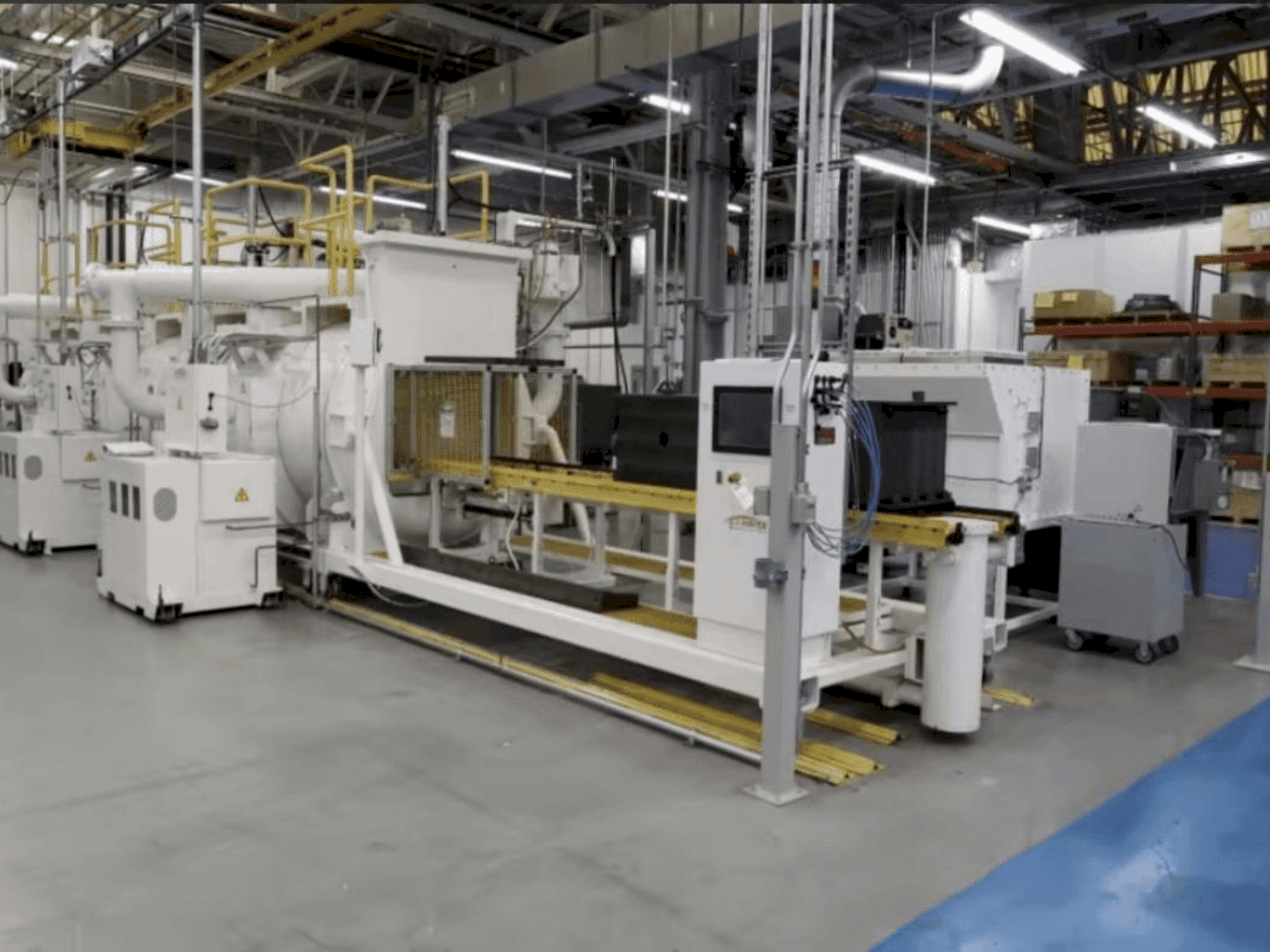

C.I. HAYES - CV-202436-PHMD-OTH-CIH-2015-00001

Additional equipment

• - 2016 Tuthill KT300 Vacuum Pump Combo: Yes
• - PH module: Graphite lined, rated to 1120°C
• - HH module: Graphite lined, rated to 1450°C
• - 5 work carrier grids: Yes
• - Uniformity: +/- 25F in red heat (1400F to 2650F range)
• - Automatic vacuum control: 0.5 torr to 3 torr range
• - Kinney vacuum pump combination: Yes
• - Heat exchanger with pumping system for furnace water loop side: Yes, fully wired and piped

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High operating temperatures for preheat and process chambers
  • - Precise temperature uniformity and vacuum control
  • - Combined vacuum pump and cooling systems for efficient operation
  • - Preheat chamber temperature: 1100°c
  • - Process chamber temperature: 1450°c
  • - Quench chamber: nitrogen, just below atmosphere (~900 mbar)
  • - Cooling module: vacuum and sub-atmospheric convective cooling
• Qualitative Machine Benefits:
  • - Advanced programmable control via ab plc and hmi operator interface

Extra information

• - Machine still under power
