➤ Used Brother TC 32B | Vertical Machining Center

Show in original language

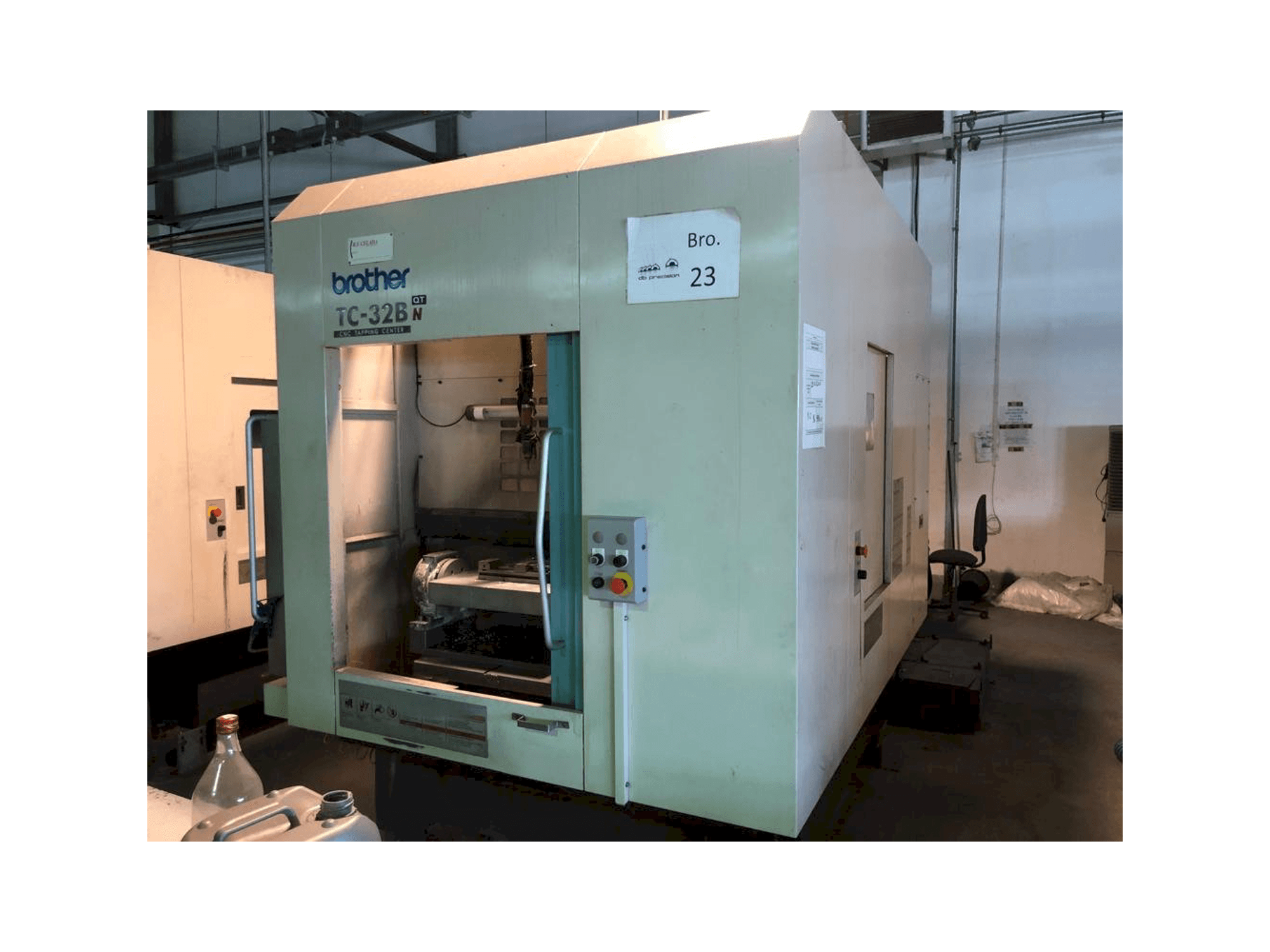

This Brother TC 32B Vertical Machining Center from 2011 was made in Japan. Equipped with a control unit of the same brand, this 3 axis machine incorporates a a tool holder of 26 positions. It can operate with a spindle speed up to 16000 rpm. A chip conveyor, a remote flyer and a Kitagawa rotary plate are included additionally.

Overview

brand: Brother
year: 2011
MODEL: TC 32B
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC 32B

General Data

Measurements width: 1900 mm
Measurements depth: 3700 mm
Measurements height: 2360 mm
Machine weight: 4600 kg

Control Unit

Brand: BROTHER

Main drive

Spindle speed range: 16000 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 415 mm

Table

Table load: 200 kg

Additional equipment

- Chip conveyor
- remote flyer
- Kitagawa rotary plate

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 + 1 axis
- - Fast forwards: 70-70-70 m/min
- - Pallets: 2 / 600 x 425
- - Toolholders: random 26 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
