➤ Used Brother Speedio S500X1 For Sale | gindumac.com

Show in original language

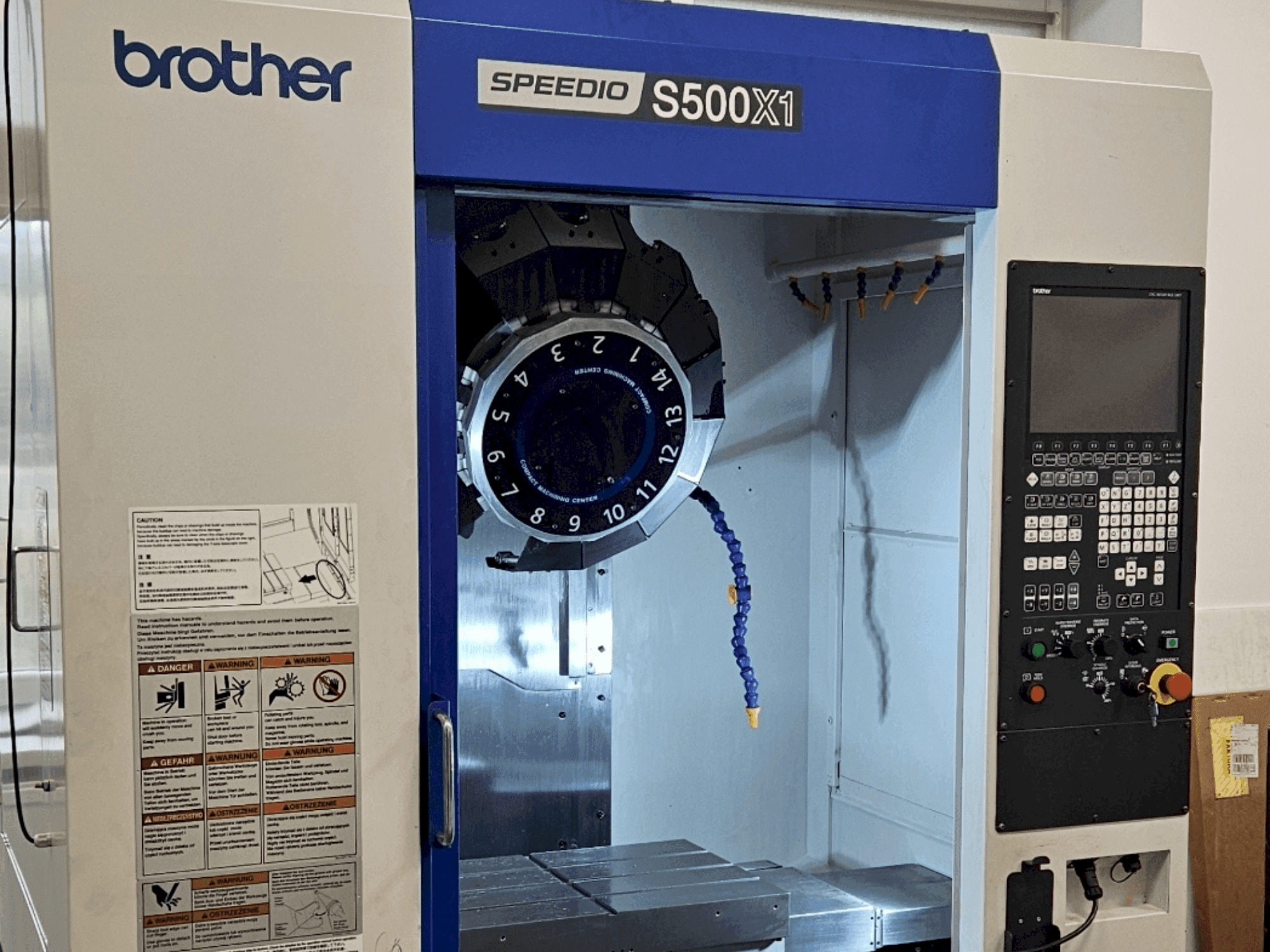

This 3-axis Brother Speedio S500X1 vertical machining center was manufactured in 2018. It features a spindle speed of 16000 rpm, a rapid traverse rate of 50 × 50 × 56 m/min, and a tool storage capacity of 14. With X, Y, Z travels of 500 mm, 400 mm, and 300 mm respectively, and a max loading capacity of 250 kg, the Brother Speedio S500X1 machine we have for sale is a robust choice. Contact us for further details regarding this vertical machining center.

Overview

brand: Brother
year: 2018
MODEL: Speedio S500X1
production hours: 442
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Brother Speedio S500X1

General Data

Measurements width: 2220 mm
Measurements depth: 1560 mm
Measurements height: 2497 mm

Main drive

Number of spindles: 1
Spindle speed range: 16000 rpm 1/MIN
Tool taper: MAS-BT30
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 300 mm

Tools

Max weight: 3 kg
Max tool diameter: 110 mm
Max tool length: 250 mm

Additional equipment

- Included machine: 1 vise, 2 milling heads, around 30 tool holders.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance table and spindle: 180–480 mm
- - Work area size: 600 × 400 mm
- - Table max loading capacity: 250 kg
- - Rapid traverse rate: 50 × 50 × 56 m/min
- - Cutting feed rate: x, y, z axis: 1–30,000 mm/min
Qualitative Machine Benefits:
- - Very good condition

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
