Bridgeport VMC500XP Vertical Machine Center

Show in original language

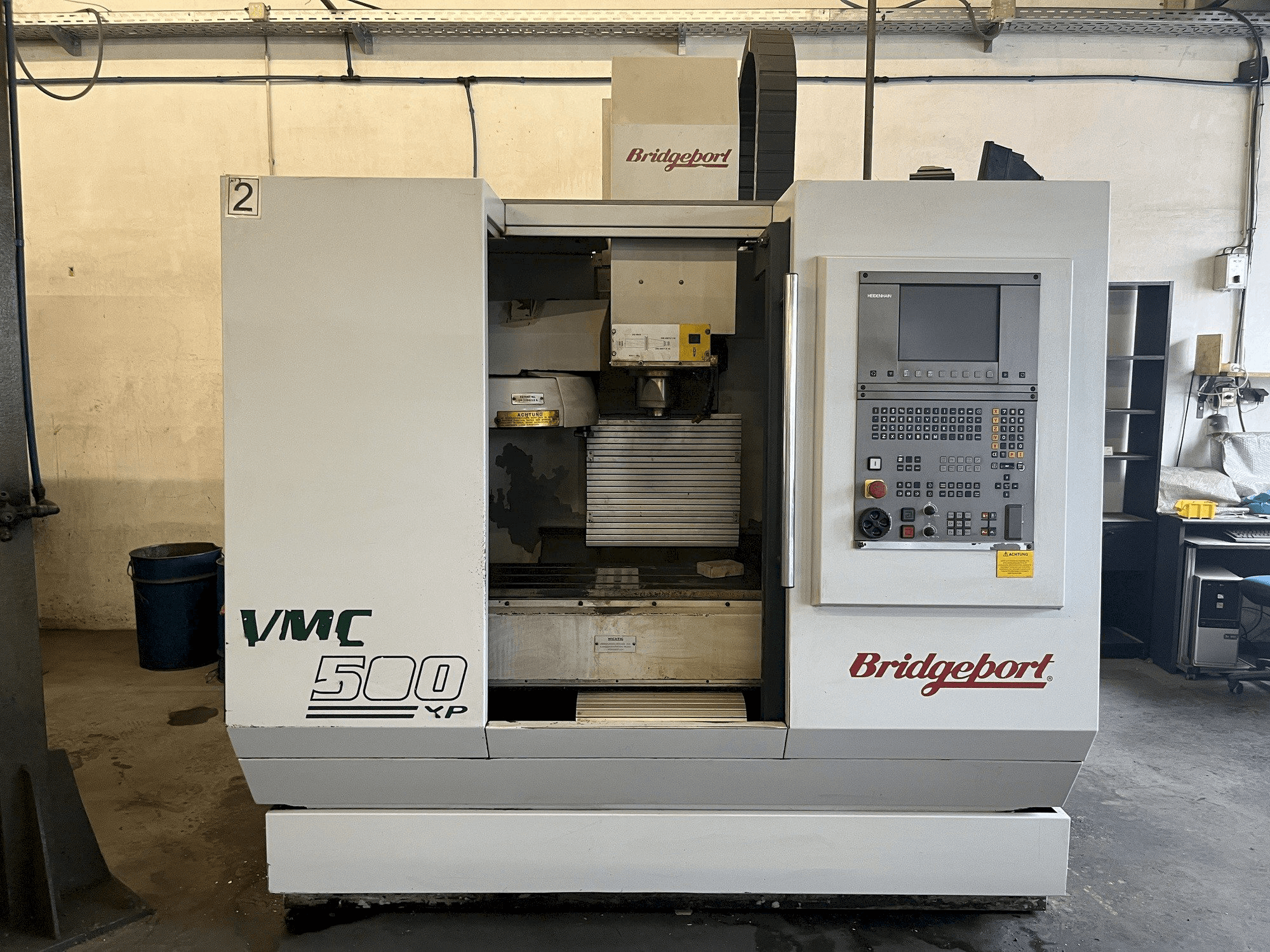

This Bridgeport VMC500XP Vertical Machine Center was made in the year 2001 in the United Kingdom. It is equipped with a Heidenhain TNC 410 M control unit. The machine has a spindle speed of 40 - 7000 rpm. Milling, drilling, boring, countersinking, reaming, threading, and for 3D machining.

Overview

brand: Bridgeport
year: 2001
MODEL: VMC500XP
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC500XP

Control Unit

Model: TNC 410M
Brand: HEIDENHAIN

Main drive

Spindle speed range: 40 - 7000 1/MIN
Spindle motor power: 10 kW/400/oED

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 32 m/min
Y-AXIS Movement: 340 mm
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 840 mm
Outer width: 360 mm

Tools

Type of tool holder: sk40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - With tool changer for 18 tools as well as standard equipment and cnc control
- - Rigid tapping (synchronized tapping)
- - Automatic tool changer
- - High dynamic digital drives
- - High-load profiled feeders in the x/v axis precision flat feeders in the z axis
- - Acceleration: 4. 6 m/s2
- - Comfortable equipment
- - Central control panel for machine and cnc control
- - Electronic handwheel, switchable for x, y,z axis
- - Working area full protection electrically secured
Qualitative Machine Benefits:
- - Working area low voltage light
- - Coolant system with high delivery rate
- - Two-color painting, light gray/moss green ral 7035/6005
- - Pre- and fine-fiiter system, 25 µ

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
