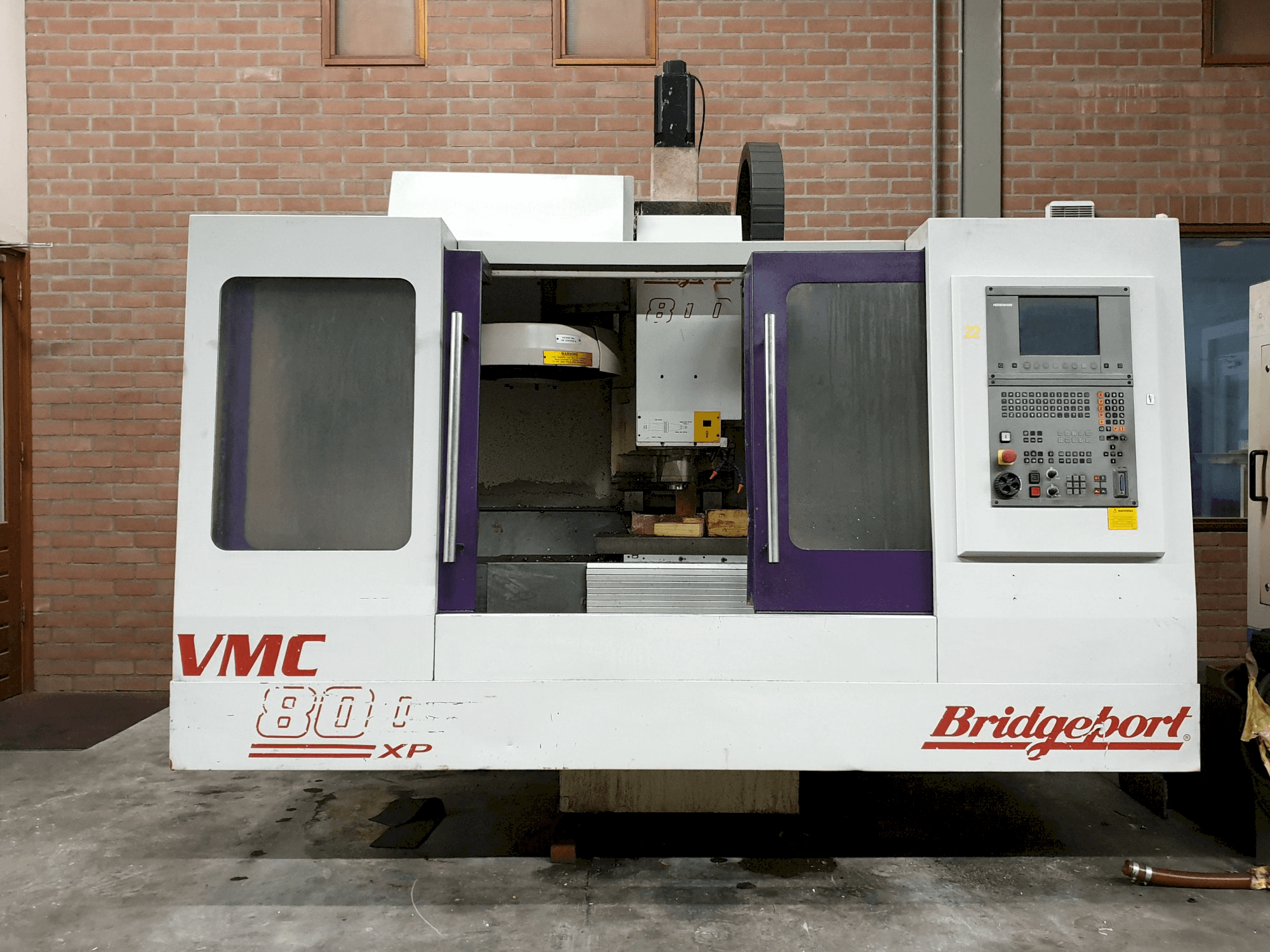

Bridgeport VMC 800 22 Vertical Machining Center

Show in original language

This Bridgeport VMC 800 22 Vertical Machining Center was made in 2001 in United Kingdom and counts with 32400 working hours since then. Operated through a Heidenhain TNC 410 Control unit and a high speed machining software, this machine incorporates a thermal compensation. It has a high quality built-in with hand scraped grey cast iron.; along with a hardened and ground square steel ways on X, Y and Z axes. It presents very good conditions, as it has been given maintenance by Bridgeport itself.

Overview

brand: Bridgeport
year: 2001
MODEL: VMC 800 22
production hours: 32400
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 800 22

General Data

Measurements width: 2980 mm
Measurements depth: 2200 mm
Measurements height: 2570 mm
Machine weight: 3750 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 410
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1000 mm
Outer width: 490 mm

Tools

Slots in storage: 22
Max weight: 6 kg
Max tool diameter: 130 mm
Max tool length: 250 mm

Media

Main electronic connection: 420 V
Power consumption: 20 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
