Bridgeport VMC 600XP

Show in original language

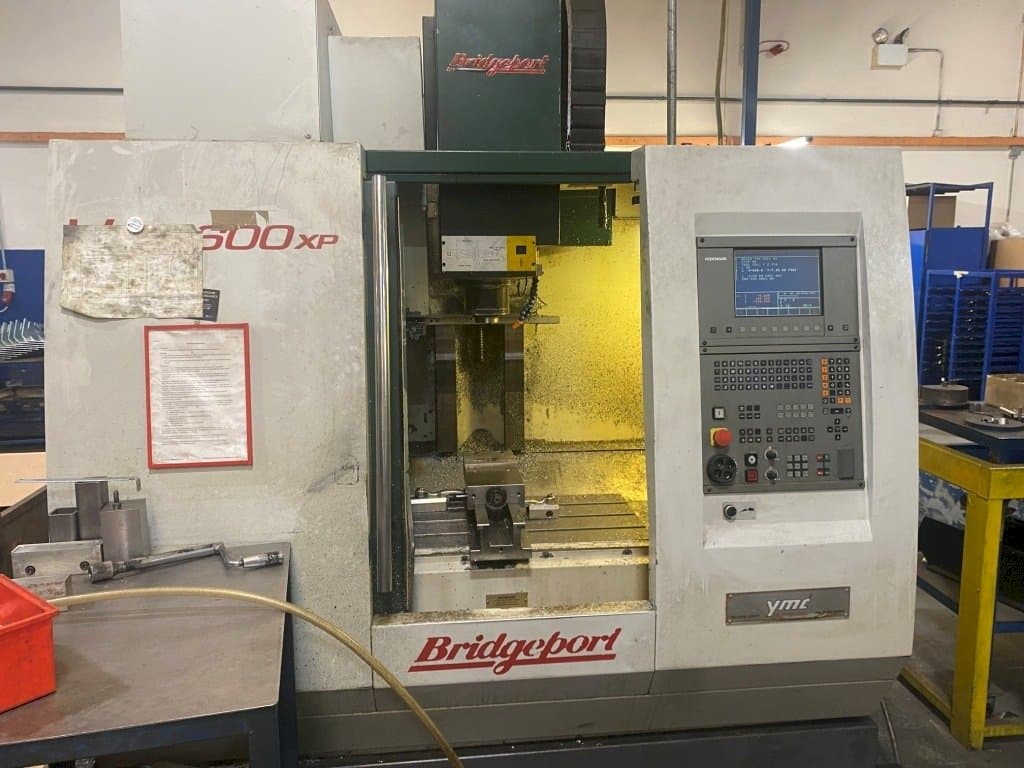

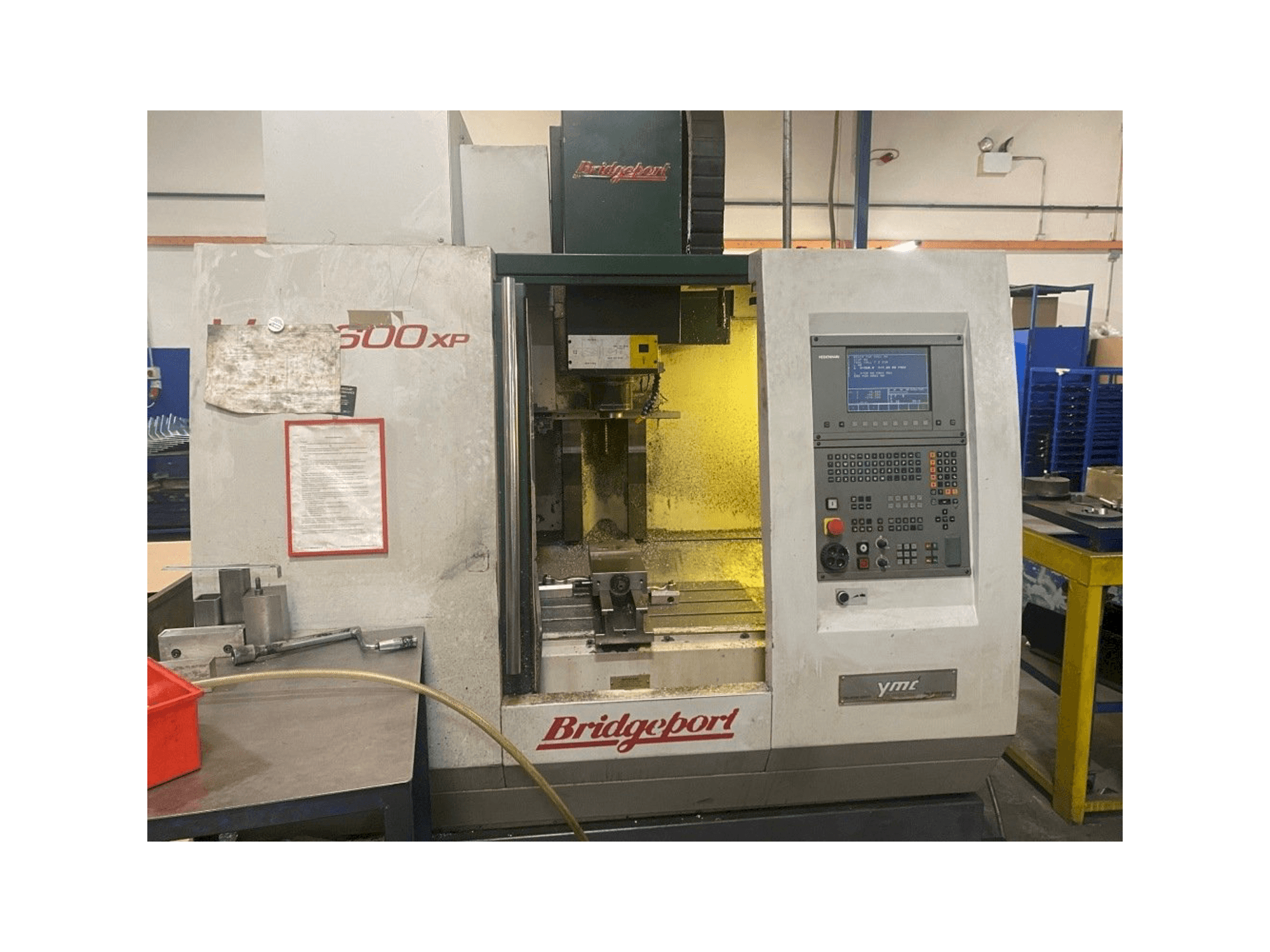

This Bridgeport VMC 600XP Vertical Machining Center was manufactured in 2002 in United Kingdom. It is operated through a HEIDENHAIN TNC426 control unit. This 3 axis machine operates with a spindle speed up to 6000 rpm. It has mainly worked in the manufacturing of subcontract parts.

Overview

brand: Bridgeport
year: 2002
MODEL: VMC 600XP
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 600XP

General Data

Measurements width: 2000 mm
Measurements depth: 2020 mm
Measurements height: 2535 mm
Machine weight: 2700 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC426
CNC main language: ENGLISH
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 10 KW
Number of axis: 3

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 410 MM
Z-AXIS Movement: 520 MM

Workpiece

Workpiece weight: 500 KG

Table

Outer length: 840 MM
Outer width: 425 MM

Tools

Slots in storage: 30
Max weight: 6 KG
Max tool diameter: 75 MM
Max tool length: 250 MM
Type of tool holder: BT40

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional equipment

- Swarf conveyor
- 5 x Tool Holders

Additional Information

Machine history

Material type: Mildsteel
End product: Subcontract parts
Industries: Various industries

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
