Bridgeport EZ TRAK DX II Milling Machin

Show in original language

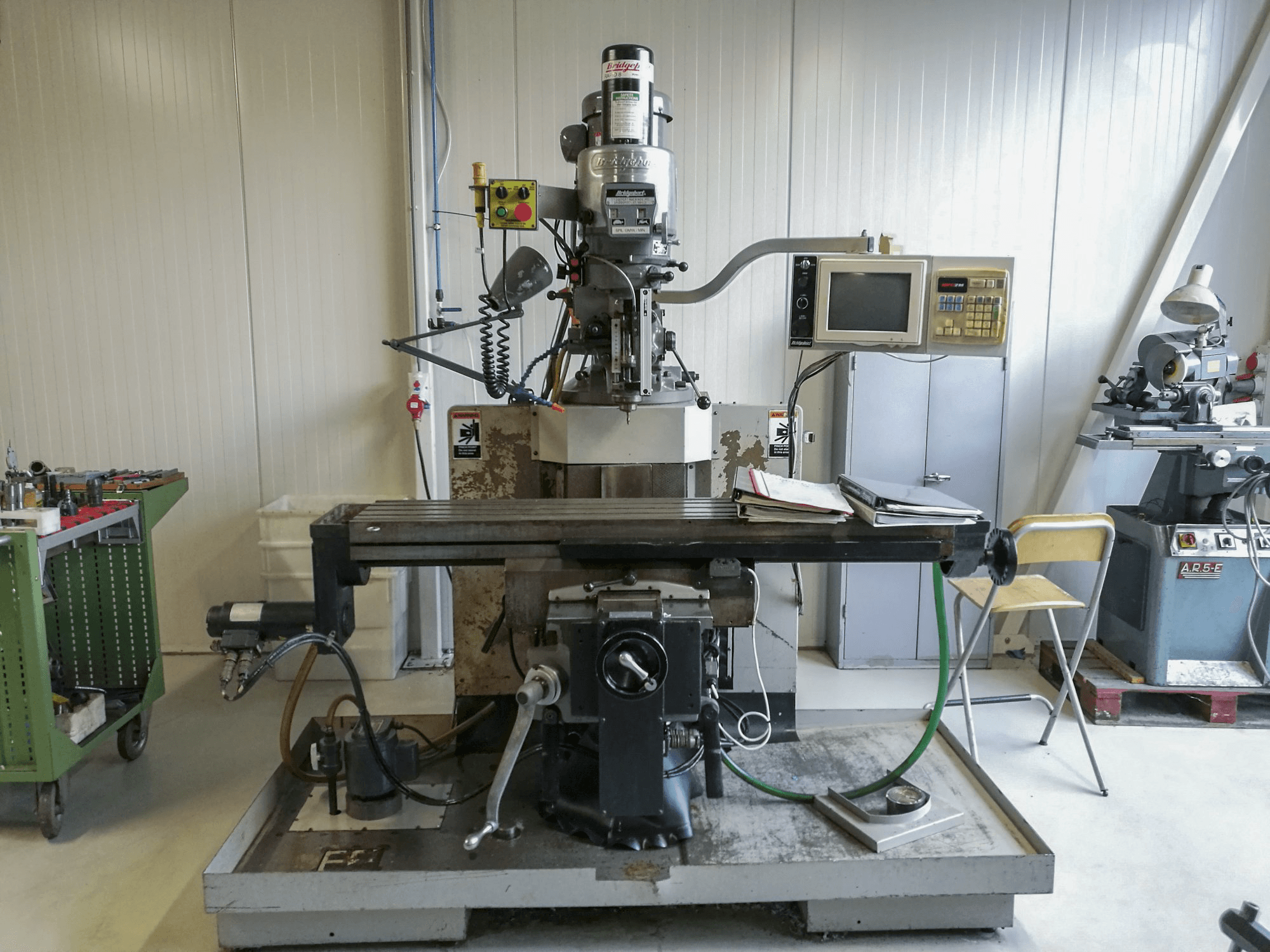

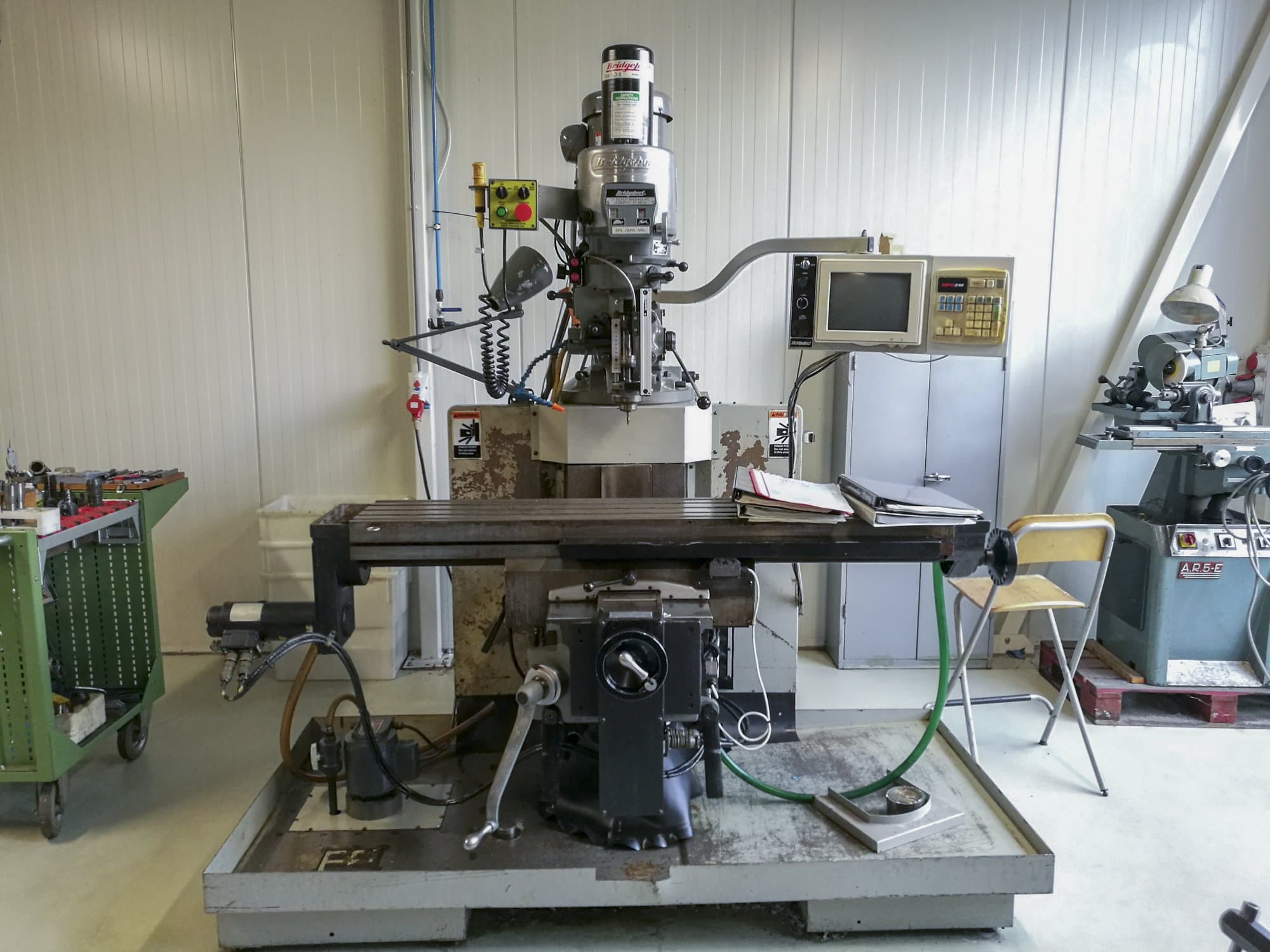

This Bridgeport EZ TRAK DX II Milling Machine was produced in 2001 in the United States and has been operative for approximately 23000 production hours. With a Bridgeport BPC2M Control unit, this model offers a big table size, a high power spindle and has been inspected frequently.

Overview

brand: Bridgeport
year: 2001
MODEL: EZ TRAK DX II
production hours: 23000
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Bridgeport EZ TRAK DX II

General Data

Measurements width: 2500 mm
Measurements depth: 2200 mm
Measurements height: 2100 mm
Machine weight: 2130 kg

Control Unit

Model: BPC2M

Main drive

Number of spindles: 1
Spindle speed range: 4200 1/min

Movement

X-AXIS Movement: 810 mm
Y-AXIS Movement: 368 mm
Z-AXIS Movement: 305 mm

Workpiece

Workpiece drm: 48 mm
Workpiece x: 432 mm
Workpiece y: 300 mm
Workpiece z: 127 mm
Workpiece weight: 340 kg

Table

Outer length: 1473 mm
Outer width: 279 mm

Tools

Max weight: 12 kg
Max tool diameter: 32 mm
Max tool length: 260 mm

Media

Main electronic connection: 380 V
Power consumption: 20 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
