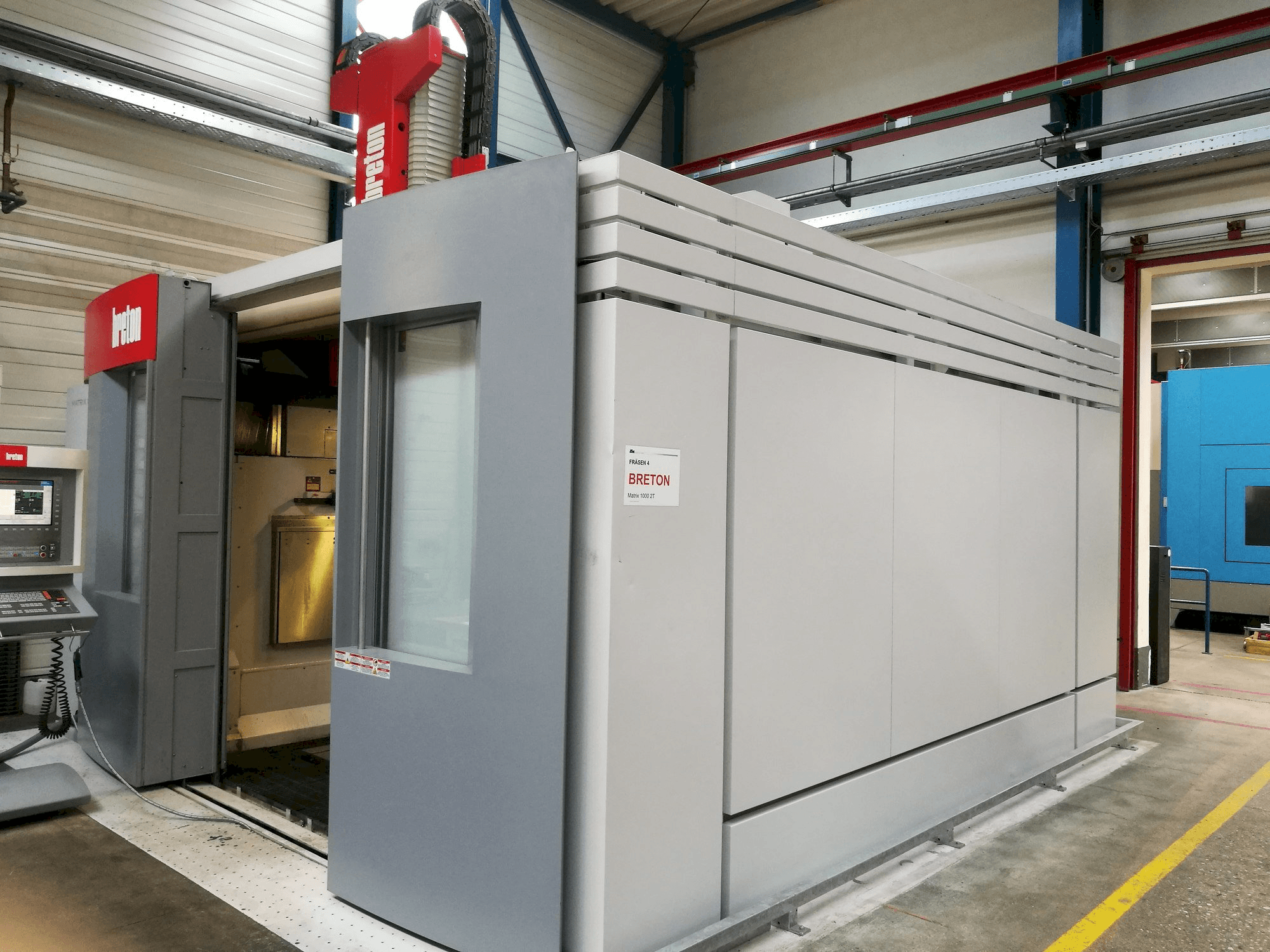

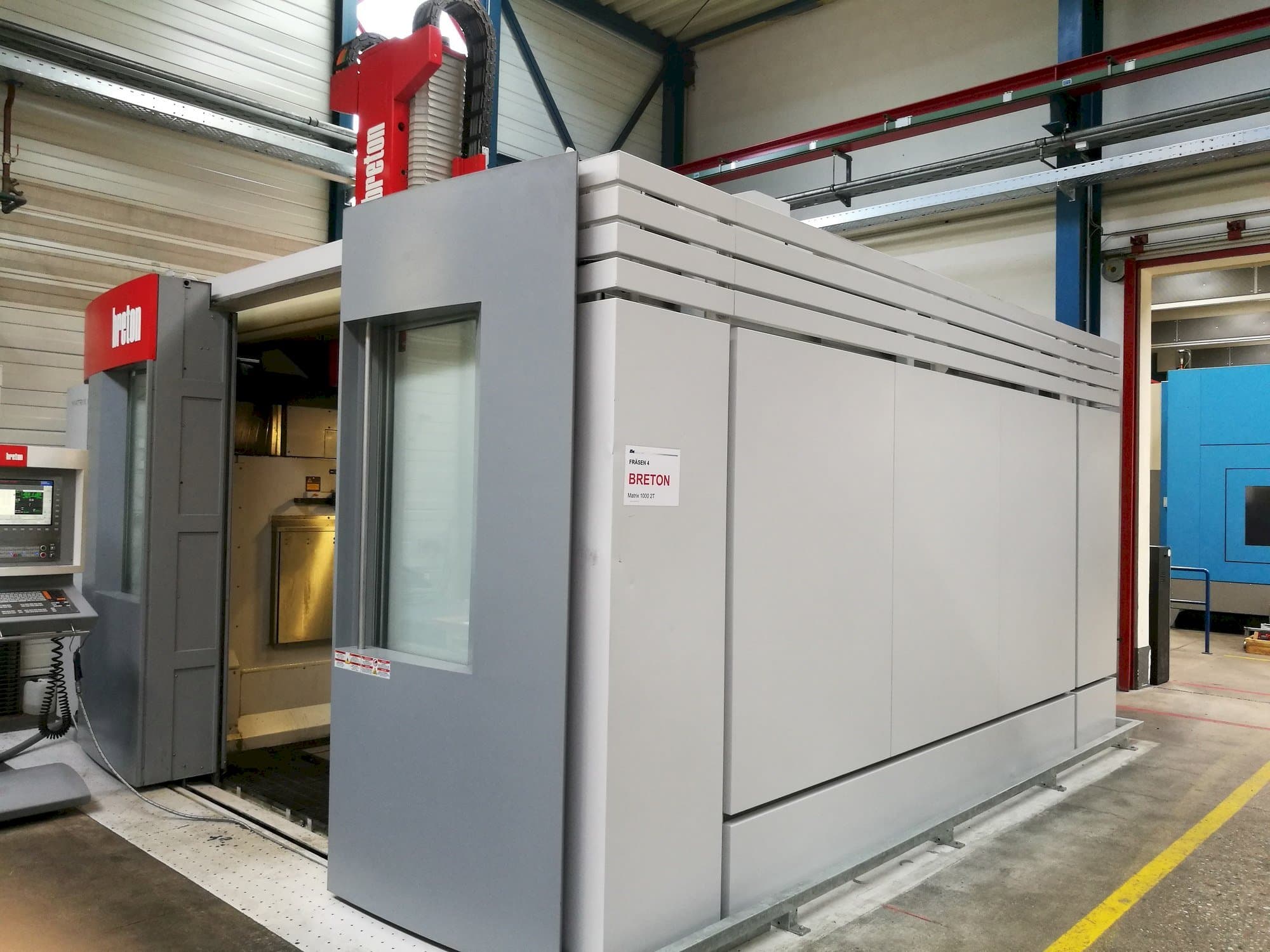

Breton Matrix 1000 2T DY Machining Center

Show in original language

This Breton Matrix 1000 2T DY Machining Center from 2012 was manufactured in Italy. It has a working history of 27556 production hours since then. It is operated through a Heidenhain TNC 530 control unit. This machine can works with a spindle speed range up to 18000 rpm. During the past, this Breton has mainly worked with aluminium and was well serviced. It includes a double chip conveyor, a 1000 l cooling fluid tank, a laser tool measuring systems.

Overview

brand: Breton
year: 2012
MODEL: Matrix 1000 2T DY
production hours: 27556
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Breton Matrix 1000 2T DY

General Data

Measurements width: 5700 mm
Measurements depth: 5300 mm
Measurements height: 5300 mm
Machine weight: 33000 kg

Control Unit

Model: TNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1000 mm
A-AXIS Movement: minus 105°, plus 120° MM
C-AXIS Movement: endless MM

Workpiece

Workpiece weight: 100000/m2 KG

Table

Outer length: 3000 mm
Outer width: 2000 mm
Number of tslots: 5x 22 H7/11
Distance between: 225 mm

Tools

Slots in storage: 60
Max weight: 10 kg
Max tool diameter: 90 (140) mm
Max tool length: 300 mm
Type of tool holder: HSK63A

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Double chip convoyer
- 1000 l cooling fluid tank
- High pressure cooling 40bar
- Laser Tool Measuring System (BLUM)
- Workpiece Measuring System
- Smog/Fog extraction system
- 3 clamping blocks

Additional Information

Machine history

Material type: Aluminium
End product: Moulds
Industries: Moulding industry

Machine Benefits

Technical Machine Benefits:
- - 5 axes simultan
- - 2016 - new spindle (gmn)
- - Big table and wide range of moving
- - Turning capabilities
Qualitative Machine Benefits:
- - Very good conditions
- - Well serviced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
