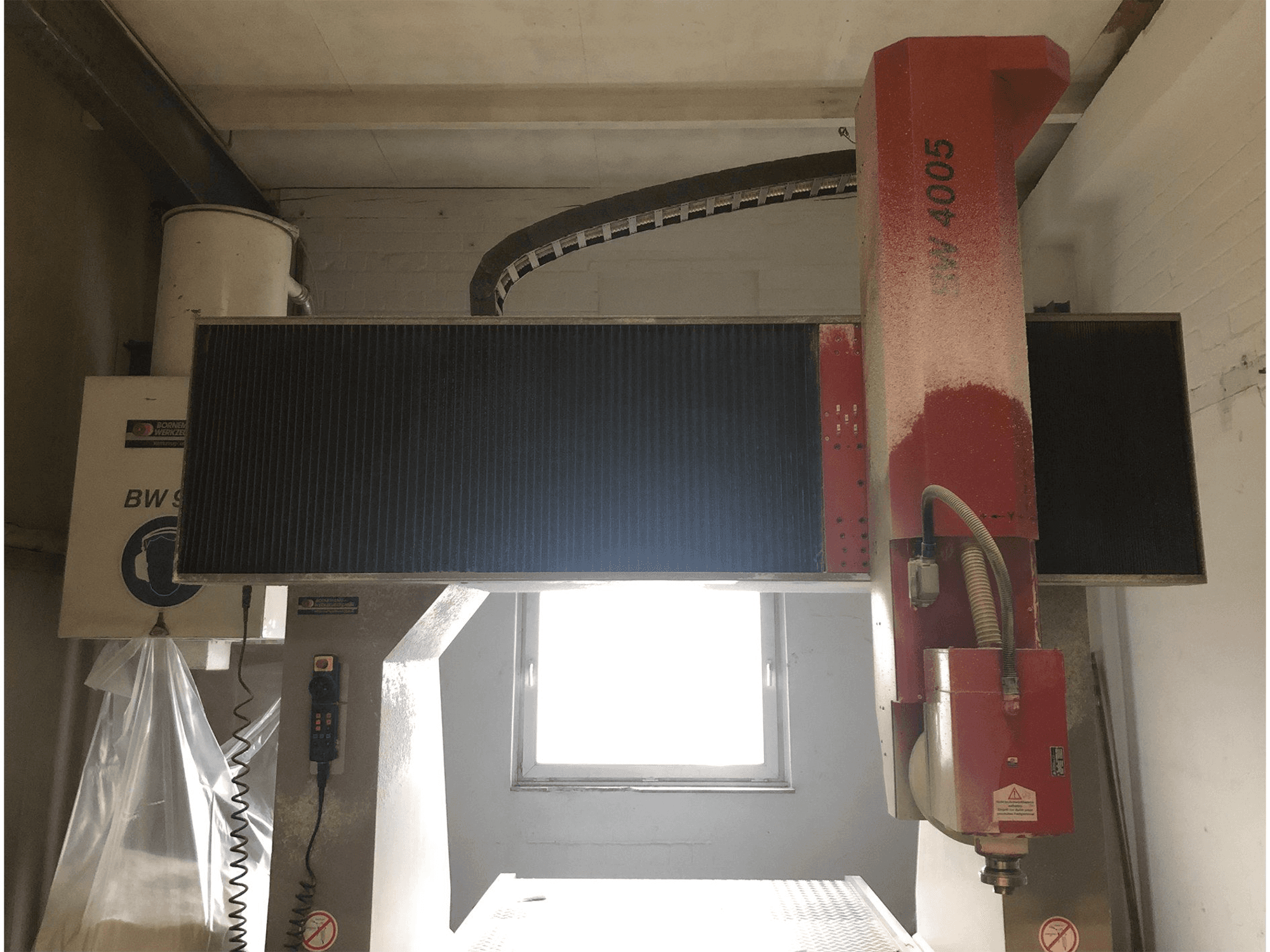

BORNEMANN BW 4005 Milling Machine

Show in original language

This BORNEMANN BW 4005 Milling Machine was manufactured in the year 1998 en Germany. This machine operates through a HEIDENHAIN control unit. It has a spindle speed up to 5965 rpm and a table dimmension of 3000 x 1675 mm. Maintenance book included.

Overview

brand: BORNEMANN
year: 1998
MODEL: BW 4005
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold

Technical Information - BORNEMANN BW 4005

General Data

Machine weight: 11000 kg

Main drive

Spindle speed range: 5965 1/MIN

Movement

X-AXIS Movement: 2400 mm
Y-AXIS Movement: 1800 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 3000 mm
Outer width: 1675 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Axis speeds x/y/z: 20 m/min
- - Power: 8 kw
- - Voltage: 400 v
- - Current: 16 a
Qualitative Machine Benefits:
- - Maintenance book included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
