Bokö MF1 Milling Machine

Show in original language

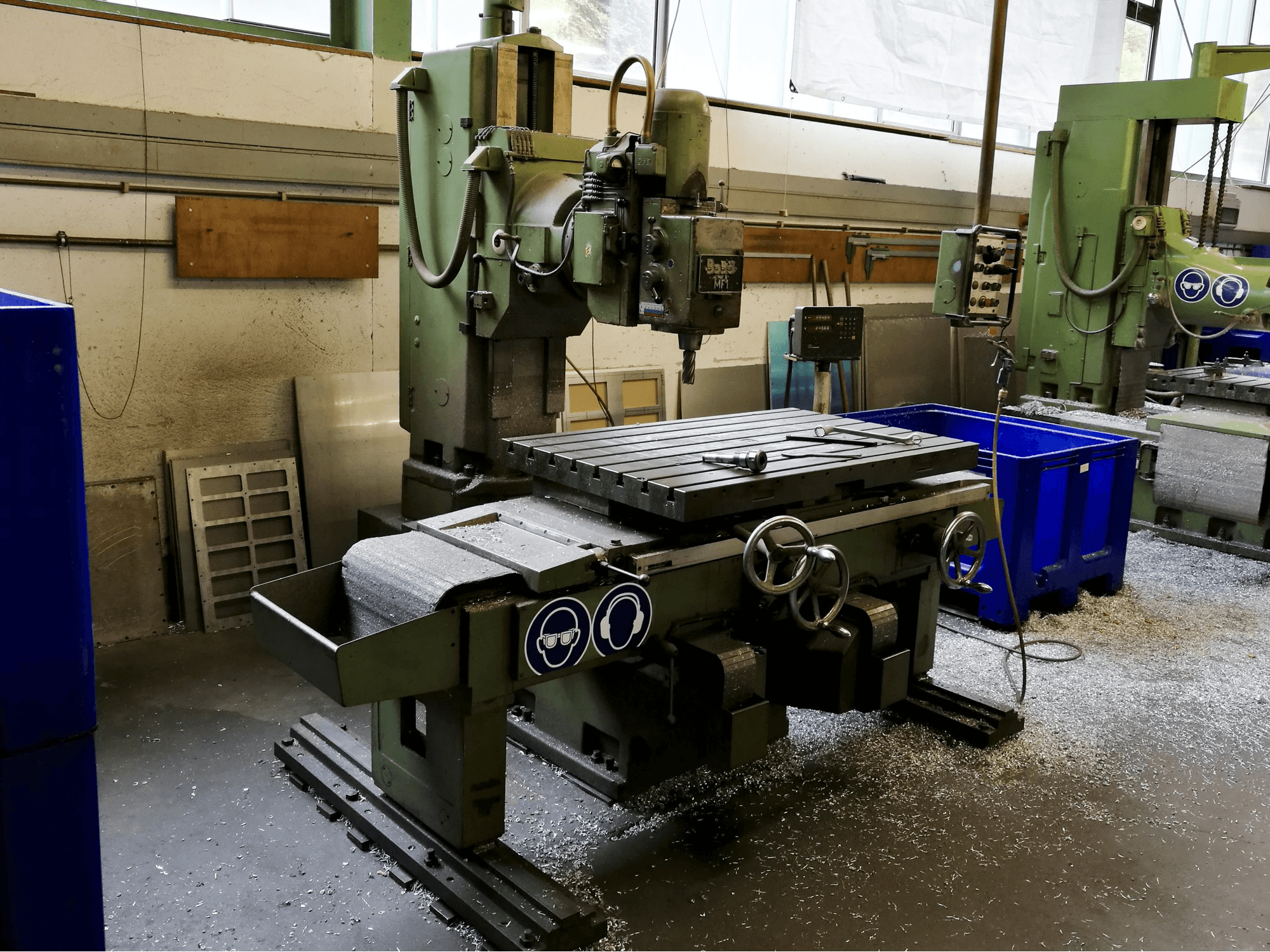

This Bokö MF1 Milling Machine was manufactured in 1976 and has an estimated production record of 86000 working hours. This machine is a perfect fit for almost every working space thanks to its compact design, and has worked most of its active time only with aluminium.

Overview

brand: Bokö
year: 1976
MODEL: MF1
production hours: 86000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - Bokö MF1

General Data

Measurements width: 2030 mm
Measurements depth: 2470 mm
Measurements height: 2245 mm
Machine weight: 3200 kg

Main drive

Number of spindles: 1
Spindle speed range: 45-2800 1/min
Spindle motor power: 6 kW
Tool taper: MK 40

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 26-1100 mm/min
X-AXIS Rapid traverse: 1600 mm/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 26-1100 mm/min
Y-AXIS Rapid traverse: 1600 mm/min
Z-AXIS Movement: 600 mm
Z-AXIS Working Feed: 7-350 mm/min
Z-AXIS Rapid traverse: 500 mm/min
C-AXIS Movement: 360° MM
C-AXIS Working Feed: 32-1350 mm/min
C-AXIS Rapid traverse: 2000 mm/min

Table

Outer length: 1000 mm
Outer width: 630 mm
TSlots size: 18 mm
Number of tslots: 6

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
