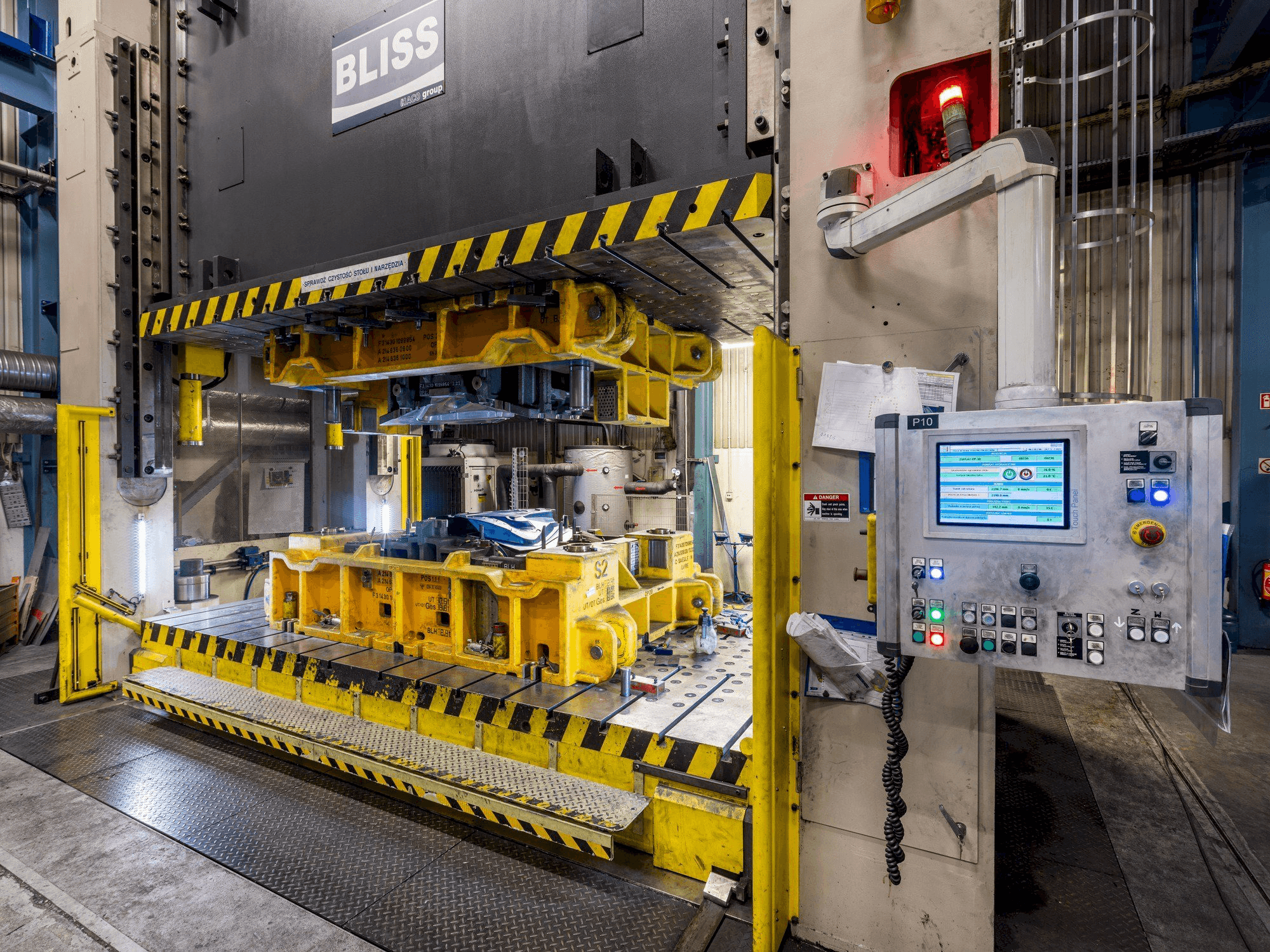

BLISS-BRET - PHD 1500PL-OTH-BLI-2017-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum slide stroke: 1400 mm
  • - Master cylinders 2: (570/545 mm)
  • - Maximum distance slider from table: 2200 mm ,minimum distance slider from table: 800 mm
  • - Front distance between columns: 5250 mm
  • - Lateral distance between columns: 1500 mm lateral distance between piston rods: 1150 mm
  • - Slider plate dimensions (left / right x front /back): 5000 x 2500 mm
  • - Slide approach speed: 350 mm/s ,adjustable working speed: 0 to 24 mm/s
  • - Maximum working speed at 1500t 11. 7 mm/s return speed: 250 mm/s
  • - Cushion strength: 5000 kn ,cushion stroke: 300 mm, cushion area stroke: 4350 x 1850 mm
  • - Pin spacing: 150x150 mm
• Qualitative Machine Benefits:
  • - Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
  • - Adjustable speed down: 0 to 60 mm/s , adjustable speed up 0 to 60 mm/s
  • - Cushion strength: 5000 kn ,cushion stroke: 300 mm ,cushion area stroke: 4350 x 1850 mm
  • - Pin spacing: 150x150 mm
  • - Number of slots for cushion pins: 308 pcs ,average cushion pins: 50 mm
  • - Hydraulic drive for maintaining parallelism
  • - Slider/bottom + vibration damping slider / table parallelism function yes
  • - Vibration damping function during detection yes
  • - Parallelism cylinders on press bed 4 x 2250 kn, stroke of parallelism cylinders 150
  • - Movable table plate
