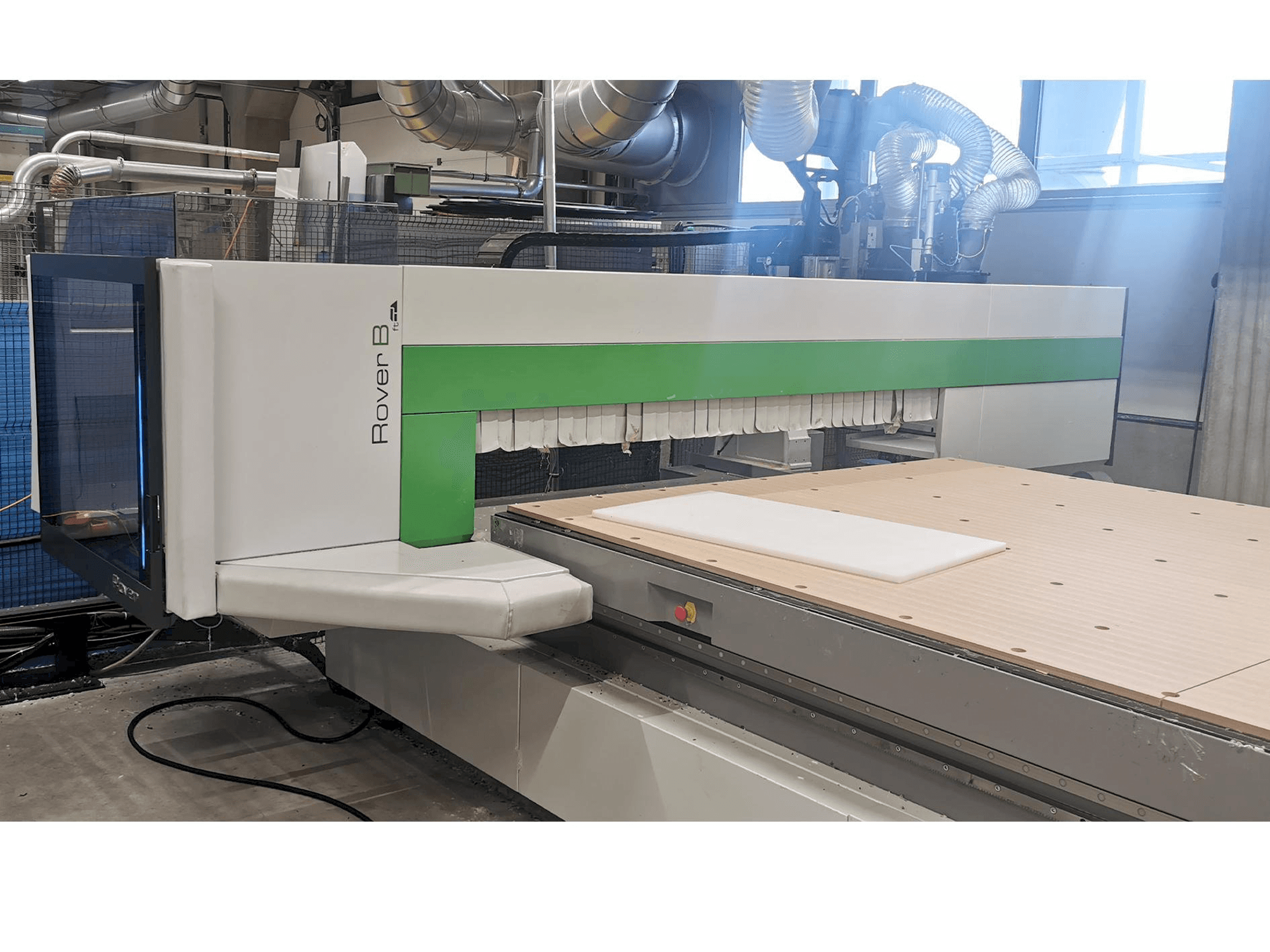

BIESSE ROVER B FT 2264 Milling machine

Show in original language

This BIESSE ROVER B FT 2264 Milling machine was manufactured in Italy in 2016. It is operated through a Bsolid Bsuite3 control unit. This 5 axis machine is suitable for wood or aluminium. It works with a motor power of 11 kW and a spindle speed up to 12000 rpm. It is in top condition, no drilling gear option.

Overview

brand: BIESSE
year: 2016
MODEL: ROVER B FT 2264
application type: Milling
Location: Finland
machine type: Gantry Milling Machine
availability: Sold

Technical Information - BIESSE ROVER B FT 2264

General Data

Machine weight: 400 KG

Control Unit

Model: Bsuite3

Main drive

Number of spindles: 1
Number of axis: 5

Movement

X-AXIS Movement: 6400 mm
Y-AXIS Movement: 2200 mm

Tools

Slots in storage: 15
Type of tool holder: HSK F 63

Media

Main electronic connection: 400V / 50Hz
Power consumption: 63 kVA

Additional Information

Machine history

Material type: Plastics

Machine Benefits

Technical Machine Benefits:
- - Motor power (s1) 11 kw / 12. 000 r/min
- - Motor power (s6) 13 k” / 12. 000 r/min
- - C-axis, continous movement 0-306, 12,4 r/min
- - Z-axis programmable movement 430 mm
- - Z-axis movement speed 30 m/min
- - Workspace x = 6450 mm; y = 2205 mm; z = 200 mm (5 axis milling unit)
- - The machine has bsolib -software.
Qualitative Machine Benefits:
- - In top condition
- - Bsolid basemodul + dwg – stl – iges import (2d and 3d)
- - Bsolid modeling module (3d modeling)
- - Bsolid engraving module (2d engraving)
- - Bsolid 5-axis machining
- - Bnest nesting module

Extra information

- The machine is suitable for wood or aluminium.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
