➤ Used Battenfeld HM 8000/4500 + 4500 BMB 4 For Sale

Show in original language

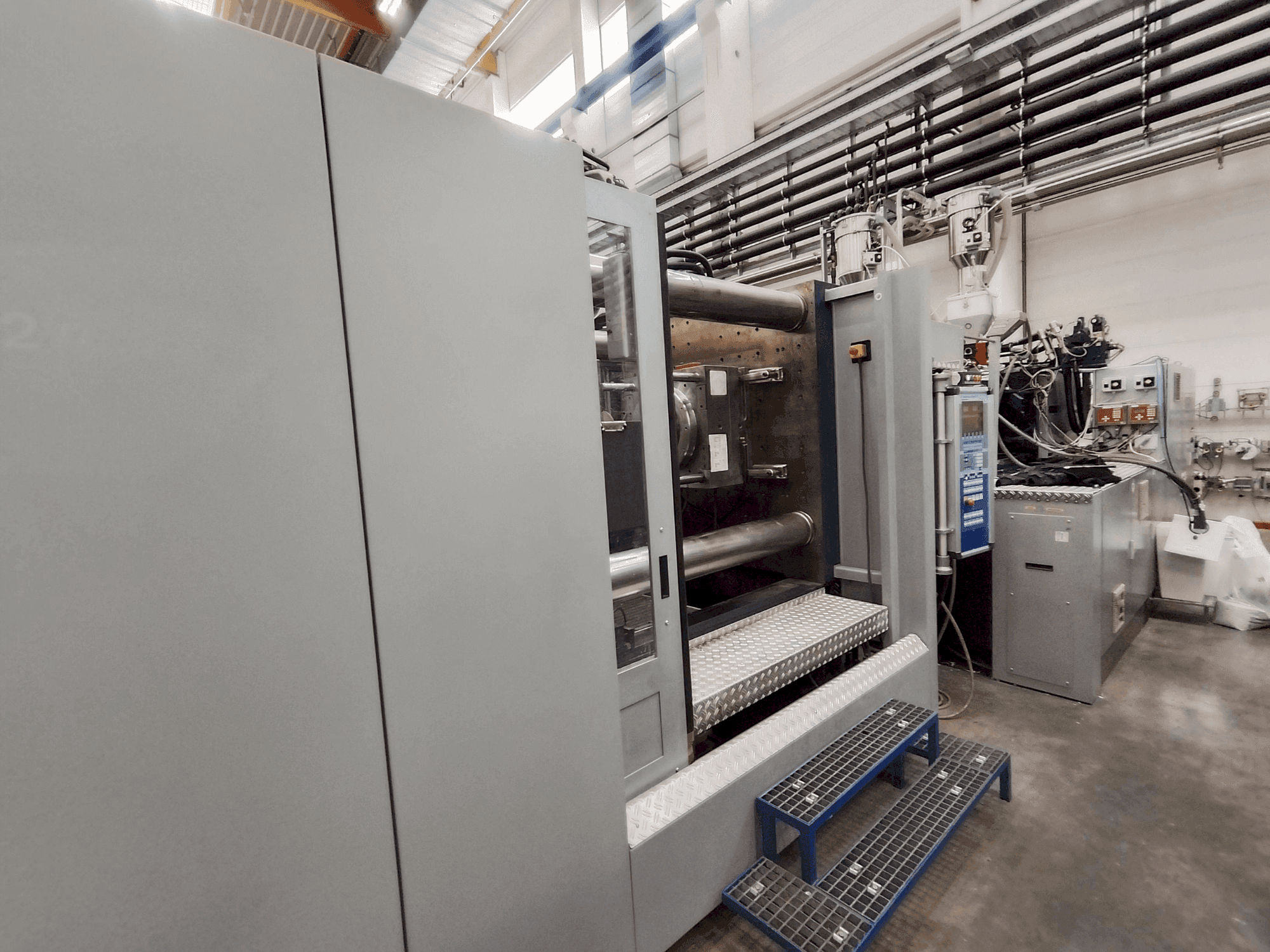

This Battenfeld HM 8000/4500 + 4500 BMB 4 was manufactured in 2006. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this Battenfeld HM 8000/4500 + 4500 BMB 4 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: Battenfeld
year: 2006
MODEL: HM 8000/4500 + 4500 BMB 4
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Battenfeld HM 8000/4500 + 4500 BMB 4

Injection Unit

Screw diameter: 100 mm

Clamping unit

Clamping force: 800 t KN
Max open daylight: 2225 mm
Distance between bars: 1120 mm
Mould height min: 500 mm
Mould height max: 1175 mm
Size of mold platens: 784 mm
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection units: 2 // injection capacity 1: 3338 cm³ // injection capacity 2: 2412 cm³
- - Platen size vert: 1530 mm
- - Centering ring: 250-250 mm
- - Clamping screws: m24
- - Nozzle radius: r40 mm
- - Mold weight max: 8520 kg
- - Type ejector connector: bfa standard
- - Core puller: 3/1
- - Cooling circuit: 12/12
- - Needle catch: 12

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
