- AXILE G8 Vertical Machining Center

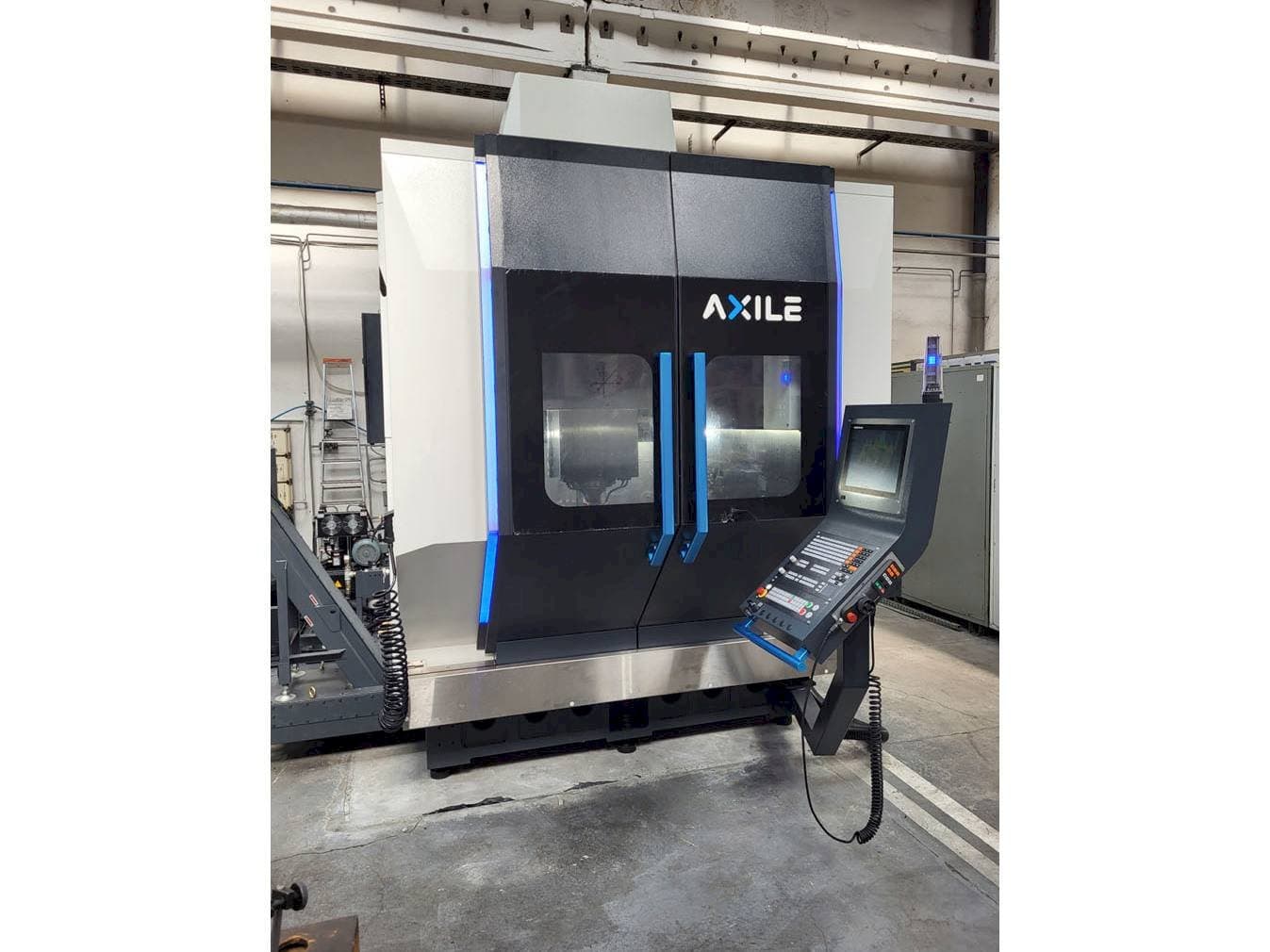

This AXILE G8 Vertical Machining Center was made in the year 2021 and has 3624 hours. It is equipped with a HEIDENHAIN TNC 640 control unit and has 5 axis. The machine has a spindle speed of 15000 rpm.
Overview
- brand: AXILE
- year: 2021
- MODEL: G8
- production hours: 3624
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - AXILE G8
General Data
- Measurements width: 3395 mm
- Measurements depth: 4275 mm
- Measurements height: 3779 mm
- Machine weight: 18000 kg
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 640
Main drive
- Spindle speed range: 15000 1/MIN
- Spindle motor power: S1/S6-40% - 30/46 kW
- Tool taper: HSK A63
- Number of axis: 5
Movement
- X-AXIS Movement: 670 mm
- Y-AXIS Movement: 820 mm
- Z-AXIS Movement: 600 mm
Table
- Table load: 1300 kg
Media
- Power consumption: 85 kVA
Additional Information
- Technical Machine Benefits:
- - Table dim. : 800 mm
- - Max workpiece dim. : 920 mm
- - Max workpiece height: 500 mm
- - Cooling through the spindle: 20 bar
- - Surge protection system emc
- - Cooling system for the spindle and rotary table drives
- - Three guides for the z-axis
- - Optical rulers in x, y, z axes
- - Aac - axial accuracy control
- - Tpc - tool tip positioning control
- Qualitative Machine Benefits:
- - Dcm - dynamic collision monitoring
- - Heidenhain ts-740 workpiece probe
- - Blum laser probe for tools
- - Manual knob for settings, emc, ce certificate
- - Tools magazine: 32
- - Max tool size: dim 120 x 300 mm
- - A-axis movement: +120 / - 120 deg
- - C-axis movement: 360 deg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
