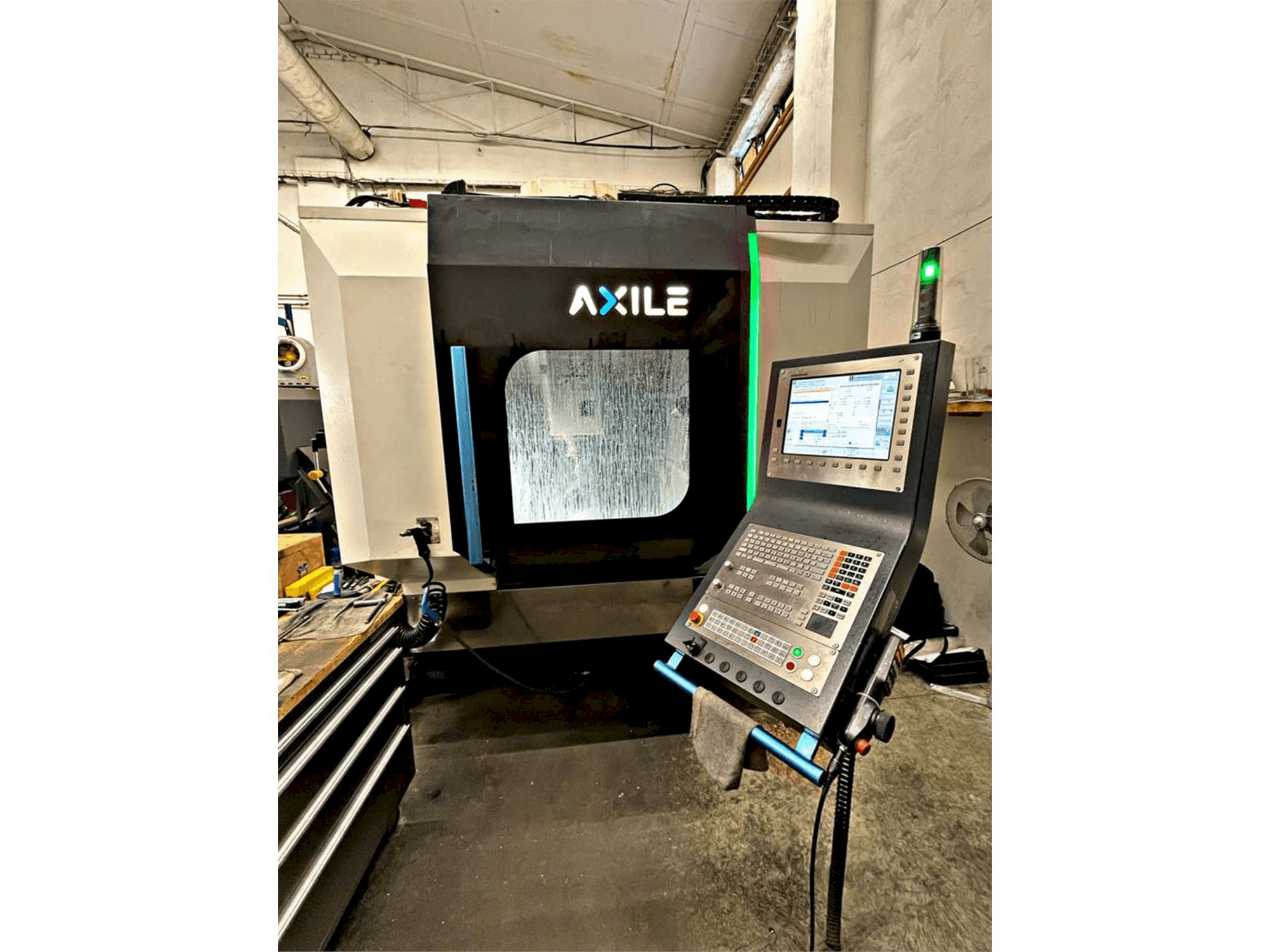

AXILE G6 Vertical Machining Center

Show in original language

This AXILE G6 Vertical Machining Center was manufactured in 2018 in Taiwan. It shows a production record of only 8063 hours of which 3315 are spindle hours.. It is operated through a Heidenhain TNC 640 control unit. This 5 axis machine works with a spindle speed up to 20000. Includes 80 pcs tool holders, clamps and chucks.

Overview

brand: AXILE
year: 2018
MODEL: G6
production hours: 8063
application type: Milling
Location: Czech Republic
machine type: Machining centers (vertical)
availability: Sold
control unit brand: Heidenhain

Technical Information - AXILE G6

General Data

Machine weight: 13000 kg

Control Unit

Brand: Heidenhain
Model: TNC 640

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Tools

Slots in storage: 80
Type of tool holder: HSK-A 63

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 80 pcs tool holders
- clamps + chucks+tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power 25/40 kw
- - Through spindle coolant 20 bar
- - Rotary table diameter 600 mm
- - Blum laser tool probe + heidenhain ts-74o + se640 workpiece probe
- - Direct drive table turnig (c axis) and swivelling (a axis)
- - Heidenhain kimenematics + reference ball
- - Dmc - dynamic collision monitoring, tpc- tool-tip positioning control
- - Svs - spindle vibration supervision, aac - axial accuracy control
- - Automatic roof for crane loading
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
