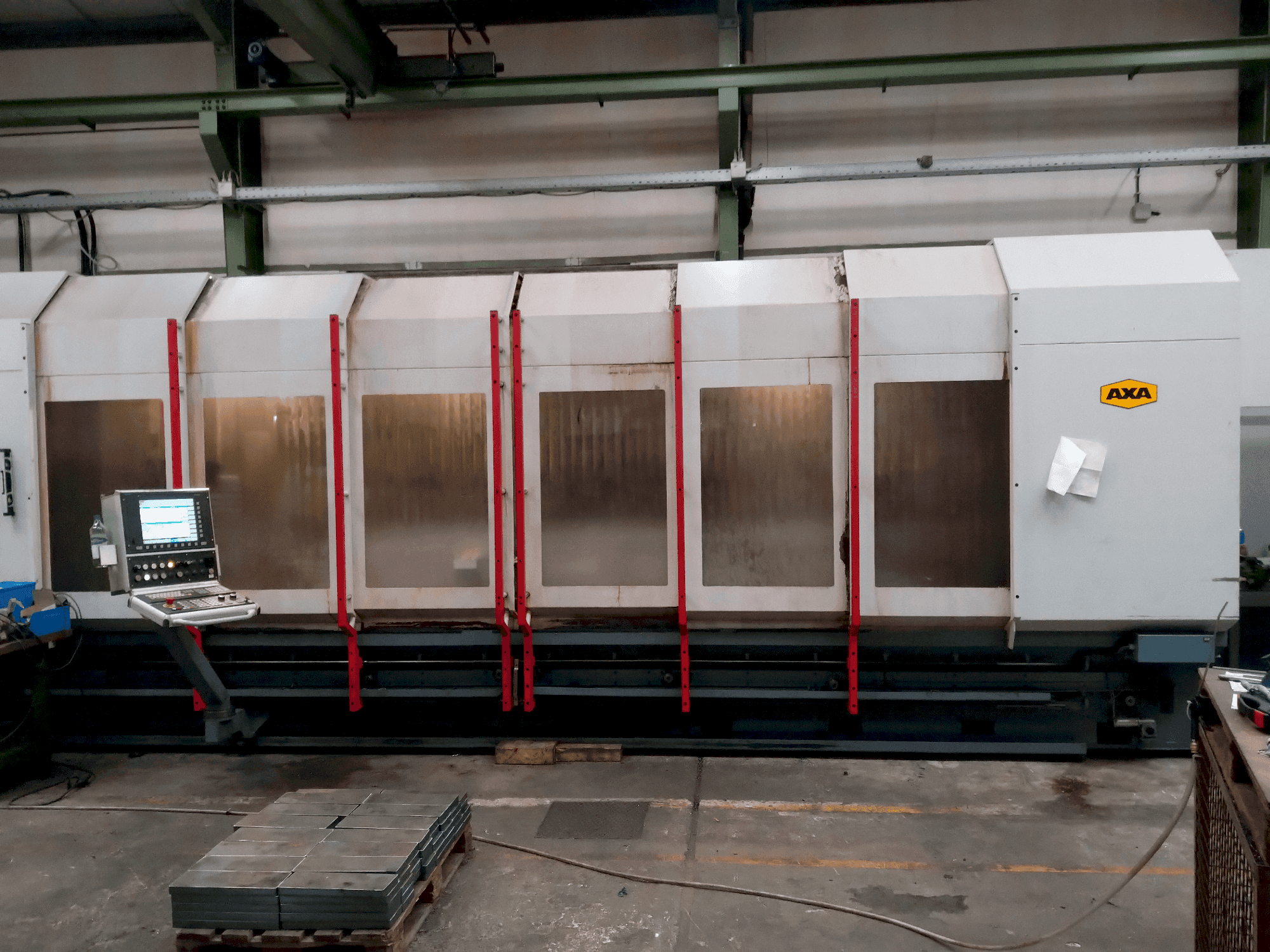

AXA VHC-2-5000-XTS-50 Travelling Column Milling Machine

Show in original language

This AXA VHC-2-5000-XTS-50 Travelling Column Milling Machine was manufactured in 2007 in Germany. It is equipped with a SIEMENS Sinumerik 840 D control unit and operates with a spindle speed range from 30 - 9000 rpm. The vertical working height is 0-740mm and the horizontal working height 250-1050mm. It has a SK50 tool taper and 104 tool slots. With a swivel range milling head +/-90 °, Renishaw RMP60 measuring probe, internal (also with air) and external cooling (with emulsion), it is a complete machine for various cutting operations.

Overview

brand: AXA
year: 2007
MODEL: VHC-2-5000-XTS-50
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - AXA VHC-2-5000-XTS-50

General Data

Measurements width: 9400 mm
Measurements depth: 3500 mm
Measurements height: 3300 mm
Machine weight: 23000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Spindle speed range: 30-9000 rpm 1/MIN
Spindle motor power: 45 kW
Tool taper: SK 50

Movement

X-AXIS Movement: 5000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Tools

Number of stations: 104

Media

Internal cooling: Yes

Additional equipment

- RENISHAW measuring probe RMP60

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel head +/- 90 degrees (stepless)
- - Internal and external cooling with emulsion
- - Internal cooling also with air
- - Working height vertical 0-740mm
- - Working height horizontal: 250-1050mm
- - Tool stations: 104

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
