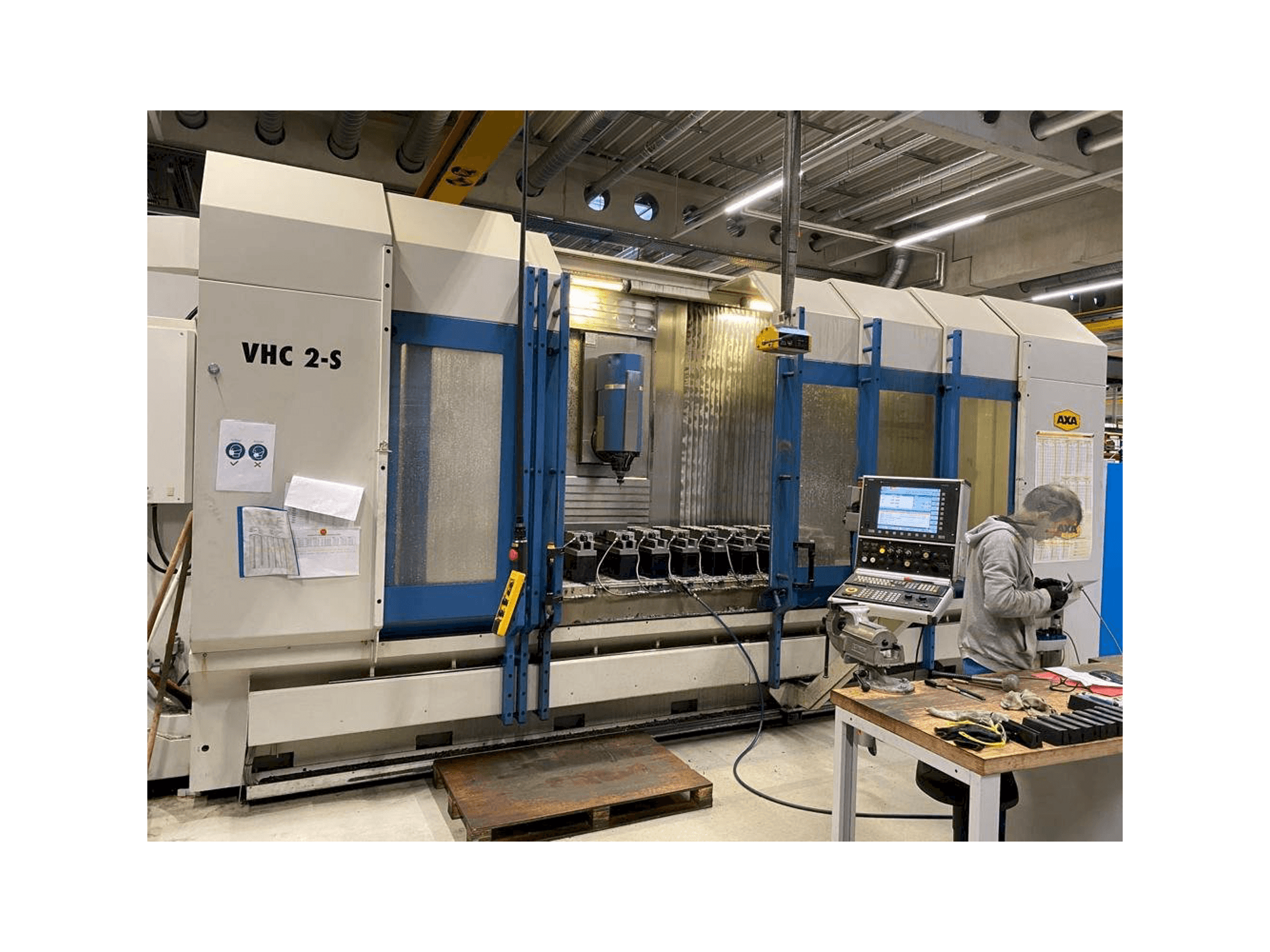

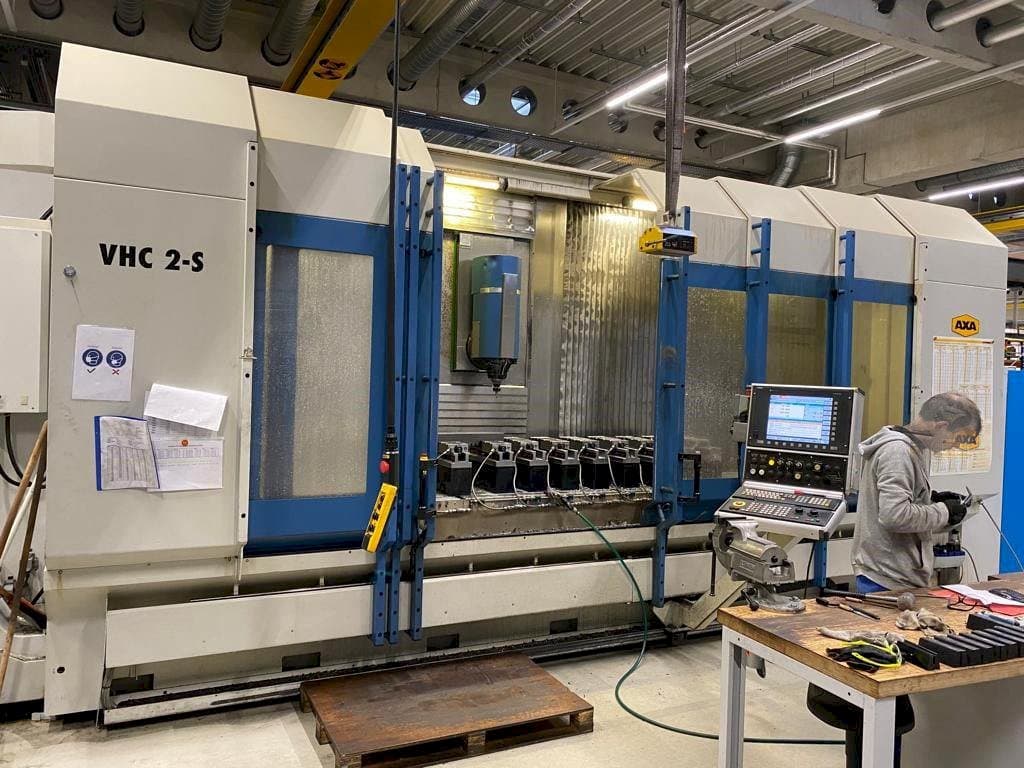

AXA VHC 2-3500 S horizontal machine center

Show in original language

This AXA VHC 2-3500 S horizontal machine center was made in the year 2006, was retrofitted with a reinforced spindle, overhaul performed by AXA in May/June 23 and has 30154 hours. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a spindle speed of 30 - 10000 rpm and 4 axis ( X, Y, Z and B).

Overview

brand: AXA
year: 2006
MODEL: VHC 2-3500 S
production hours: 30154
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - AXA VHC 2-3500 S

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 30 - 10000 1/MIN
Tool taper: SK40 DIN 69871 A
Number of axis: 4

Movement

X-AXIS Movement: 3500 mm
X-AXIS Rapid traverse: 40/40 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 40/40 m/min
Z-AXIS Movement: 800 mm hor / 770 mm vert
Z-AXIS Rapid traverse: 30 m/min
B-AXIS Movement: +/- 90° MM

Table

Outer length: 4000 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area: vertical - 0 to 770 mm, horizontal - 180 to 980 mm
Qualitative Machine Benefits:
- - The machine was retrofitted with a reinforced spindle. Overhaul performed by axa in may/june 23

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
