AWEA LP 4025 Milling Machine

Show in original language

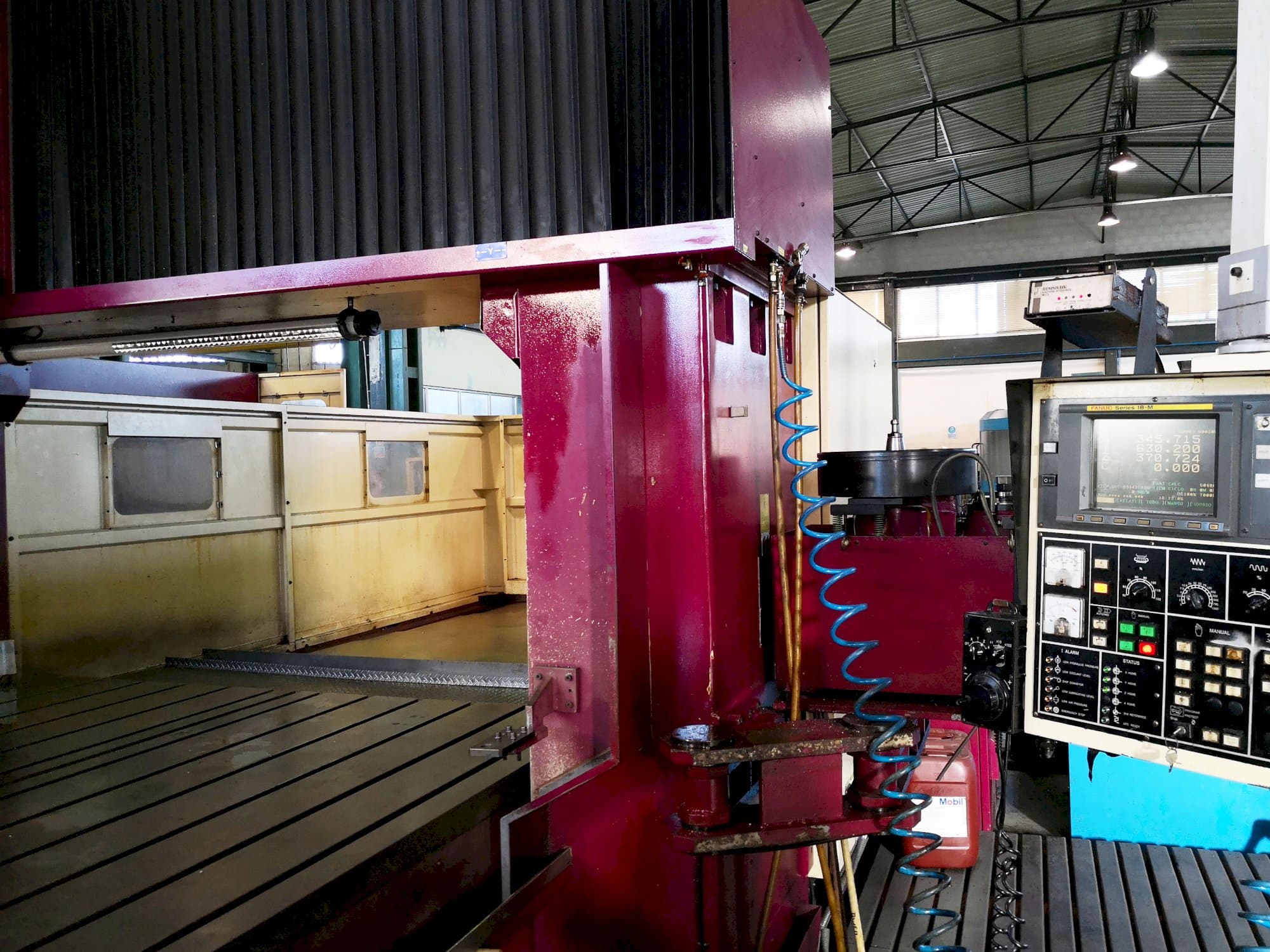

This AWEA LP 4025 Milling Machine was manufactured in Taiwan in 2003 and has a total working time of 23138 production hours. Operated through a FANUC 18M Control unit, this 2 spindle machine has mainly worked with steel for the automobile industry in the past. It stands out due to its angular head manual monitoring of 180º/350º and its arm support in the column. It counts with a cooling system through the tool.

Overview

brand: AWEA
year: 2003
MODEL: LP 4025
production hours: 23138
application type: Milling
Location: Portugal
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - AWEA LP 4025

General Data

Measurements width: 10200 mm
Measurements depth: 5900 mm
Measurements height: 4250 mm
Machine weight: 48000 kg

Control Unit

Model: 18M
Brand: FANUC

Main drive

Number of spindles: 2

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2600 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2600 mm
Workpiece z: 1000 mm
Workpiece weight: 15000 kg

Tools

Slots in storage: 60
Type of tool holder: BT50

Media

Main electronic connection: 380 V
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
