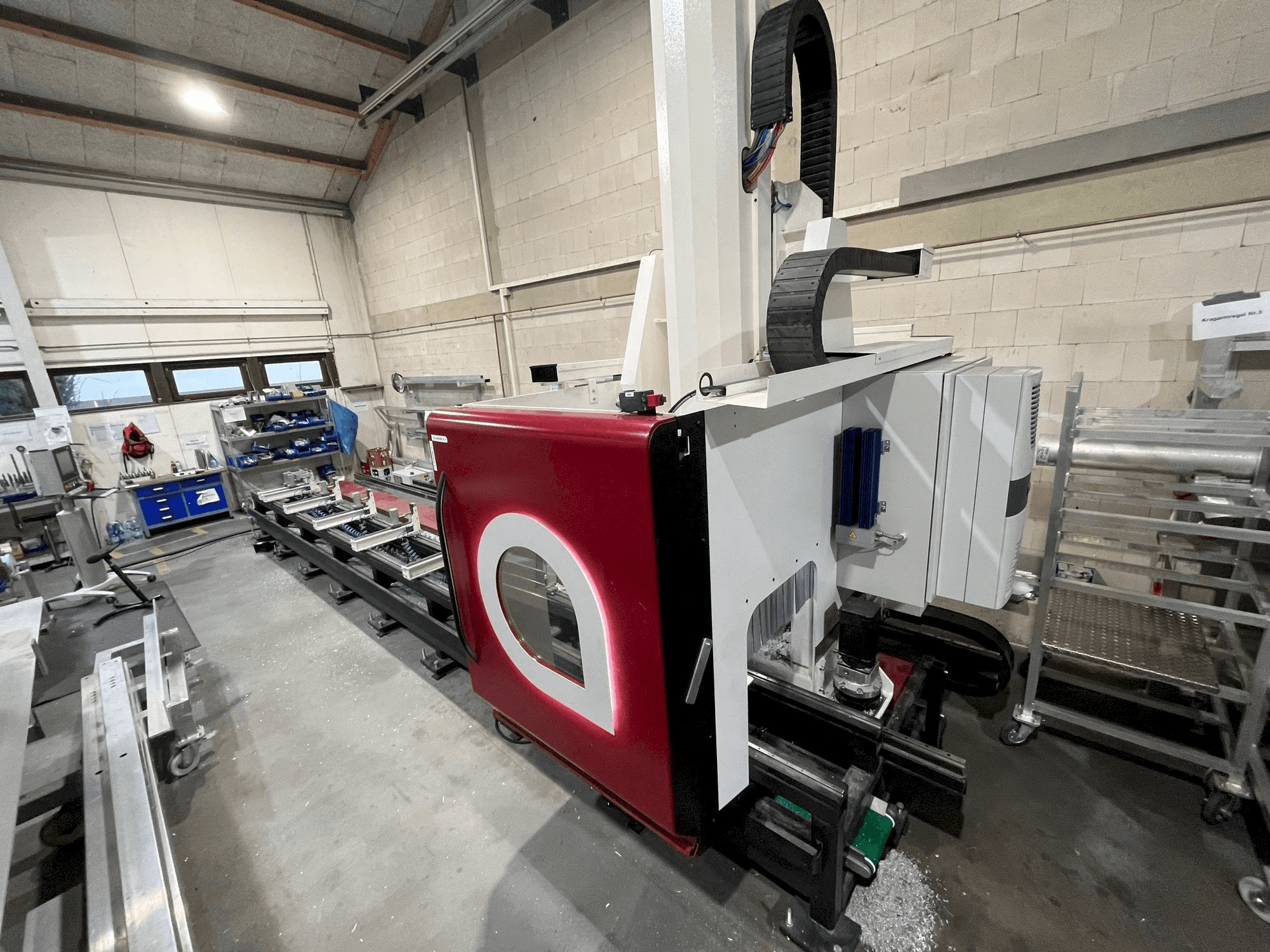

Austen AX 607 Vertical Machining center

Show in original language

This Austen AX 607 Vertical Machining center was manufactured in the year 2018. The machine has a spindle speed of 20000 rpm.

Overview

brand: Austen
year: 2018
MODEL: AX 607
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Austen AX 607

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 7000 mm
X-AXIS Rapid traverse: 90 m/min
Y-AXIS Movement: 2000 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece drm over bed: 385 mm
Workpiece drm over support: 410m

Media

Main electronic connection: 3 x 400V / 50Hz
Power consumption: 50kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Repeat accuracy c-axis +/-0. 1°. - repeat accuracy a-axis +/-0,1°. - repeat accuracy z-axis +/-0,lmm - y-axis repeatability +/-0. Lmm - repeat accuracy x-axis +/-0,lmm
- - 12 tool stations, fixture type hsk63e
- - Water cooling system
- - Automatic lubrication system
- - Aluminium profile machining
- - Light steel machining
- - High precision linear guide rails and carriages - light steel machining
- - Highly dynamic servo motors
- - Absolute encoder (linear axes) no homing required
- - Cooling unit for control cabinet
Qualitative Machine Benefits:
- - Laser safety scanner
- - 3 d programming system - 3d simulation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
