ATLANTIC - ATS 3006PL-SHE-ATL-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

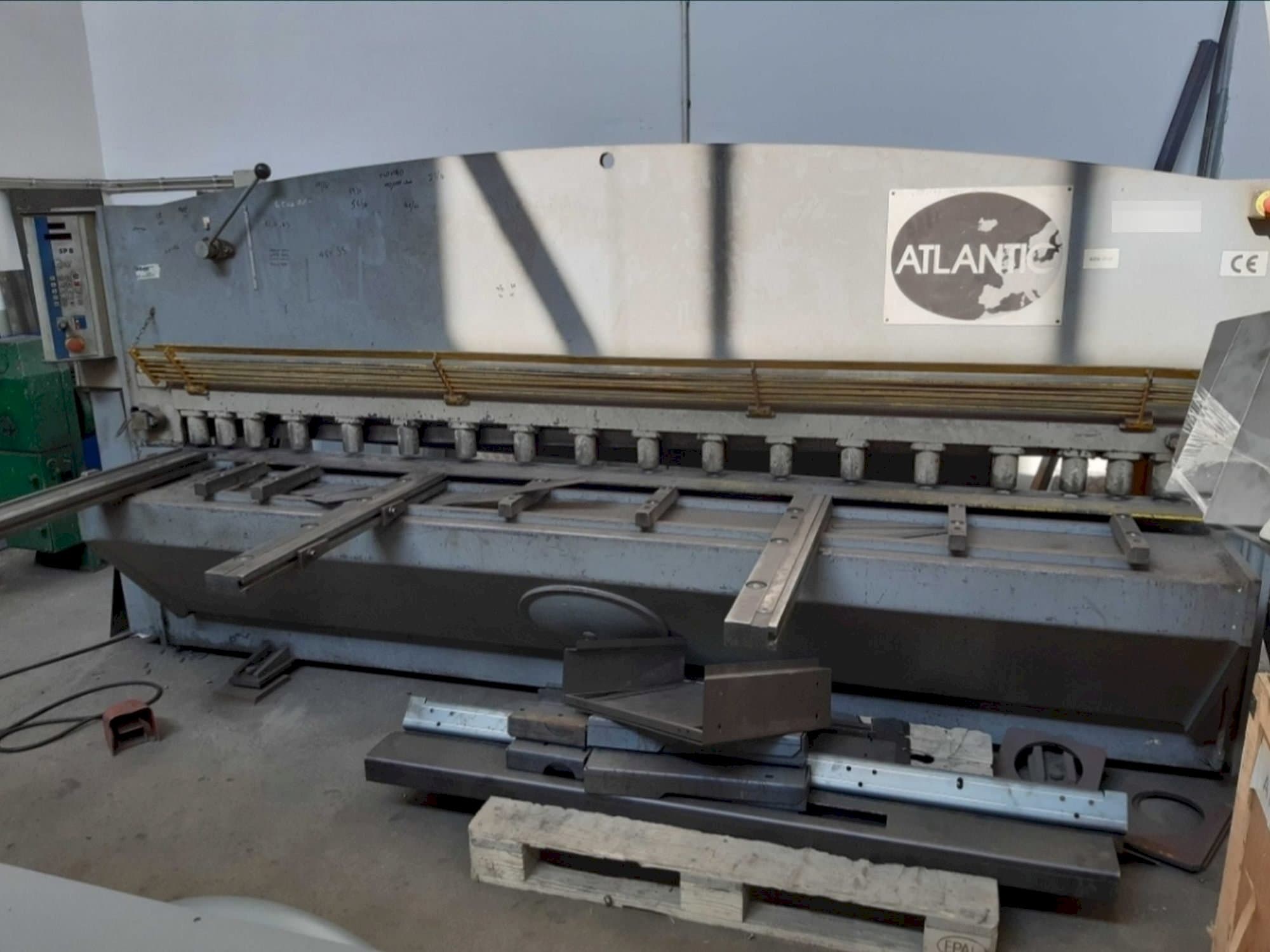

This ATLANTIC ATS 3006 shearing machine was made in the year 2004. It is operated through an Atlantic SP8 control unit. This machine works with a cutting angle 0.5 – 3.0 degree and a length of squaring arm 1000 mm. It includes as extra options support arms, an electric back gauge and a foot control. This machine is in good working conditions and ready for tests.

Overview

brand: ATLANTIC
year: 2004
MODEL: ATS 3006
application type: Shearing
Location: Poland
machine type: Hydraulic Shearing Machine
availability: Sold

Technical Information - ATLANTIC ATS 3006

General Data

Measurements width: 3850 MM
Measurements depth: 1600 MM
Measurements height: 1700 mm
Machine weight: 4500 kg

Control Unit

Model: SP8

Main drive

Number of strokes: 9 - 17 Hub/min

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 7.5 kW

Additional equipment

- Support arms
- Electric back gauge
- Foot control

Additional Information

Machine history

Material thickness: 6 mm

Machine Benefits

Technical Machine Benefits:
- - Max. Material width: 3000 mm
- - Distance between columns: 3050 mm
- - Cutting angle 0. 5 – 3. 0 deg.
- - Working height: 770 mm
- - Length of squaring arm: 1000 mm
- - Number of plate holders: 18 pcs
Qualitative Machine Benefits:
- - Machine in good working condition
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
