ARES R-450 Vertical Machining Center

Show in original language

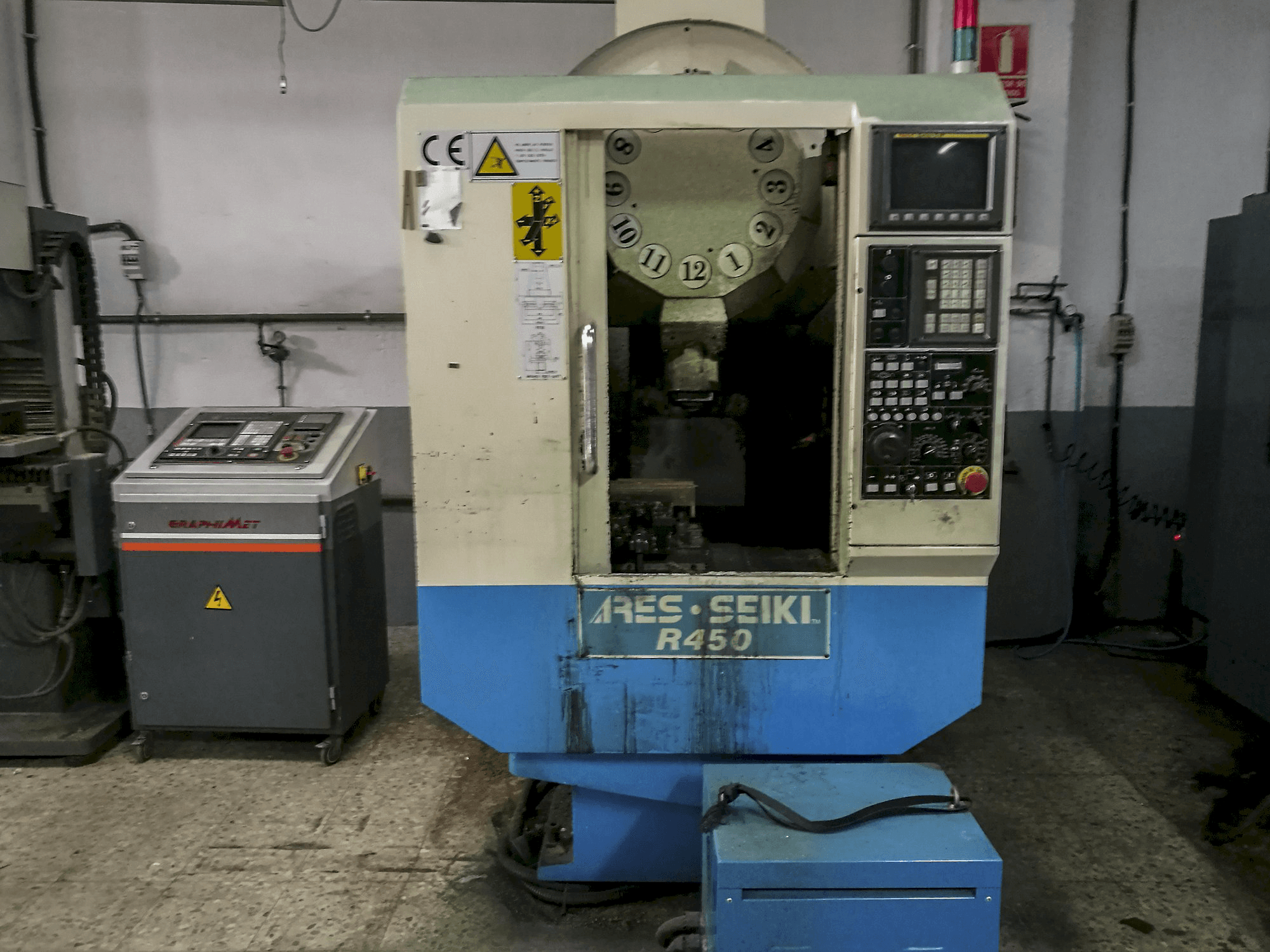

This ARES R-450 Vertical Machining Center was manufactured in Taiwan in 2000 and has an estimated production time of 20000 working hours. Equipped with a Fanuc Series O-M Control unit, this machine was handling mainly brass parts during the past and comes with a set of tools included in the delivery.

Overview

brand: ARES
year: 2000
MODEL: R-450
production hours: 20000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - ARES R-450

General Data

Measurements width: 1200 mm
Measurements depth: 2160 mm
Measurements height: 2380 mm
Machine weight: 2000 kg

Control Unit

Model: Series O-M
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 240-8000 1/min

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece x: 500 mm
Workpiece y: 320 mm
Workpiece z: 300 mm
Workpiece weight: 200 kg

Table

Outer length: 500 mm
Outer width: 320 mm
Number of tslots: 3
Distance between: 100 mm

Tools

Slots in storage: 12
Max weight: 3 kg
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: BT30

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
