- ARBURG ALLROUNDER CENTEX 470 C 1500-800 (2007) Injection moulding machine

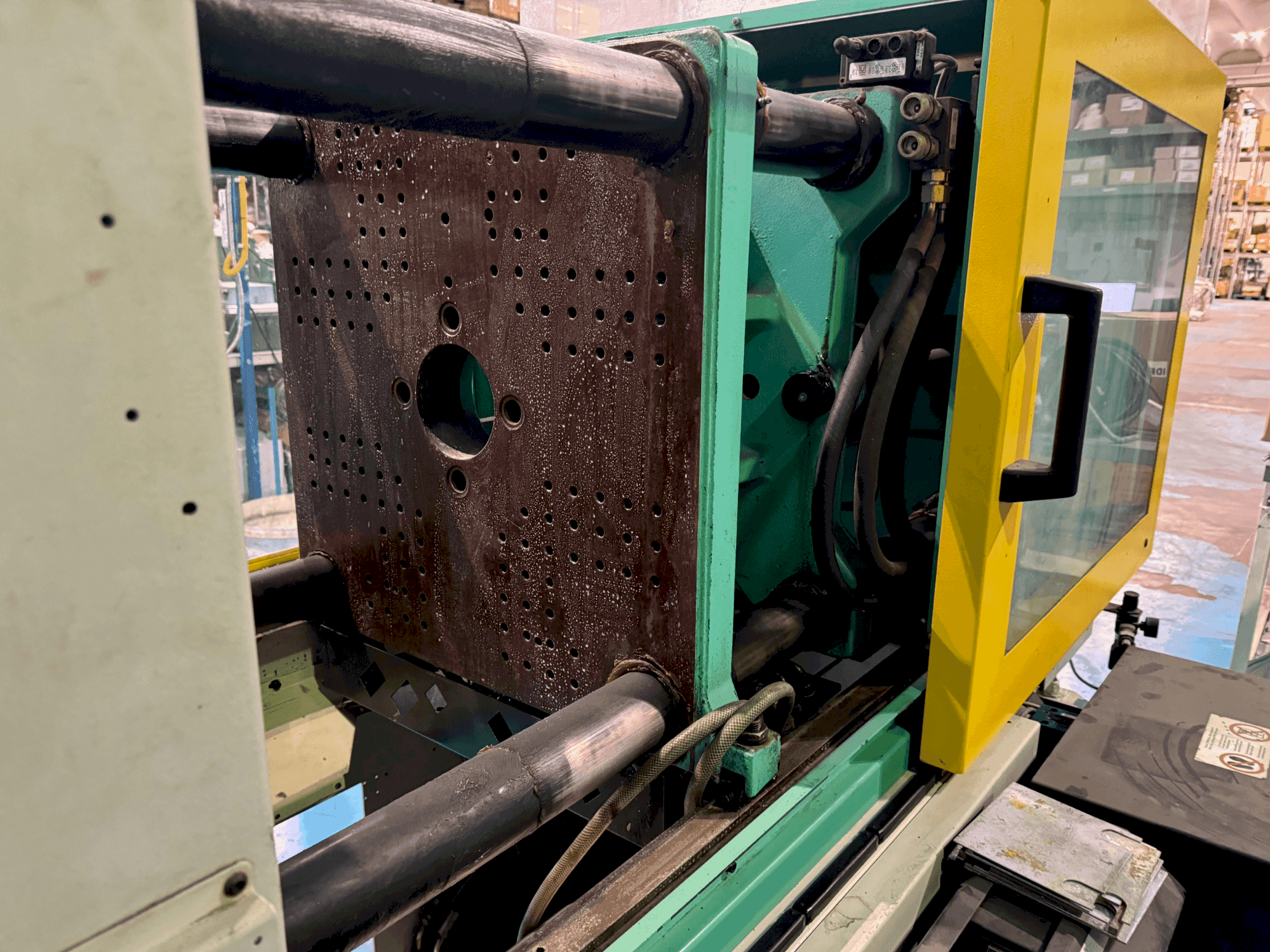

This ARBURG ALLROUNDER CENTEX 470 C 1500-800 Injection moulding machine was manufactured in 2007 in Germany. It has a clamping force of 1500 kN, an opening stroke of 650mm and is equipped with an injection unit with 50mm screw diameter. The plate dimensions are 715x715 mm and light between columns is 470 mm. It is still under power and can be inspected on-site anytime.
Overview
- brand: Arburg
- year: 2007
- MODEL: ALLROUNDER CENTEX 470 C 1500-800
- application type: Injection Moulding
- Location: Italy
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg ALLROUNDER CENTEX 470 C 1500-800
General Data
- Machine weight: 5400 kg
Injection Unit
- Screw diameter: 50 mm
- Heating capacity: 14.9 kW
Clamping unit
- Clamping force: 1500 kN
- Opening stroke: 650 mm
- Max open daylight: 470 mm
- Size of mold platens: 715 x 715 mm
Media
- Main electronic connection: 400 V 3 ~ 50 Hz
- Pump drive power: 22 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
