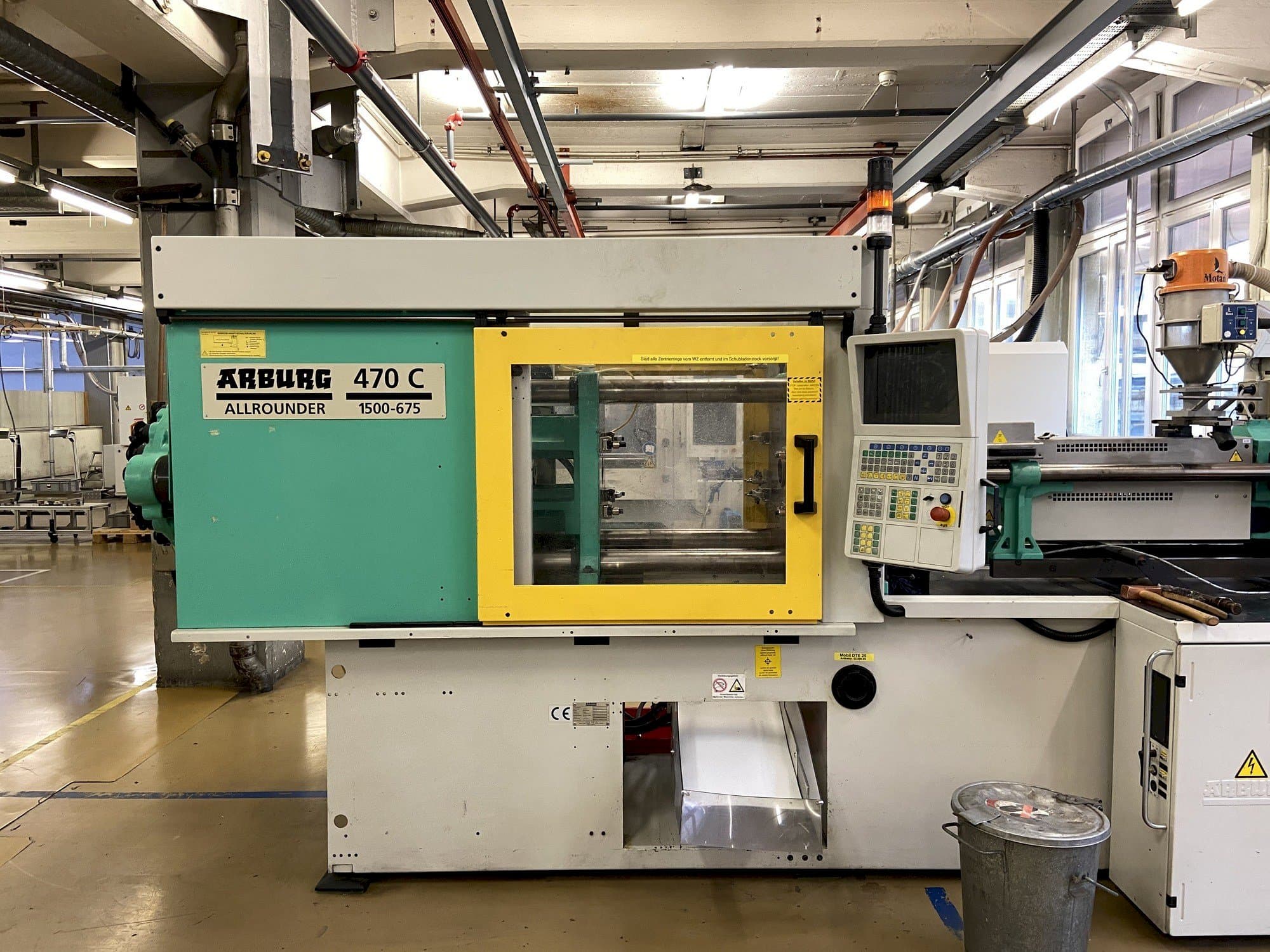

This Arburg 470C 1500-675 Injection Moulding Machine was manufactured in the year 2003. It has been operative for 43858 hours. This machine is capable of operating with a clamping force of 1600 kN.
Overview
- brand: Arburg
- year: 2003
- MODEL: 470C 1500-675
- production hours: 43858
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Arburg 470C 1500-675
General Data
- Machine weight: 4660 kg
Injection Unit
- Screw diameter: 35 mm
- Injection pressure: 2500/2080/1720/1440 bar
- Nozzle pressure: 880 Nm
Clamping unit
- Clamping force: 1500 kN
- Opening stroke: 500 mm
- Distance between bars: 470 x 470 mm
- Size of mold platens: 650 x 650 mm
- Ejector stroke: 175 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
