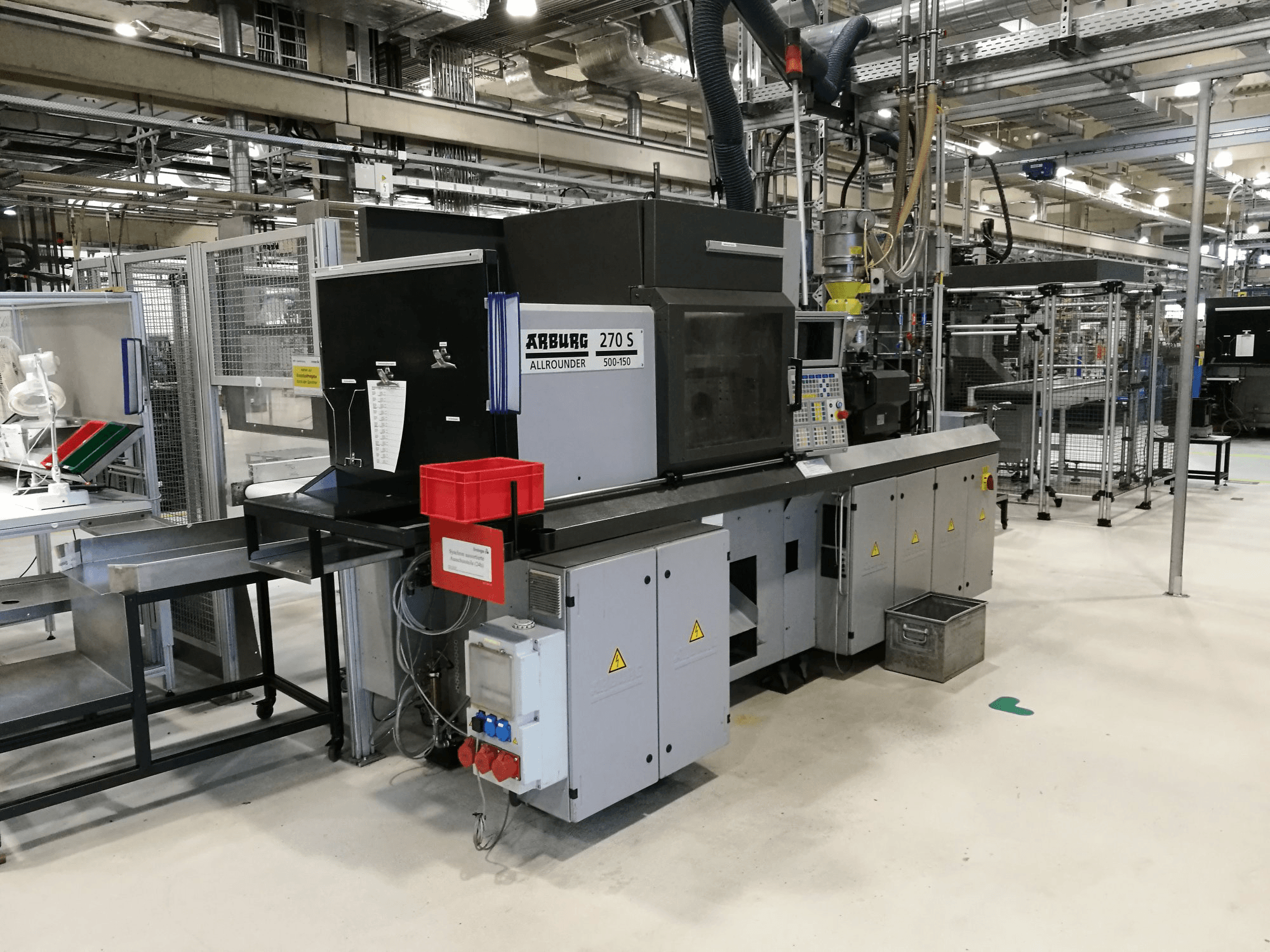

Arburg 270S 500-150 Injection Moulding Machine

Show in original language

This Arburg 270S 500-150 Injection Moulding Machine was manufactured in Germany in year 2000 and has ever since a record of 79620 production hours. With an Arburg control unit, the machine has been regularly inspected and thus stands in perfect conditions. Incorporating a hydraulic drive, the equipment has handled plastic as main material.

Overview

brand: Arburg
year: 2000
MODEL: 270S 500-150
production hours: 79620
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 270S 500-150

General Data

Measurements width: 3125 mm
Measurements depth: 1115 mm
Measurements height: 1850 mm
Machine weight: 2250 kg
Automatic cycles: 13086699
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit

Brand: ARBURG

Injection Unit

Heating capacity: 4 x 2.1 kW
Adjustable heating zones: 4
Nozzle pressure: 70 kN

Clamping unit

Clamping force: 500 kN
Opening stroke: 350 mm
Max open daylight: 575 mm
Distance between bars: 320 mm
Size of mold platens: 472 mm
Ejector stroke: 125 mm
Ejector force for / back: 30 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 22 kVA
Oil tank: 160 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
