Anayak V-1800 Milling machine

Show in original language

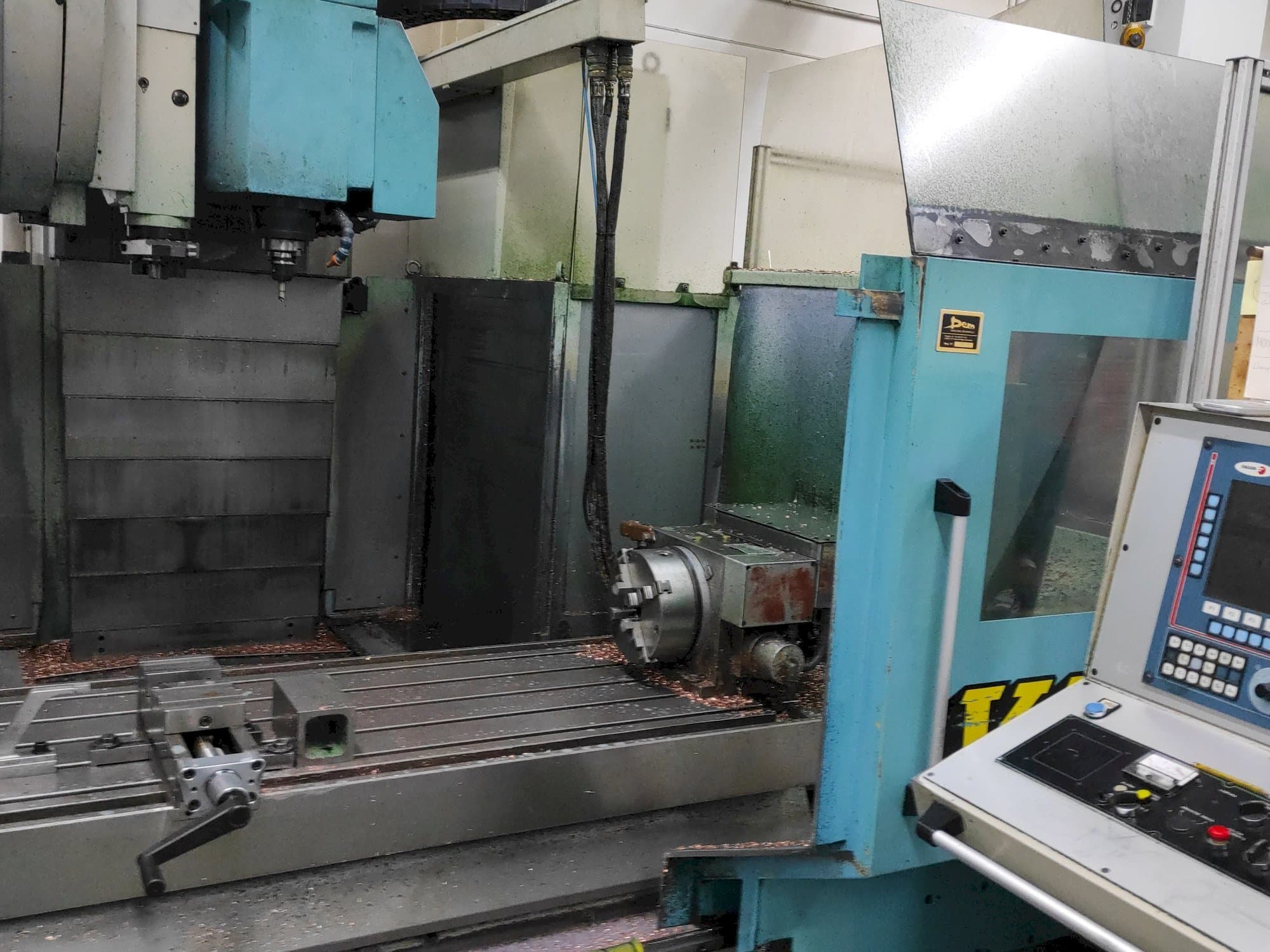

This Anayak V-1800 Milling machine was manufactured in the year 2001 in Spain. It is equipped with a Fagor 8055 control unit and has 4 axis. The machine has a spindle speed of 60-5000 rpm.

Overview

brand: ANAYAK
year: 2001
MODEL: V-1800
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - ANAYAK V-1800

Control Unit

Model: 8055
Brand: FAGOR

Main drive

Spindle speed range: 60-5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1800 mm
Outer width: 700 mm
Number of tslots: 5
Distance between: 120 mm
Table load: 3000 kg

Tools

Slots in storage: 24
Type of tool holder: ISO 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
