ANAYAK PERFORMER 2000 Milling machine

Show in original language

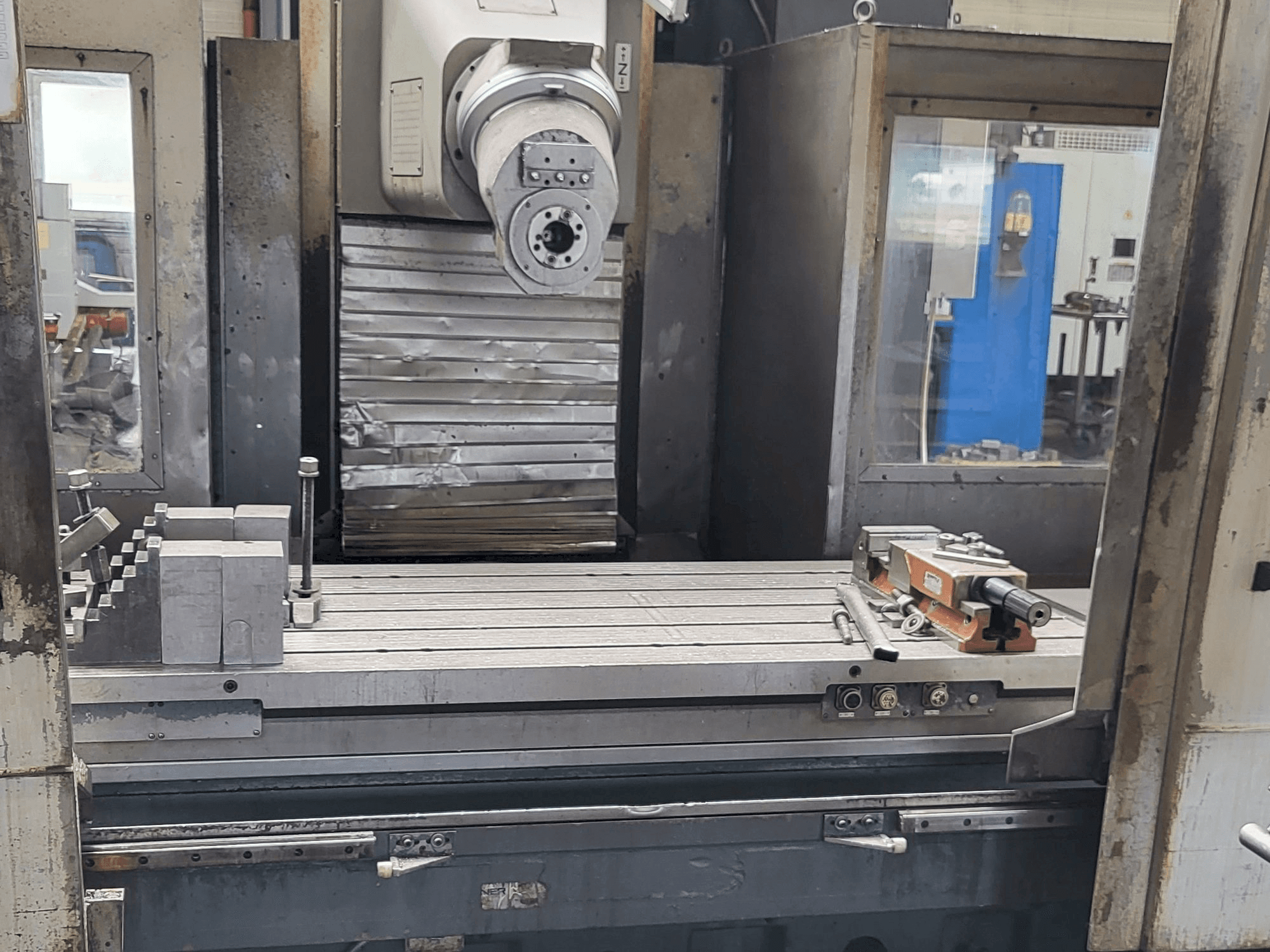

This ANAYAK PERFORMER 2000 Milling machine was manufactured in the year 2007 in Spain. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 3+2 axis. The machine has a spindle speed of 60-3000 rpm.

Overview

brand: ANAYAK
year: 2007
MODEL: PERFORMER 2000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ANAYAK PERFORMER 2000

General Data

Measurements width: 5500 mm
Measurements depth: 4000 mm
Measurements height: 2900 mm
Machine weight: 14000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 60-3000 1/MIN
Spindle motor power: 24/38kW
Tool taper: SO 50 to DIN 69871-AD
Number of axis: 3+2

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1100 mm

Table

Outer length: 2200 mm
Outer width: 850 mm
Table load: 5000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
