➤ Used ANAYAK ANAKMATIC-7 | Vertical Machining Center

Show in original language

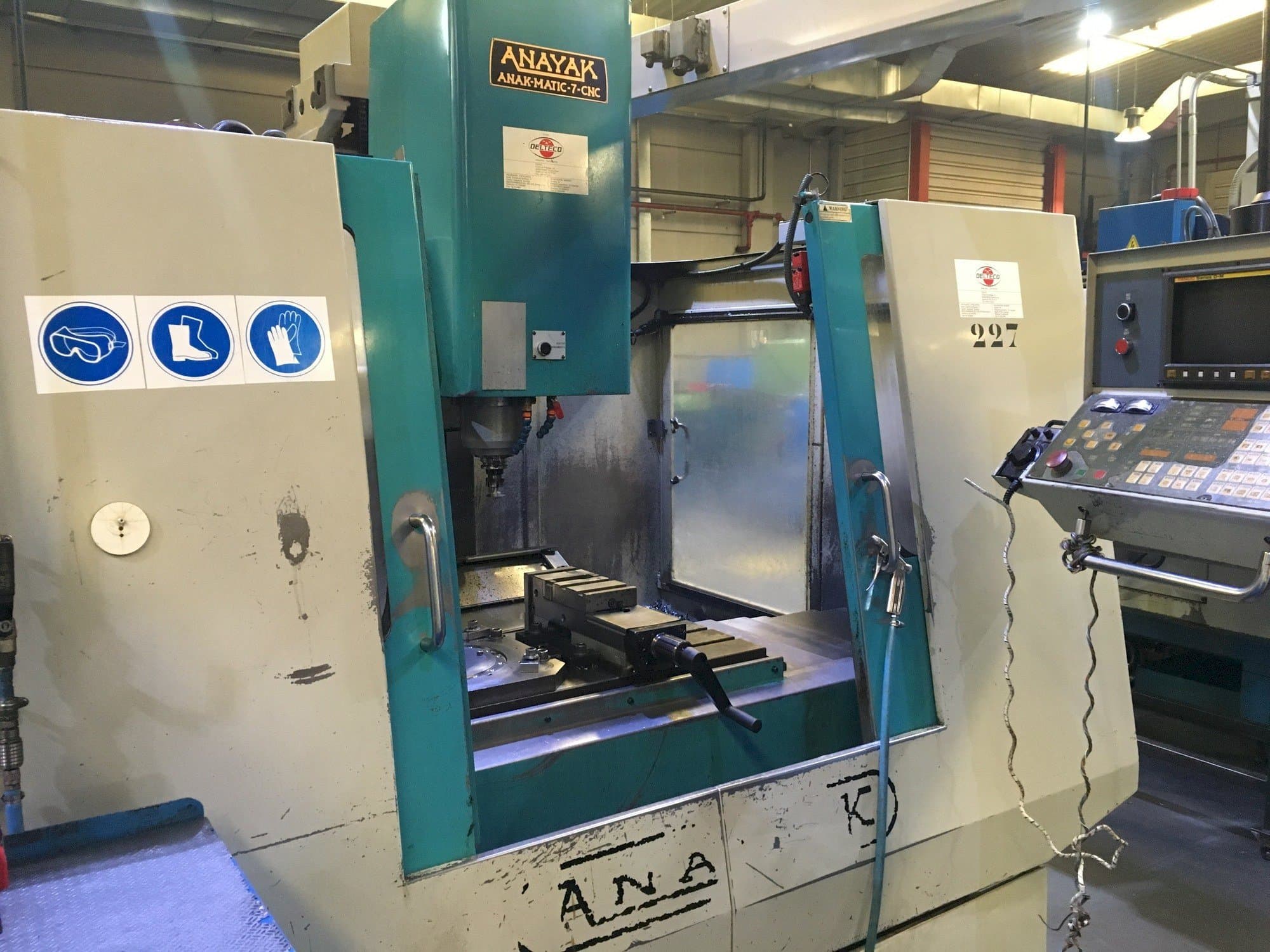

This ANAYAK ANAKMATIC-7 Vertical Machining Center was built in the year 1998 in Spain. It is equipped through a FANUC SERIES O-M control unit. This machine can work with a spindle speed up to 6000 rpm. It is in good condition.

Overview

brand: ANAYAK
year: 1998
MODEL: ANAKMATIC-7
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - ANAYAK ANAKMATIC-7

General Data

Measurements width: 3000 mm
Measurements depth: 2400 mm
Measurements height: 2525 mm
Machine weight: 6000 kg

Control Unit

Model: SERIES O-M
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 60-6000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 505 mm

Workpiece

Workpiece x: 800 mm
Workpiece y: 450 mm
Workpiece z: 505 mm
Workpiece weight: 500 kg

Table

Outer length: 900 mm
Outer width: 425 mm

Tools

Slots in storage: 20
Max weight: 6 kg
Max tool diameter: 150 mm
Max tool length: 250 mm

Media

Main electronic connection: 330 V
Power consumption: 15 kVA

Additional Information

Machine history

Industries: Automotion

Machine Benefits

Qualitative Machine Benefits:
- - Good status
- - It has had a weekly and exhaustive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
