ANAYAK ANAK-MATIC 10 Vertical Machining Center

Show in original language

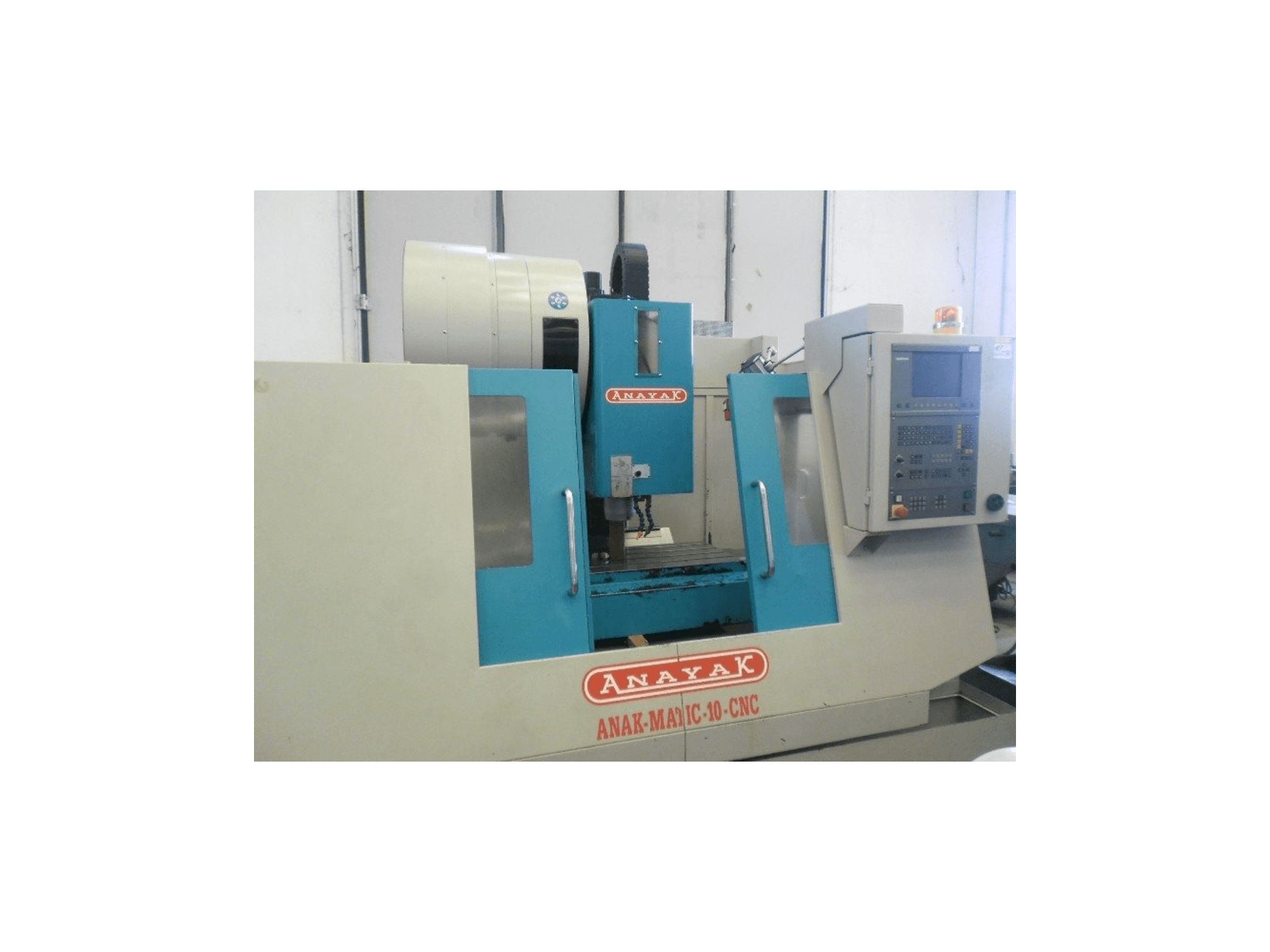

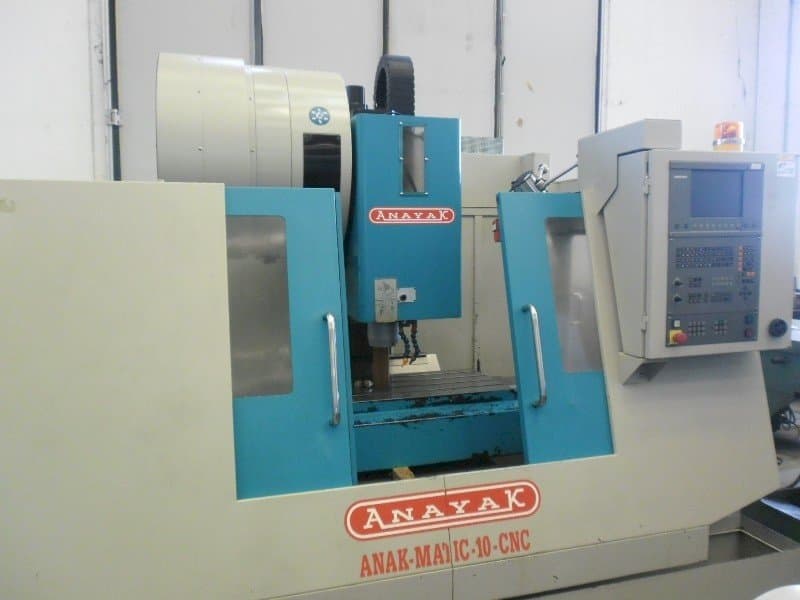

This ANAYAK ANAK-MATIC 10 Vertical Machining Center was built in the year 2002 in Spain. It is operated through a CNC HEIDENHAIN TNC 410 control unit and has 3 axis. The machine has a spindle speed of 6000 rpm. The machine is in very good condition.

Overview

brand: ANAYAK
year: 2002
MODEL: ANAK-MATIC 10
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - ANAYAK ANAK-MATIC 10

General Data

Machine weight: 5000 kg

Control Unit

Model: TNC 410
Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 7.5 kw
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 505 mm

Table

Outer length: 1150 mm
Outer width: 475 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle attachment iso 40
- - Total absorbed power 15 kva
- - Tool change 24 pos
- - Chip conveyor
- - Roller guides

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
