GINDUMAC
Products
Sheet Metal Machinery

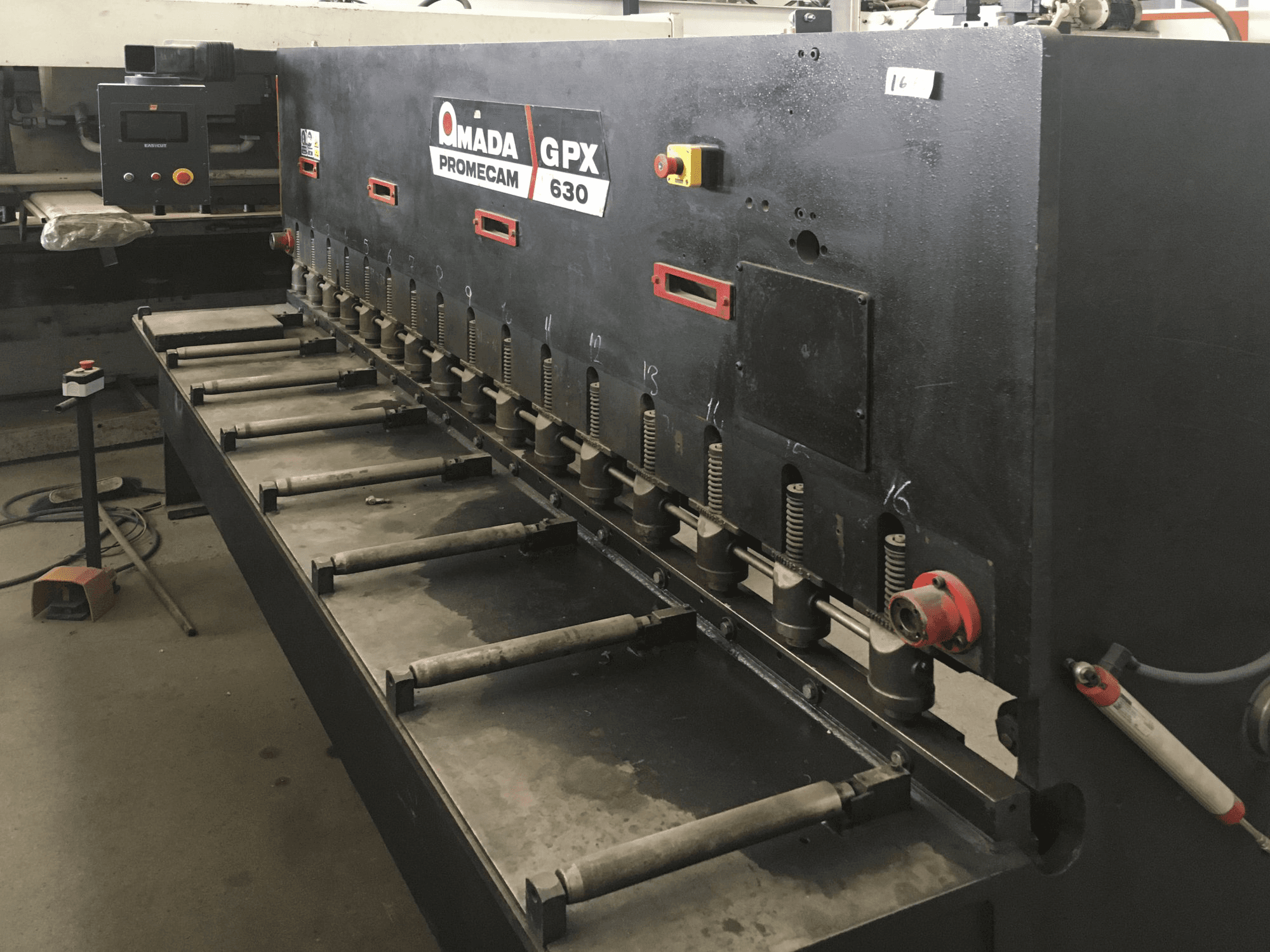

AMADA GPX 630 Shearing Machine

Show in original language

This AMADA GPX 630 Shearing Machine was made in 1997 in France and is operated through a brand new and modern STEP AUTOMATION EASYCUT Control unit. With a shearing force of 197 kN, this machine has mainly worked with steel sheets between 2-6 mm of thickness during the past. This model stands out due to its automatic cutting angle adjustment and blade cleaning, guaranteing a high cutting quality. Beside the control unit, a new back support servo, a new encoder and a electric panel were installed to the machine.

Overview

brand: AMADA
year: 1997
MODEL: GPX 630
application type: Shearing
Location: Turkey
machine type: Hydraulic Shearing Machine
availability: Sold

Technical Information - AMADA GPX 630

General Data

Measurements width: 3750 mm
Measurements depth: 2000 mm
Measurements height: 1850 mm
Machine weight: 6500 kg

Control Unit

Model: EASYCUT

Main drive

Shearing force: 197 kN
Stroke: 160 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 6 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 5.5 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
