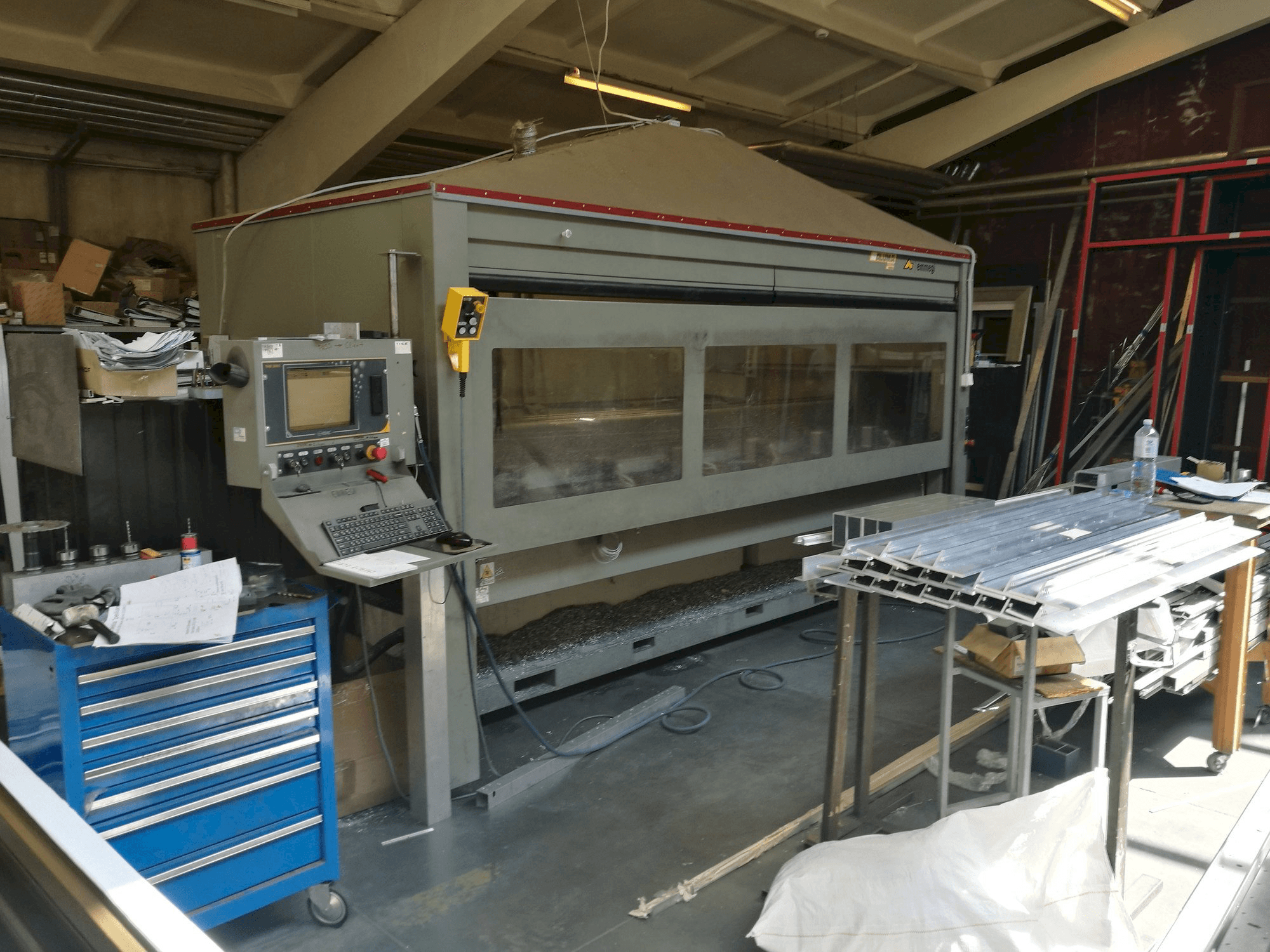

Aluma Phantomatic T4 A Milling Machine

Show in original language

This Aluma Phantomatic T4 A Milling Machine made in 2007 in Poland. It has a production history of approximately 11000 working hours since then. It is operated through a ISAC SAB 2001 E control unit. This machine counts with a spindle speed up to 18000 rpm. During the past, it has mainly worked with aluminium up to 195 mm of thickness.

Overview

brand: Aluma
year: 2007
MODEL: Phantomatic T4 A
production hours: 11000
application type: Milling
Location: Lithuania
machine type: Gantry Milling Machine
availability: Sold

Technical Information - Aluma Phantomatic T4 A

General Data

Measurements width: 6040 mm
Measurements depth: 2290 mm
Measurements height: 2175 mm
Machine weight: 1950 kg

Control Unit

Model: SAB 2001 E
CNC main language: English

Main drive

Spindle speed range: 500-18000 1/MIN

Movement

X-AXIS Movement: 3400 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece drm: 180 mm
Workpiece x: 3350 mm
Workpiece y: 285 mm
Workpiece z: 195 mm

Table

Outer length: 6800 mm
Outer width: 285 mm

Tools

Slots in storage: 6
Max tool length: 90 mm

Media

Main electronic connection: 400 V / 3 phases / 50 Hz

Additional Information

Machine history

Material type: Aluminium
Material thickness: 195 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
